RMStator Generator Stator RM01083
Customer Ratings
RMStator Generator Stator RM01083
RMStator Generator Stator RM01083

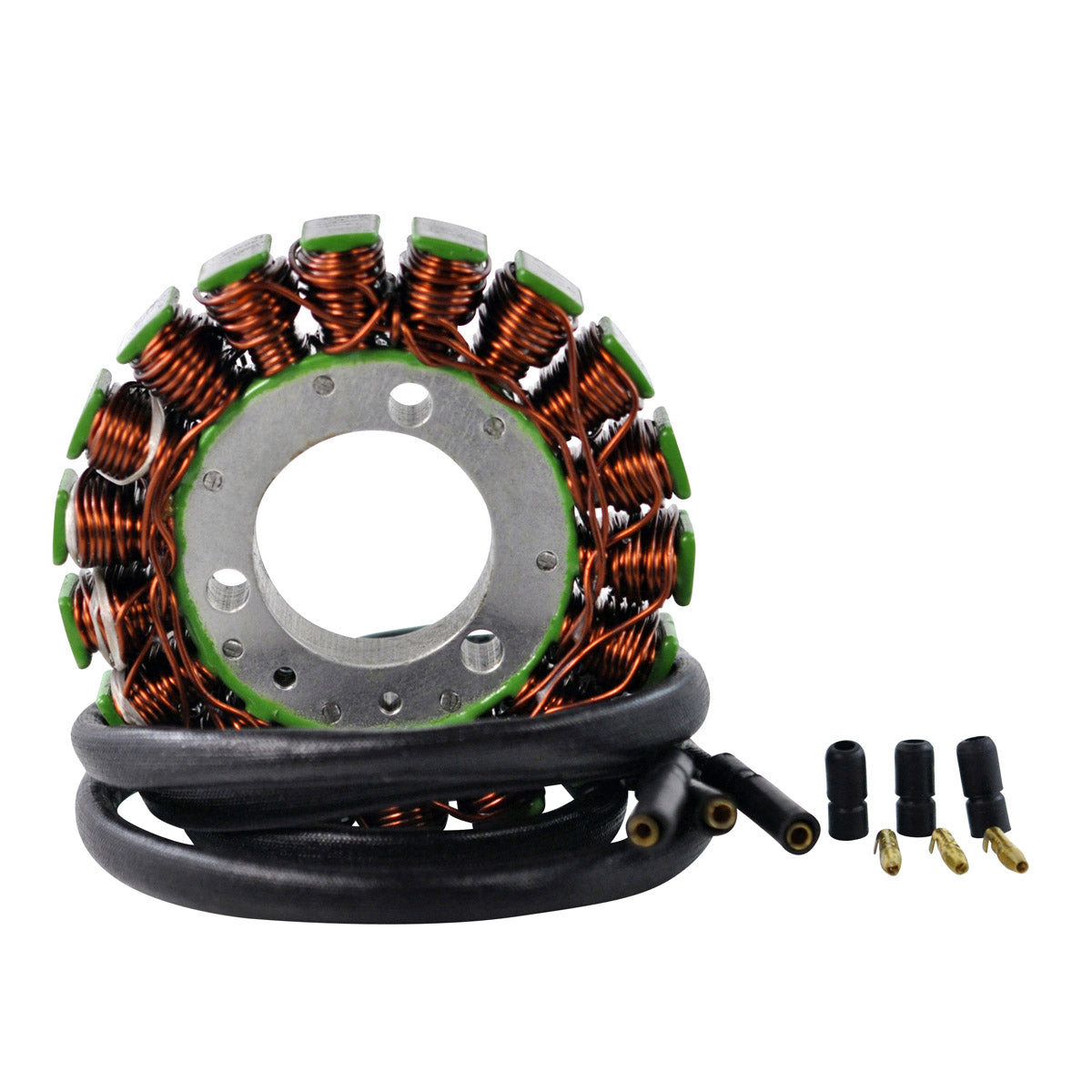

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 37 mm
Exterior diameter : 102 mm
Thickness : 18 mm
Length of wires stator to grommet : 240 mm
Length of wires grommet to plug : 800 mm
Other specifications :
Number of wires : 3
Number of plugs : 3
Number of pins : 3
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01083
Fitment:
- 1978-1980 Suzuki GS1000
- 1978-1979 Suzuki GS1000C
- 1980 Suzuki GS1000E
- 1978-1979 Suzuki GS1000EC
- 1980-1981 Suzuki GS1000G
- 1980-1981 Suzuki GS1000GL
- 1978-1979 Suzuki GS1000N
- 1980 Suzuki GS1000S
- 1980-1983 Suzuki GS1100E
- 1982-1983 Suzuki GS1100ES
- 1980-1984 Suzuki GS1100G Cruiser
- 1982-1984 Suzuki GS1100GK Tourer
- 1982-1983 Suzuki GS1100GL
- 1980 Suzuki GS1100LT
- 1983-1986 Suzuki GS1150ES3
- 1984-1985 Suzuki GS700E
- 1984-1985 Suzuki GS700ES
- 1983 Suzuki GS750E
- 1983 Suzuki GS750ES
- 1980 Suzuki Katana 1000 GSX-S1000S
- 1983 Suzuki XN 850
Note: Image is for reference only, actual product may vary slightly.
