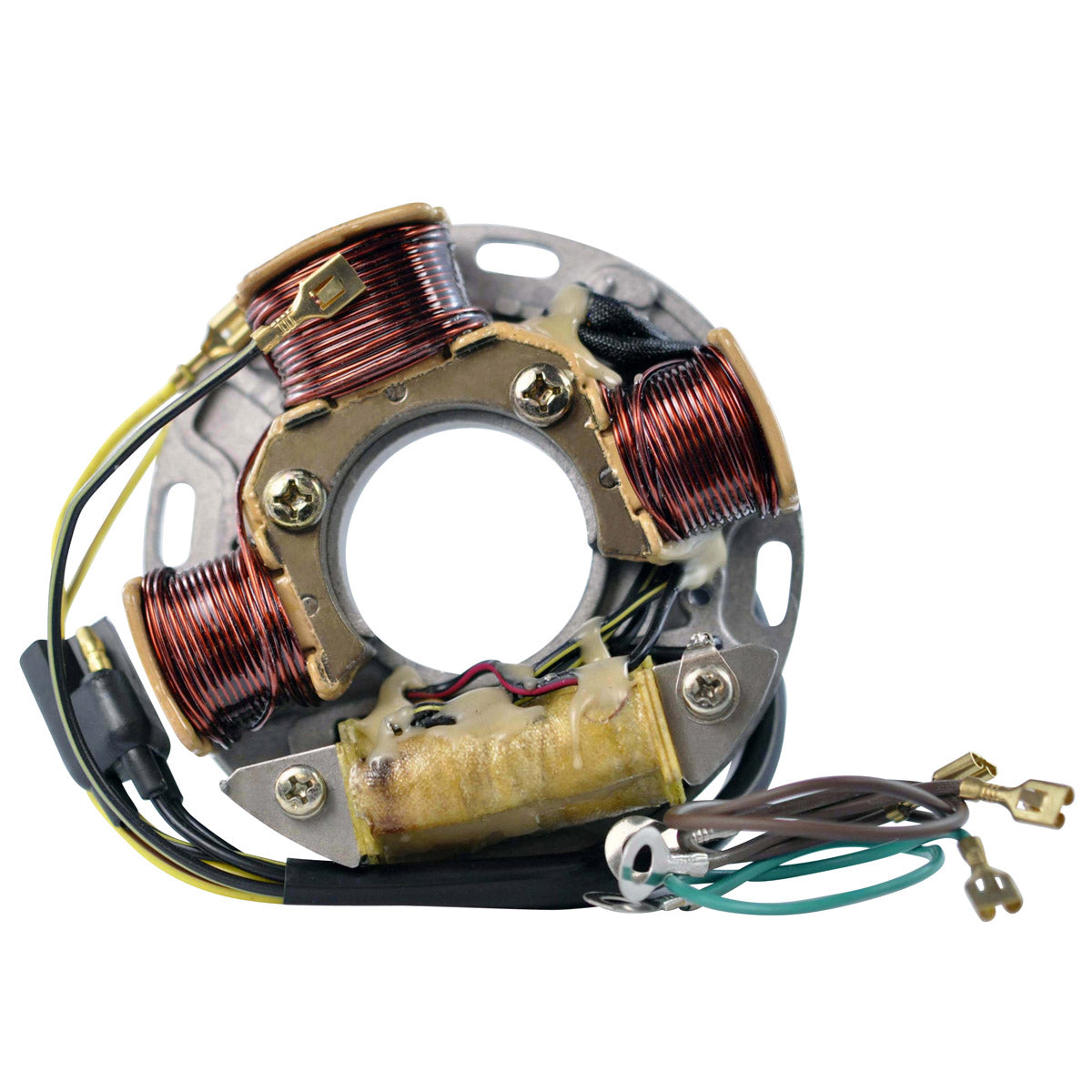

RMStator Stator RM01094
Customer Ratings
RMStator Stator RM01094
RMStator Stator RM01094
Brand new stator
- You must re-install your original connector and grommet (see picture)
- Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Back Plate included
- All shipped products are tested
**With our 15 years experience we would advise:
Before purchasing our replacement stator please compare the picture from our add to your original part.
With these older sleds sometimes the motor or part has been swapped out, the best way to confirm compatibility is with a visual match.
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter : 40 mm
Exterior diameter: 108 mm
Thickness: 10 mm
Harness length stator to connectors: 225 mm
Other specifications:
Number of wires: 6
Number of plugs: 4
Number of pins: 6
Wire to wire resistance:
Alternator: Yellow to Yellow/Brown = 0.4 ohms +/-20%
Source: Black to Black/Yellow = 126 ohms +/-20%
Source 2: Black to Black/Red = 122 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01094
Fitment:
- 1991 Ski-doo Citation 250 Carb F/C
- 1989-1990 Ski-doo Formula Mach 1 583 Carb L/C
- 1991 Ski-doo Formula Mach 1 X 617 Carb L/C
- 1992 Ski-doo Formula Mach 1 XTC 617 Carb L/C
- 1992-1993 Ski-doo Formula Plus X 583 Carb L/C
- 1989 Ski-doo Mach 1 600 Carb L/C
- 1992 Ski-doo Mach 1 600 Carb L/C
- 1992 Ski-doo Mach 1 617 Carb L/C
- 1991 Ski-doo Tundra 250 Carb F/C
Note: Image is for reference only, actual product may vary slightly.
