RMStator Generator Stator RM01096
RMStator Generator Stator RM01096
Brand new generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pickup coil included
- Connector included
- Back Plate included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 36.6 mm
Exterior diameter: 126.6 mm
Thickness: 46 mm
Length of wires stator to plug: 270 mm
Other specifications:
Number of wires: 8
Number of plugs: 3
Number of pins: 8
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%
Pickup: Black/White to White/Red = 27.7 ohms +/-20%
Source: Black/White to Green = 1.124k ohms+/-20%
Black/White & Brown are grounded
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01096
Fitment:
- 1991-1993 Arctic Cat Cheetah 440 Carb L/C
- 1991-1994 Arctic Cat Cougar 440 Carb L/C
- 1993-1994 Arctic Cat Cougar Mountain Cat 440 Carb L/C
- 1996 Arctic Cat Jag 440 Carb L/C
- 1990-1992 Arctic Cat Pantera 440 Carb L/C
- 1996 Arctic Cat Panther 440 Carb L/C
- 1990-1993 Arctic Cat Prowler 440 Carb L/C
- 1991-1992 Arctic Cat Prowler Mountain Cat 440 Carb L/C
- 1997-2000 Arctic Cat ZL 440 Carb L/C

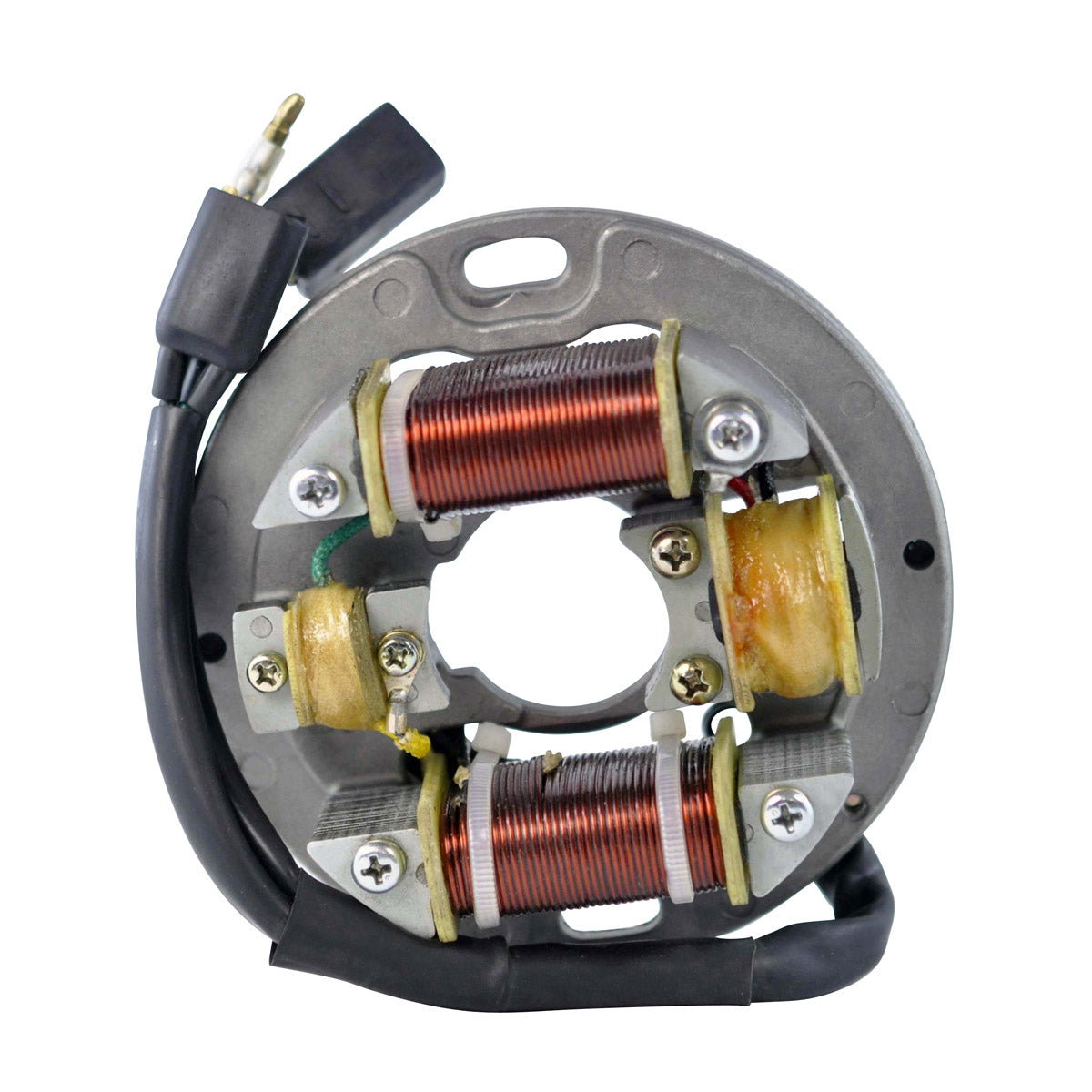

Note: Image is for reference only, actual product may vary slightly.
