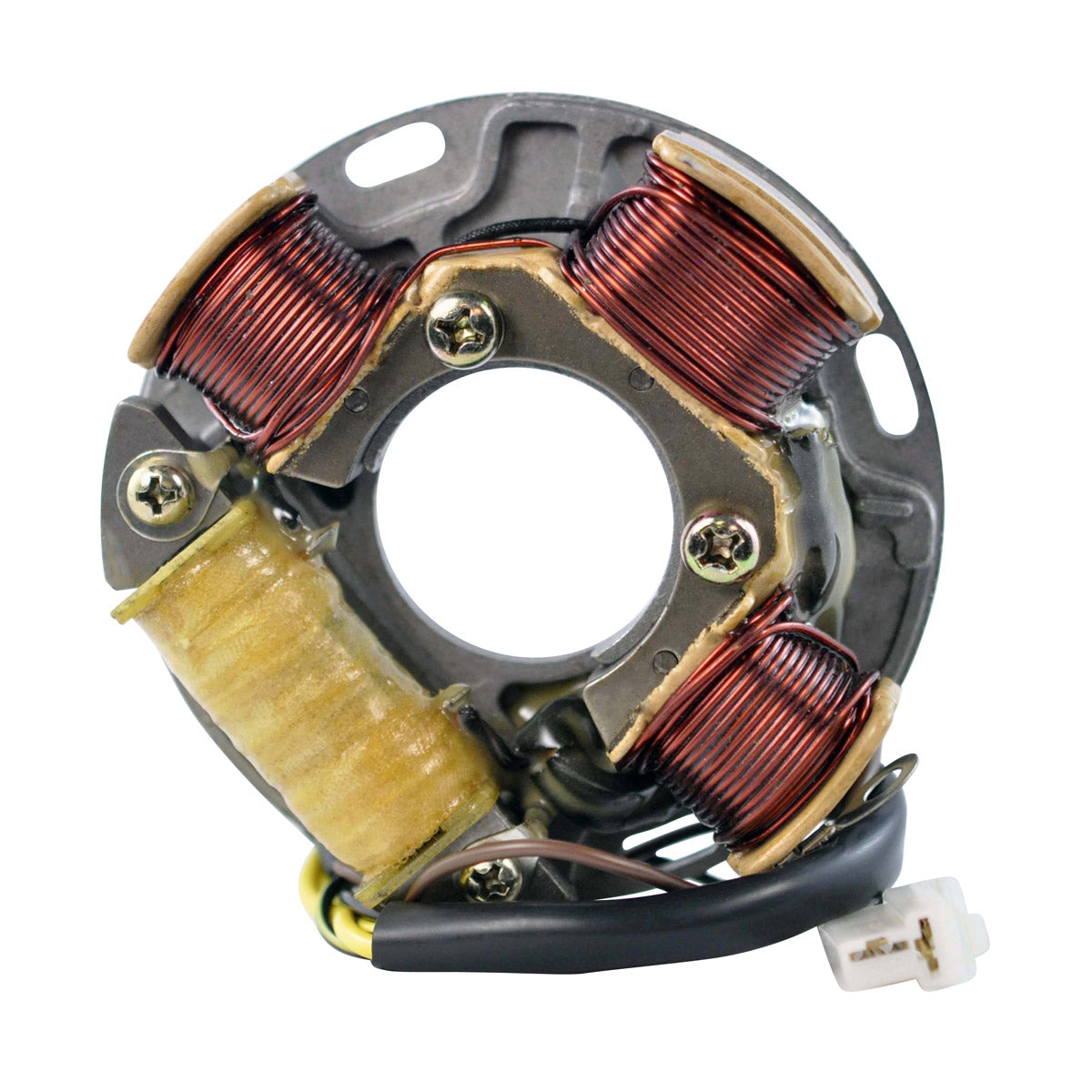

RMStator Stator RM01099

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius
• Connector included
• Back Plate included
• All product shipped are tested

Our 15 years experience advise to:
Before purchasing our replacement stator please compare the picture from our add to your original part.
With these older sleds sometimes the motor or part has been swapped out, the best way to make sure is visually.

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 43 mm
Exterior diameter : 108 mm
Thickness : 18 mm
Length of wires : 200 mm

Wire to wire resistance :

Alternator : Yellow To Yellow/Brown = 0.4 ohms +/-20%
Source : Black to Black/Red = 78 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01099

Fitment:

• 1990 Ski-doo Alpine 508 Carb F/C
• 1987-1990 Ski-doo Alpine II 503 Carb F/C
• 1987-1989 Ski-doo Citation 250 Carb F/C
• 1987 Ski-doo Escapade 503 Carb F/C
• 1987-1989 Ski-doo Formula MX 467 Carb L/C
• 1989 Ski-doo Formula Plus 521 Carb L/C
• 1987-1989 Ski-doo Formula Plus 537 Carb L/C
• 1988-1990 Ski-doo Nordik 50 Carb F/C
• 1988-1990 Ski-doo Nordik 60 Carb F/C
• 1989-1990 Ski-doo Safari Cheyenne 503 Carb F/C
• 1989-1990 Ski-doo Safari Citation 250 Carb F/C
• 1989 Ski-doo Safari Escapade 503 Carb F/C
• 1989 Ski-doo Safari Saga 377 Carb F/C
• 1989-1990 Ski-doo Safari Scout 377 Carb F/C
• 1989 Ski-doo Safari Voyageur 503 Carb F/C
• 1987-1988 Ski-doo Safari 377 Carb F/C
• 1987-1988 Ski-doo Safari 377 F Carb F/C
• 1987-1988 Ski-doo Safari 377E Carb F/C
• 1989 Ski-doo Safari 377E Scout Carb F/C
• 1988 Ski-doo Safari 503 Carb F/C
• 1988 Ski-doo Safari 503R Carb F/C
• 1987 Ski-doo Skandic 377R F/C
• 1987 Ski-doo Skandic 503 Carb F/C
• 1987 Ski-doo Skandic II 503R SLT Carb F/C
• 1987 Ski-doo Stratos 503 Carb F/C
• 1987-1990 Ski-doo Tundra 250 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
