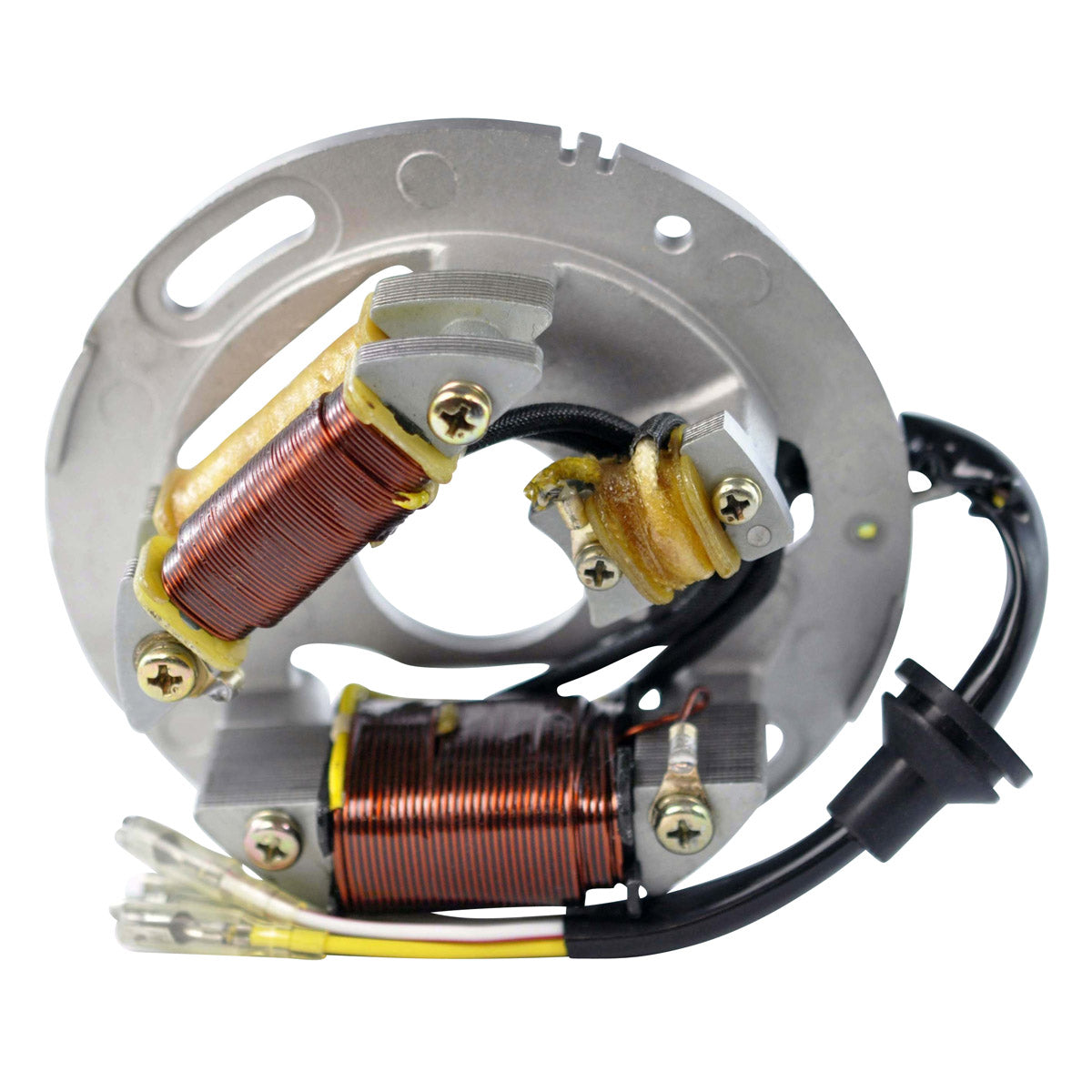

RMStator Stator RM01102
RMStator Stator RM01102
Brand new stator
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- The quality exceeds the OEM equipment
- Rubber grommet included
- Back Plate included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 127 mm
Thickness: 22 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 80 mm
Other specifications:
Number of wires: 6
Number of plugs: 6
Number of pins: 6
Number of poles: 3
Wire to wire resistance:
Alternator: Yellow/Balck to Black = 1 ohms +-20%
Alternator: Yellow to Black = 0.5 ohms +-20%
Alternator: to ground = O.L
Pickup: White to Black = 0.5 ohms +-20%
Pickup: White/Red to Black = 17.4 ohms +-20%
Source: Brown to Black = 1.4 K ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01102
Fitment:
- 1986-1989 Yamaha Phazer PZ480
- 1990-1993 Yamaha Phazer II PZ480
- 1990-1993 Yamaha Phazer II LE PZ480E
- 1993 Yamaha Phazer II ST PZ480ST
- 1992-1993 Yamaha Venture GT VT480GT
- 1986-1990 Yamaha XLV XL540
Note: Image is for reference only, actual product may vary slightly.
