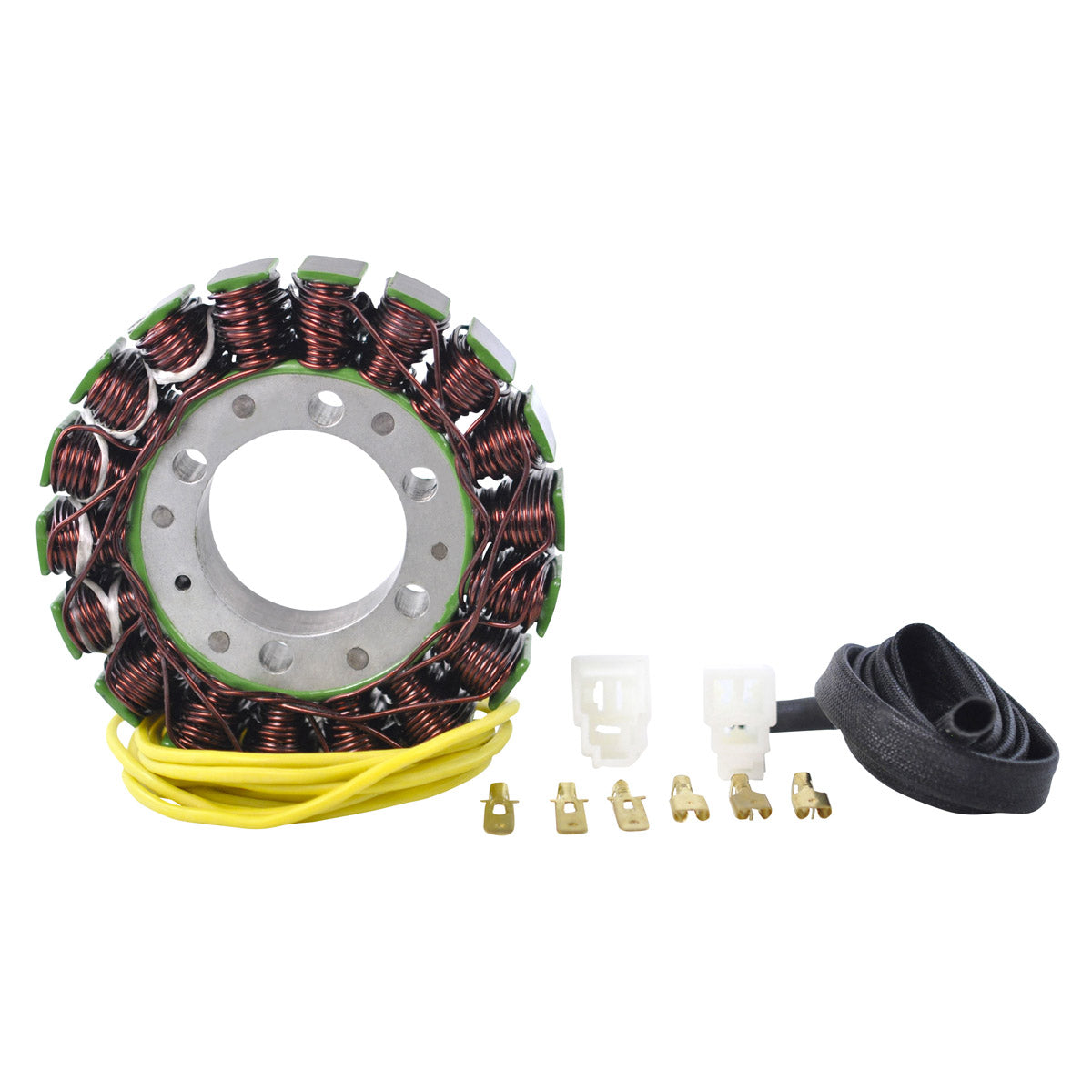

RMStator Stator RM01122

Brand new stator

• You must re-install your original grommet and the new connector (see picture).
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 24 mm

Other specifications :

Number of wires : 3

Wire to wire resistance :

Alternator : Between each Yellow = 0.9 ohms+/-20%
Alternator : Yellow to Ground =?O.L. ON DISPLAY

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01122

Fitment:

• 2002-2007 Honda CB900F 919
• 1997-1998 Honda CBR1100XX
• 1994-1997 Honda Interceptor 750 VFR750F
• 1998-1999 Honda Interceptor 800 VFR800
• 1994-2003 Honda V45 Magna VF750C

Note: Image is for reference only, actual product may vary slightly.
