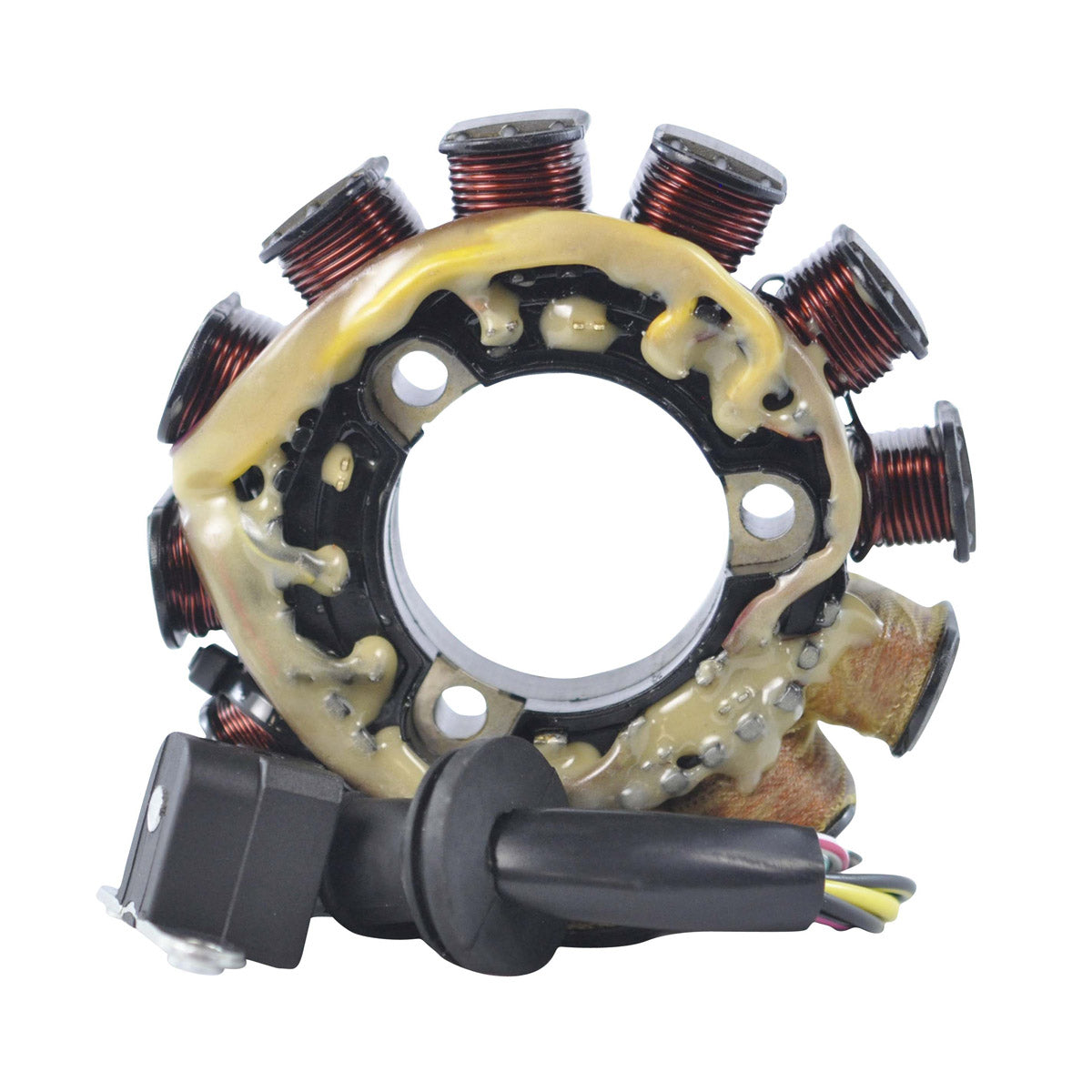

RMStator Stator RM01132
RMStator Stator RM01132
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- The quality exceeds the OEM equipment
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 15 mm
Length of wires stator to grommet : 95 mm
Length of wires grommet to plug : 160 mm
Length of pickup coil's wire to grommet : 140 mm
Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to White = 0.04 ohms +/- 20%
Pickup : Whte to White/Red = 225 ohms +/- 20%
Source 1 : Black to Brown/Red = 124 ohms +/- 20%
Source 2 : Brown to Black/Red = 443 ohms +/- 20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01132
Fitment:
- 1997 Yamaha Mountain Max 600 MM600
- 2000-2001 Yamaha Mountain Max 600 MM600
- 1997-2001 Yamaha Mountain Max 700 MM700
- 2000-2001 Yamaha SX600R
- 2000-2001 Yamaha SX700R
- 1999-2001 Yamaha Venture 600 VT600
- 1999-2001 Yamaha Venture 700 VT700
- 2000-2001 Yamaha VMAX 600 VX600
- 1999 Yamaha VMAX 600 ER VX600ER
- 1999 Yamaha VMAX 600 SX VX600SX
- 1998-2000 Yamaha VMAX 700 VX700
- 2000 Yamaha VMAX 700 VX700DX Deluxe
- 1999 Yamaha VMAX 700 ER VX700ER
- 1997-1999 Yamaha VMAX 700 SX VX700SX
Note: Image is for reference only, actual product may vary slightly.
