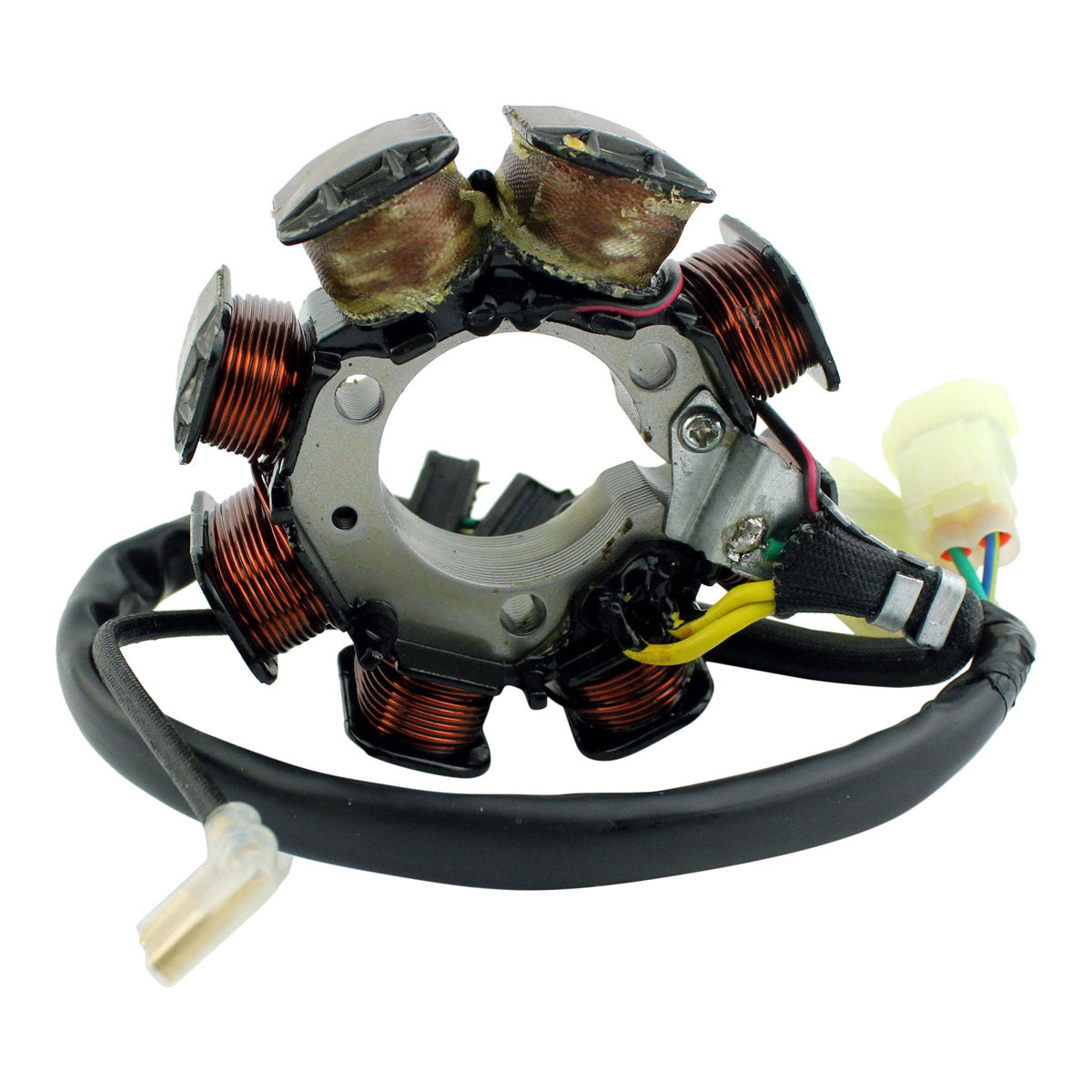

RMStator Stator RM01153
Customer Ratings
RMStator Stator RM01153
RMStator Stator RM01153
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- Pick-up coil included
- All product shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Number of wires : 5
Number of plugs : 2
Number of terminals : 5
Harness length - Stator to grommet (mm) : 92
Harness length - Grommet to plug (mm) : 250
Pick-up coil wire length - Coil to grommet (mm) : 120
Inside diameter (mm) : 35
Outside diameter (mm) : 88
Thickness (mm) : 18
Alternator resistance (Yellow to Yellow) : 0.4 ohms +/- 20%
Source 1 resistance (Black/Red to Green) : 185 ohms +/- 20%
Pick-up 1 resistance (Blue/White to Green): 280 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01153
Fitment:
- 2005-2009 Honda Recon 250 TRX250TE 2x4 ES
- 2011-2014 Honda Recon 250 TRX250TE 2x4 ES
- 2016-2020 Honda Recon 250 TRX250TE 2x4 ES
- 2005-2009 Honda Recon 250 TRX250TM 2x4
- 2011-2014 Honda Recon 250 TRX250TM 2x4
- 2016-2020 Honda Recon 250 TRX250TM 2x4
Note: Image is for reference only, actual product may vary slightly.
