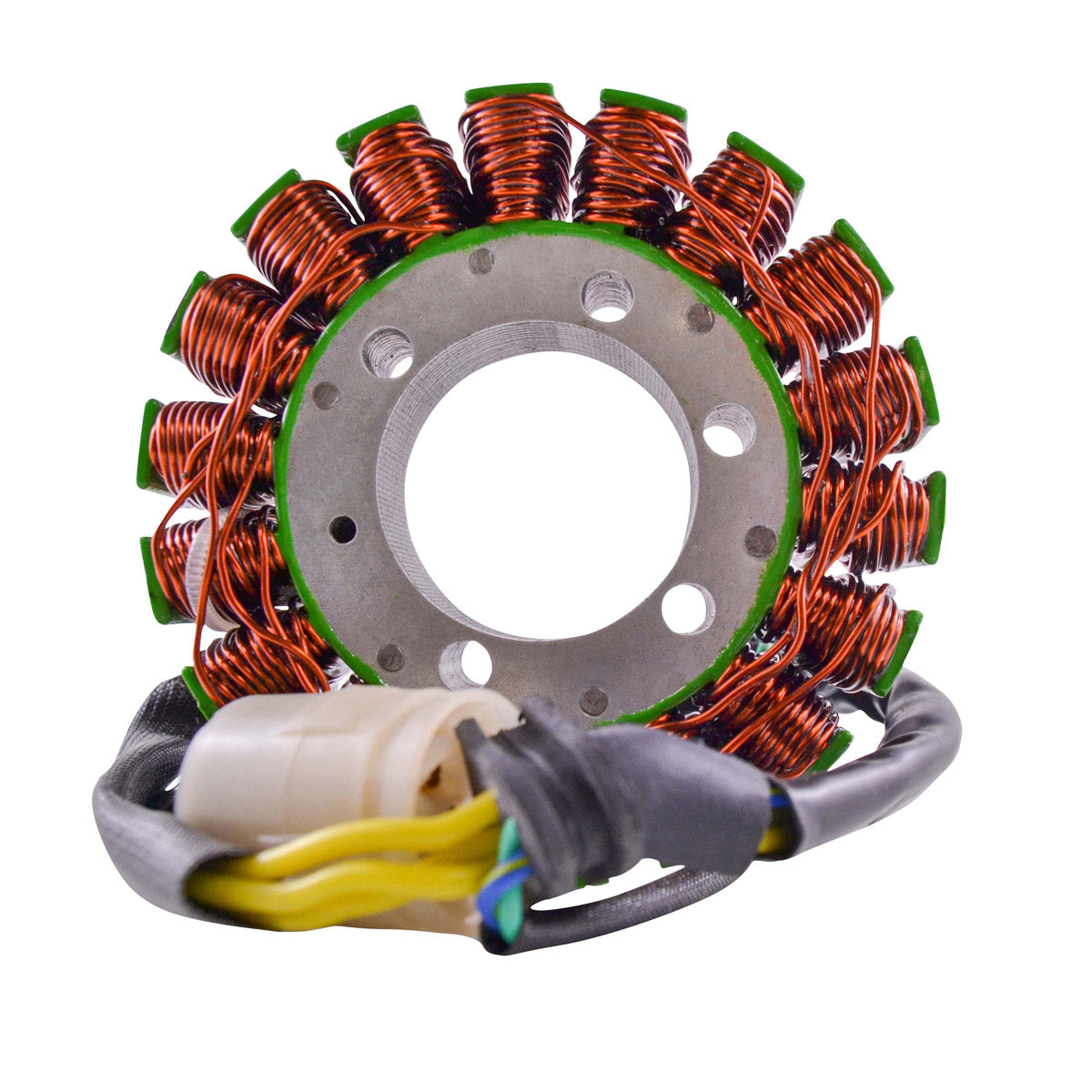

RMStator Stator RM01154
RMStator Stator RM01154
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- Pick-up coil included
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Alternator resistance (Yellow to Yellow) : 0.4 ohms +/- 20%
Pick-up 1 resistance (Blue/Yellow to Green) : 239 ohms +/- 20%
Number of wires : 5
Number of plugs : 1
Number of terminals : 5
Harness length - Stator to grommet (mm) : 130
Harness length - Grommet to plug (mm) : 270
Pick-up coil wire length - Coil to grommet (mm) : 70
Inside diameter (mm) : 41
Outside diameter (mm) : 107
Thickness (mm) : 21
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01154
Fitment:
- 2012-2013 Honda Foreman 500 TRX500FE 4x4 ES Fourtrax
- 2012-2013 Honda Foreman 500 TRX500FM 4x4 S Fourtrax
- 2012-2013 Honda Foreman 500 TRX500FPE 4x4 ES EPS Fourtrax
- 2012-2013 Honda Foreman 500 TRX500FPM 4x4 EPS Fourtrax
Note: Image is for reference only, actual product may vary slightly.
