RMStator Stator Kit With And Crankcase Cover Gasket RM01191G
Customer Ratings
RMStator Stator Kit With And Crankcase Cover Gasket RM01191G
RMStator Stator Kit With And Crankcase Cover Gasket RM01191G
YOU SAVE 15% off the items price combined, when buying a kit.

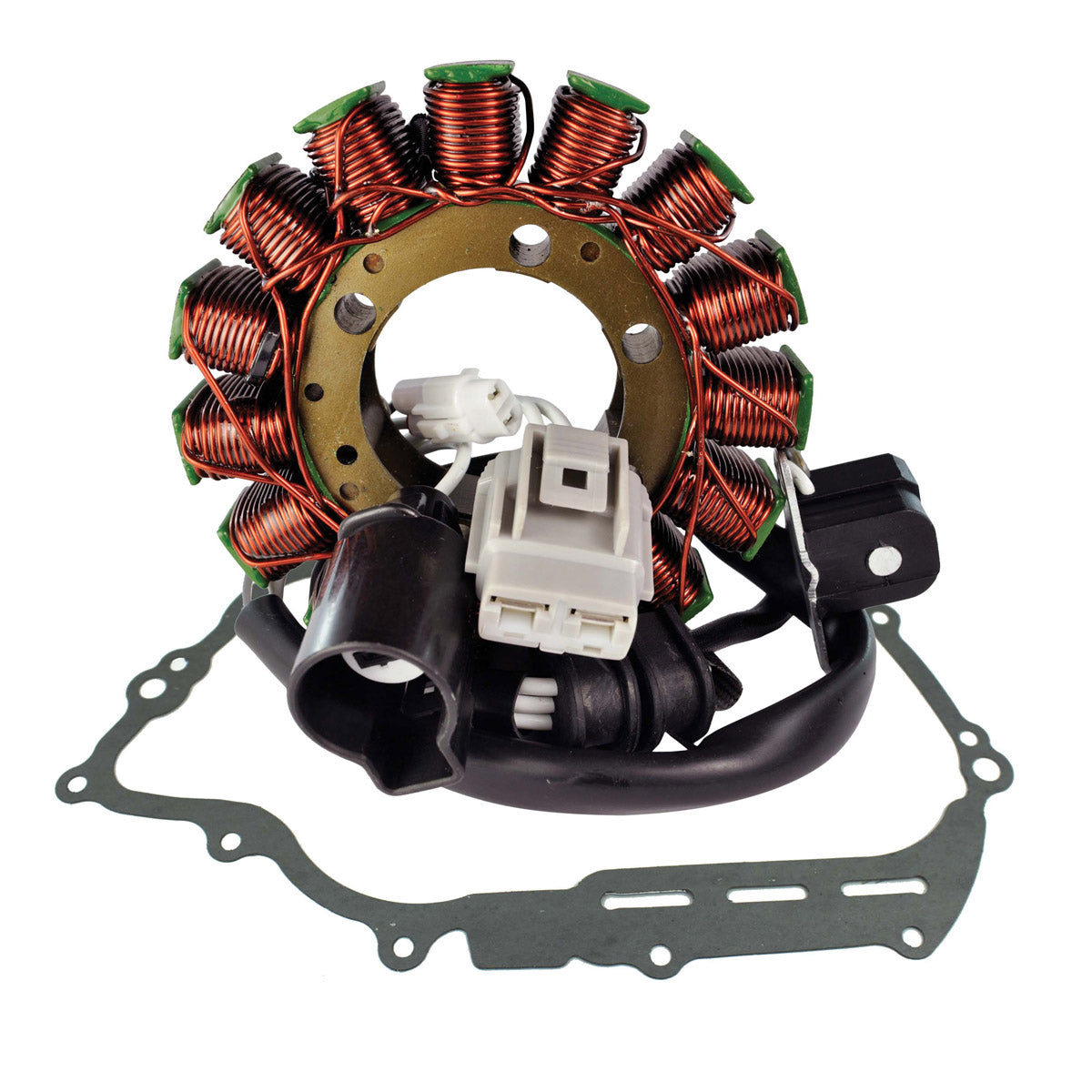

Brand new Kit Stator + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Stator:- Highest grade of lamination materials
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
Technical Data
Stator Dimensions :
Interior diameter : 41 mm
Exterior diameter : 105 mm
Thickness : 19 mm
Length of wires stator to grommet : 65 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil's wire to grommet : 65 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Wire to wire resistance :
Alternator : White to White = 0.4 ohms +/-20%
Pickup : White to Grey = 500 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01191G
Fitment:
- 2008-2009 Yamaha Rhino 700 YXR700F 4x4 FI
- 2011-2013 Yamaha Rhino 700 YXR700F 4x4 FI
- 2014-2018 Yamaha Viking 700 YXM700DH 4x4 FI
- 2015-2018 Yamaha Viking VI YXC700D 4x4
Note: Image is for reference only, actual product may vary slightly.
