RMStator Stator RM01203
Customer Ratings

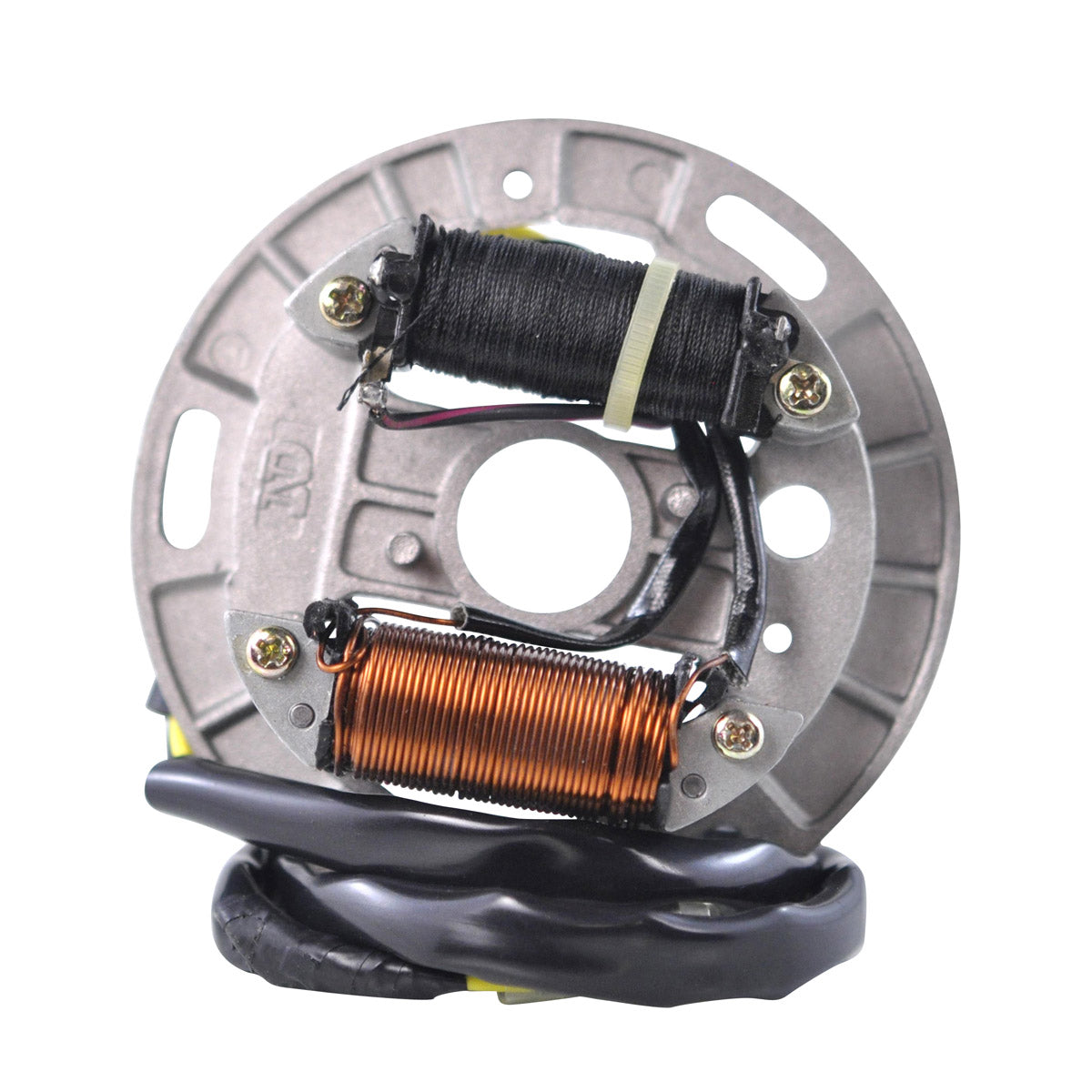

RMStator Stator RM01203
RMStator Stator RM01203
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- Back plate included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 20mm
Exterior diameter : 107mm
Thickness : 5mm
Length of wires stator to grommet : 25mm
Length of wires grommet to plug : 500mm
Other specifications :
Number of wires : 3
Number of plugs : 3
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4ohms +/-20%
Source : Black/Red to Ground = 190ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01203
Fitment:
- 2003-2006 Kawasaki KFX80
- 1987-2006 Suzuki Quadsport 80 LT80 2x4
Note: Image is for reference only, actual product may vary slightly.
