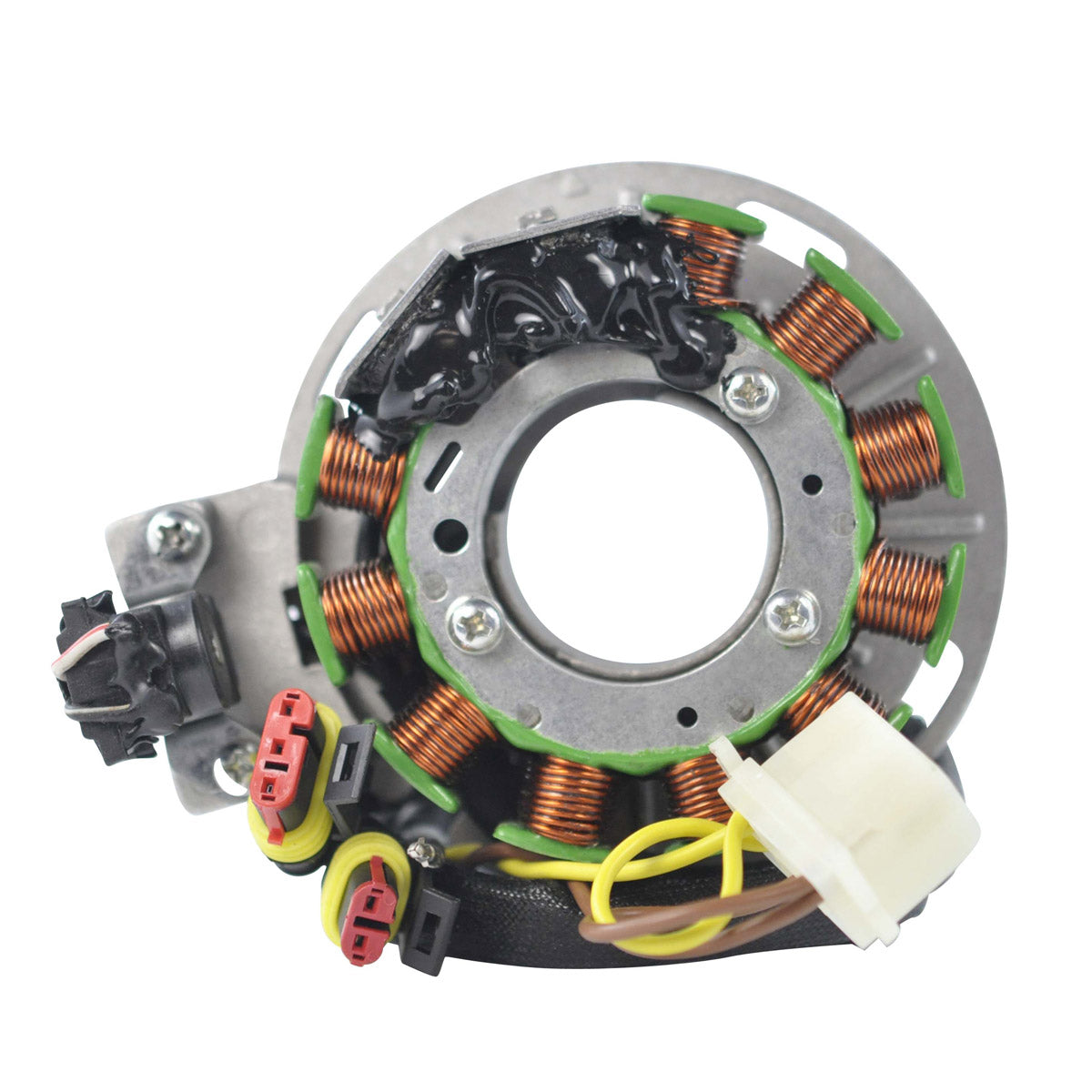

RMStator Stator RM01204

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 110 mm
Thickness : 33 mm
Length of wires stator to plug : 200 mm & 340 mm
Length of wires pickup coil to plug: 400 mm

Other specifications :

Number of wires : 8
Number of plugs : 4
Number of pins : 10

Wire to wire resistance :

Alternator : Yellow to Brown = 0.4 ohms +/-20%
Pickup : White/Red to Black/White = 244 ohms +/-20%
Source : White to Green = 25 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01204

Fitment:

• 1999 Polaris 600 SKS Carb L/C
• 2001 Polaris Classic 700 Carb L/C
• 1998-2000 Polaris RMK 600 Carb L/C
• 1997-2000 Polaris RMK 700 Carb L/C
• 1997 Polaris SKS 700 Carb L/C
• 1999-2001 Polaris SKS 700 Carb L/C
• 1999-2000 Polaris XC 500 Carb L/C
• 1996 Polaris XC 600 Carb L/C
• 1998-2000 Polaris XC 600 Carb L/C
• 1997-2000 Polaris XC 700 Carb L/C
• 1999 Polaris XC SP 500 Carb L/C
• 1999 Polaris XC SP 600 Carb L/C
• 1999-2000 Polaris XC SP 700 Carb L/C
• 1997-1999 Polaris XCR 440 Carb L/C

Note: Image is for reference only, actual product may vary slightly.
