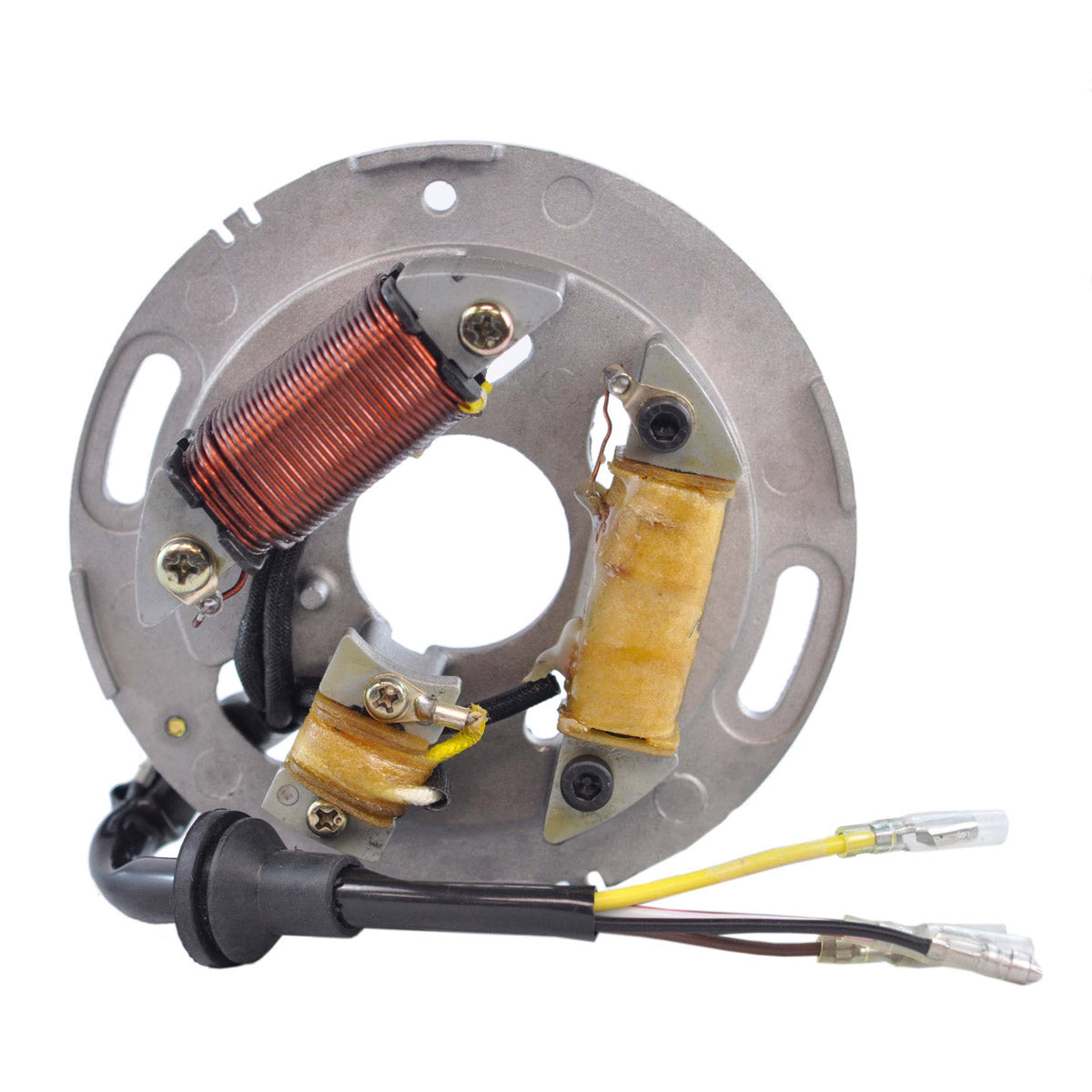

RMStator Stator RM01216

Brand new aftermarket stator

• The Enticer 340 and SRV 540 models have very similar stators through the years of production, with different number of wires and coil connections. This stator is the 4 wire version. Please compare closely to your OEM stator to be sure of a match.
• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 33 mm
Exterior diameter : 96 mm
Thickness : 21 mm
Length of wires stator to grommet : 70 mm
Length of wires grommet to plug : 90 mm
Length of pickup coil's wire to plug : 90 mm

Other specifications :

Number of wires : 4
Number of plugs : 4
Number of pins : 4

Wire to wire resistance :

Alternator : Black to Yellow = 0.4 ohms +/-20%
Pickup : Black to Red/White = 19 ohms +/-20%
Source : Black to Brown = 1400 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01216

Fitment:

• 1984-1985 Yamaha Enticer 340 ET340
• 1984-1986 Yamaha Enticer 340 ET340 LT
• 1985-1991 Yamaha SRV SR540

Note: Image is for reference only, actual product may vary slightly.
