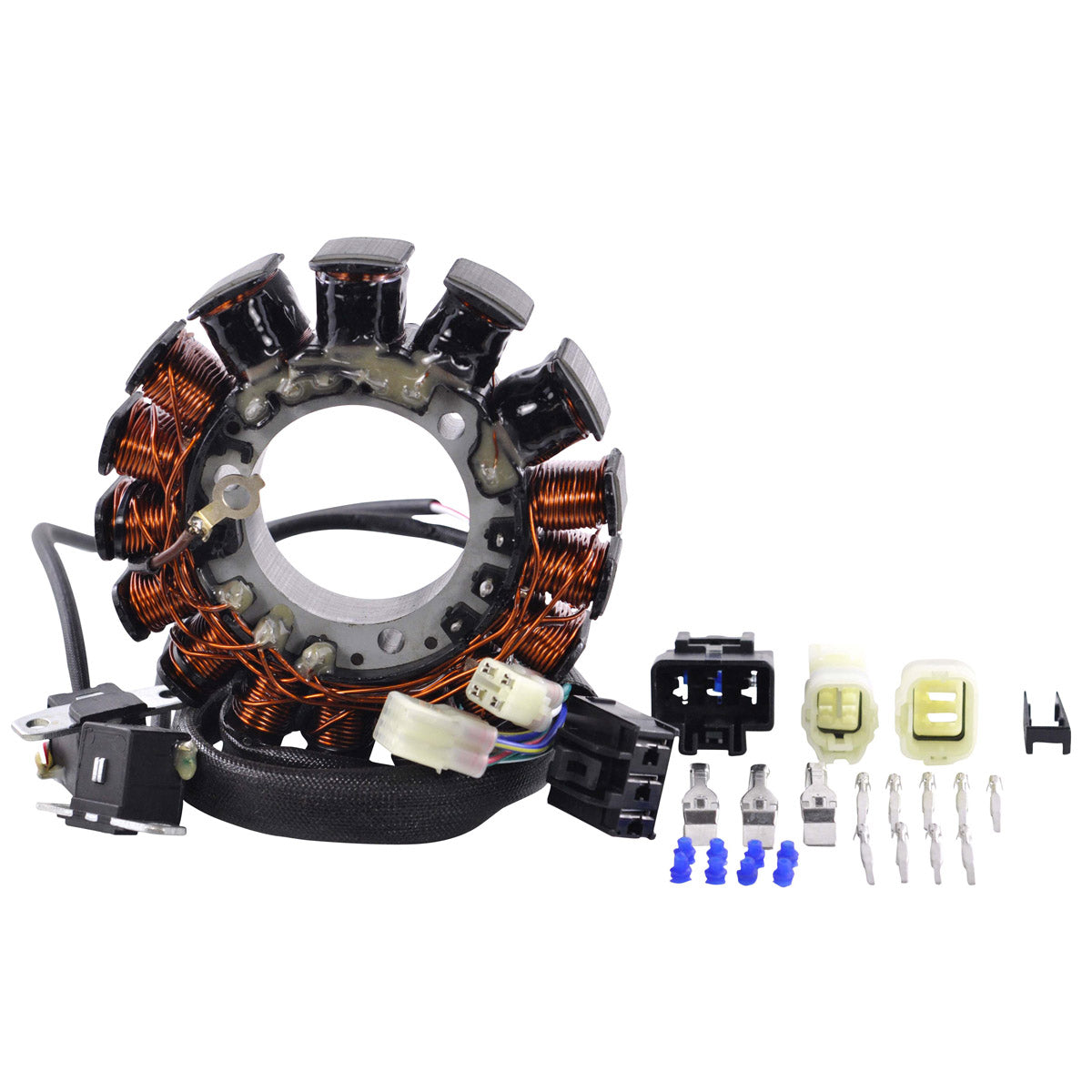

RMStator Stator RM01222

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 53 mm
Exterior diameter : 127 mm
Thickness : 21 mm
Length of wires stator to plug: 600 mm
Length of pickup coil's wire to grommet : 275 mm

Other specifications :

Number of wires : 13
Number of plugs : 3
Number of pins :13

Wire to wire resistance :

Alternator : Between each Yellow = 0.4 ohms +/-20%
Pickup : Green to White/Green = 195 ohms +/-20%
Pickup 2 : White to White/Red = 190 ohms +/-20%
Source : Green/Yellow to Brown/White = 15 ohms +/-20%
Source 2 : Green/Yellow to Green/Red = 15 ohms +/-20%
Other: Blue/Yellow to Blue/Yellow = 2.7 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01222

Fitment:

• 2007 Polaris 600 HO Cleanfire EFI L/C
• 2006 Polaris Classic 700 Carb L/C
• 2006 Polaris Classic 700 Touring Carb L/C
• 2007 Polaris Dragon 700 Cleanfire EFI L/C
• 2009 Polaris Dragon 800 EFI L/C
• 2008-2009 Polaris Dragon IQ 600 EFI L/C
• 2010 Polaris Dragon IQ 800 EFI L/C
• 2008-2010 Polaris Dragon RMK 700 163in EFI L/C
• 2008-2010 Polaris Dragon RMK 800 163in EFI L/C
• 2008-2010 Polaris Dragon Switchback 600 EFI L/C
• 2008 Polaris Dragon SwitchBack 700 EFI L/C
• 2009-2010 Polaris Dragon Switchback 800 EFI L/C
• 2006 Polaris Fusion 700 EFI L/C
• 2005-2006 Polaris Fusion 900 EFI L/C
• 2008-2015 Polaris IQ 600 EFI L/C
• 2007 Polaris IQ 600 HO Cleanfire EFI L/C
• 2008 Polaris IQ 700 EFI L/C
• 2008-2010 Polaris IQ 800 EFI L/C
• 2010-2012 Polaris IQ Shift 600 Carb L/C
• 2010-2012 Polaris IQ Shift 600 EFI L/C
• 2010-2011 Polaris RMK 600 144in EFI
• 2008 Polaris RMK 600 155in EFI L/C
• 2010-2011 Polaris RMK 600 155in EFI L/C
• 2006 Polaris RMK 700 Carb L/C
• 2008-2010 Polaris RMK 700 Carb L/C
• 2008-2010 Polaris RMK 700 F/O Carb L/C
• 2006 Polaris RMK 700 144in F/O Up to 2001/01/03
• 2006 Polaris RMK 700 151in Carb L/C
• 2006 Polaris RMK 700 159in Carb L/C
• 2009-2010 Polaris RMK 800 Carb L/C
• 2009-2010 Polaris RMK 800 EFI L/C
• 2005-2006 Polaris RMK 900 166in EFI L/C
• 2009-2010 Polaris RMK Assault 800
• 2008-2011 Polaris SwitchBack 600 Carb L/C
• 2008-2011 Polaris SwitchBack 600 EFI L/C
• 2008 Polaris SwitchBack 700 EFI L/C
• 2009-2010 Polaris SwitchBack 800 EFI L/C
• 2005-2006 Polaris SwitchBack 900 EFI L/C
• 2008-2010 Polaris Touring 600 Carb L/C

Note: Image is for reference only, actual product may vary slightly.
