RMStator Generator Stator RM01223
RMStator Generator Stator RM01223

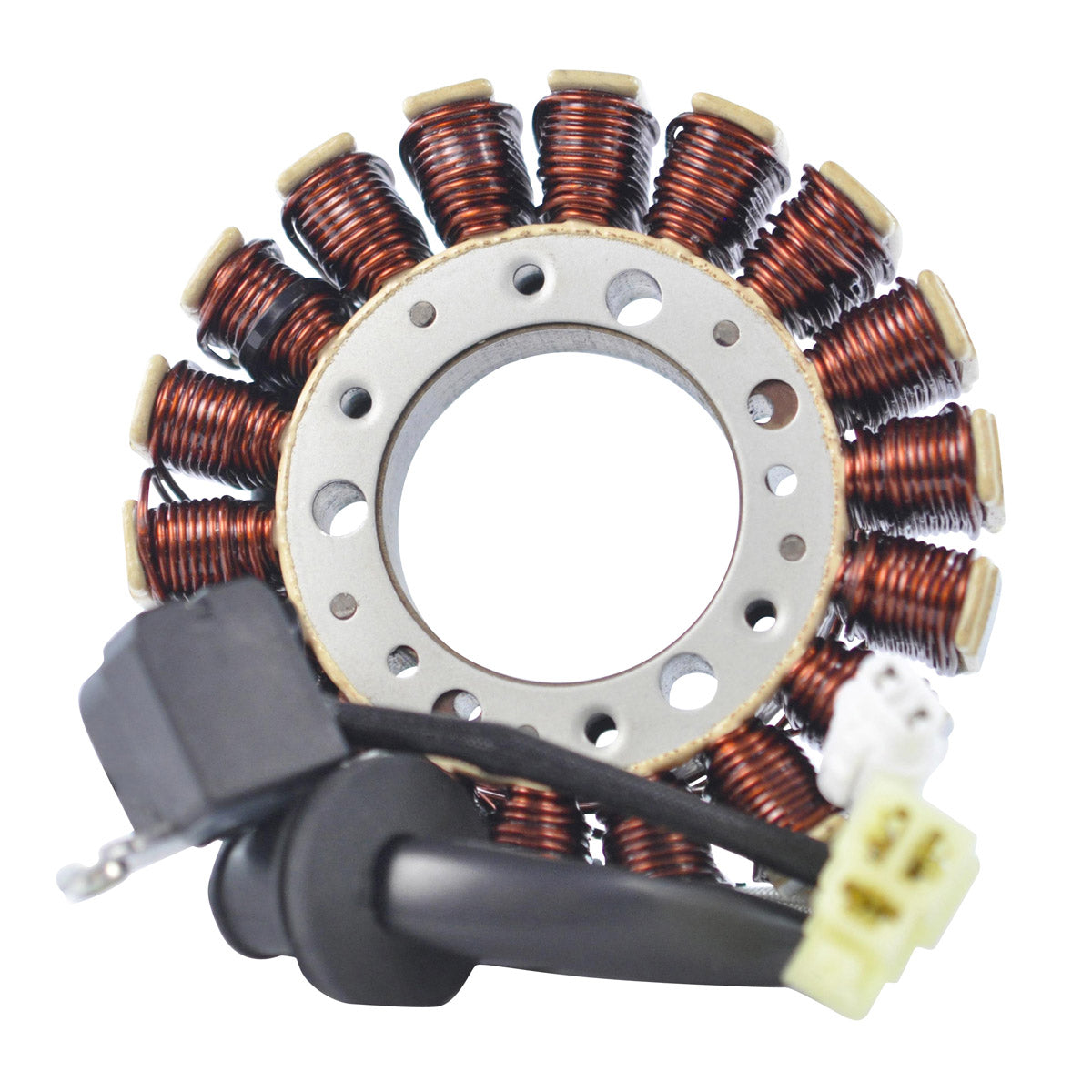

Brand new generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 43mm
Exterior diameter : 104mm
Thickness : 19mm
Length of wires stator to grommet : 40mm
Length of wires grommet to plug : 200mm
Length of pickup coil's wire to grommet : 55mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : Green to Red = 213ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01223
Fitment:
- 2002 Yamaha Mountain Max 600 MM600
- 2001-2003 Yamaha Mountain Max 700 MM700
- 2004-2006 Yamaha SX Venom SXV60
- 2004-2005 Yamaha SX Venom ER SXV60ER
- 2002-2003 Yamaha SX600R
- 2001 Yamaha SX700R
- 2002-2006 Yamaha Venture 600 VT600
- 2001-2003 Yamaha Venture 700 VT700
- 2002-2003 Yamaha VMAX 600 ER VX600ER
- 2001 Yamaha VMAX 700 VX700DX Deluxe
- 2002 Yamaha VMAX 700 ER VX700ER
Note: Image is for reference only, actual product may vary slightly.
