RMStator Stator RM01228

$196.89~~$196.89~~

MPN: RM01228

Questions? Call or text us at:888-927-3076

Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

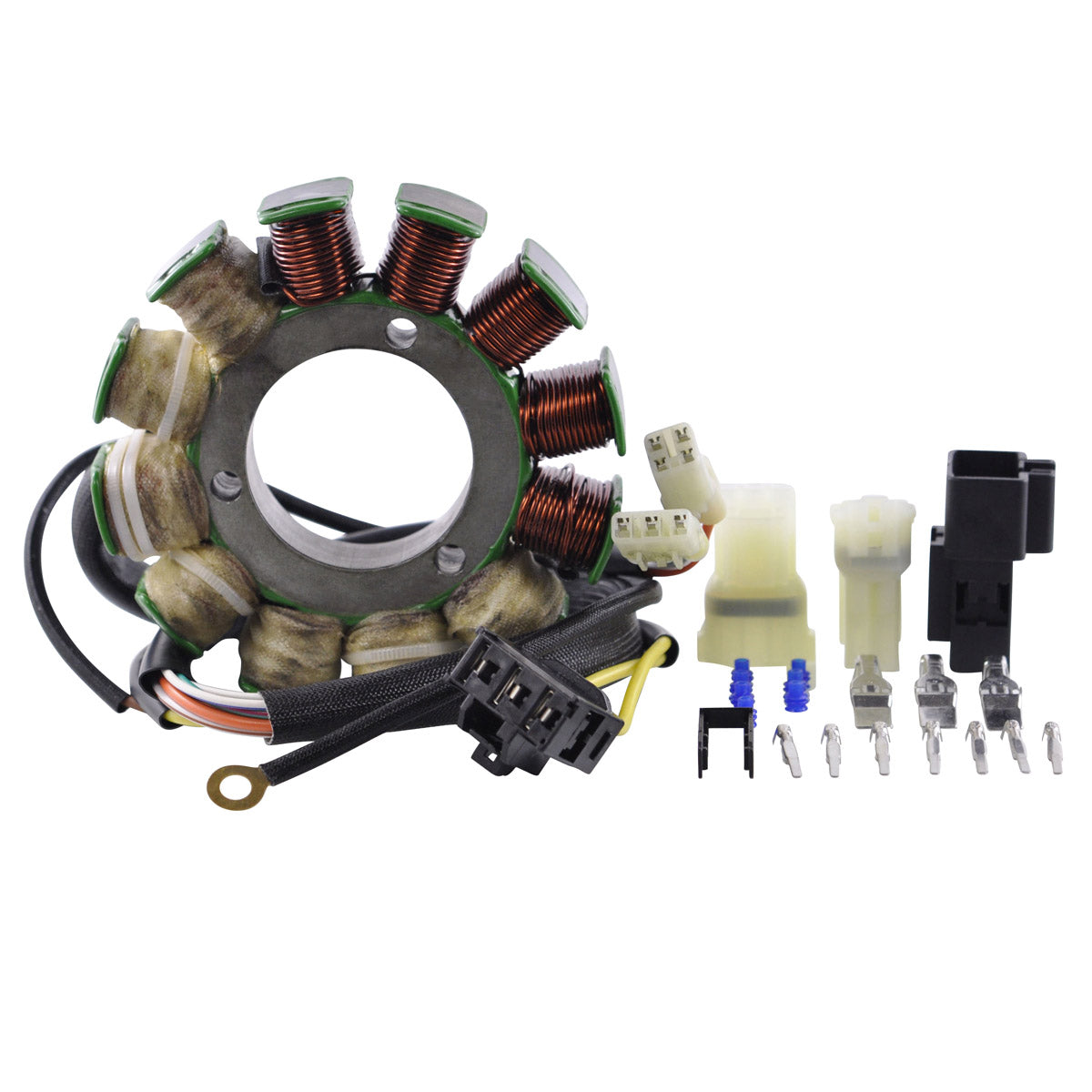

RMStator Stator RM01228

Brand new stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included
All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 47 mm
Exterior diameter: 114 mm
Thickness: 20 mm
Length of wires stator to plug : 500 mm

Other specifications:

Number of wires : 11
Number of plugs: 3
Number of terminals : 10

Wire to wire resistance
Alternator : Yellow to Yellow = 0.4 ohms+/-20%
Fuel Pump : Blue/White to Blue/White = 16 ohms+/-20%
Source Coil : 1 Green/Red to Brown/White = 8 ohms+/-20%
Source Coil 2 : Green/Red to Black/Red = 8 ohms+/-20%
Other : Orange to Orange = 2 ohms+/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01228

Fitment:

2007-2011 Arctic Cat Crossfire 1000 EFI L/C
2007-2009 Arctic Cat Crossfire 1000 Sno Pro EFI L/C
2007-2009 Arctic Cat Crossfire 500 EFI L/C
2007-2011 Arctic Cat Crossfire 600 EFI L/C
2008 Arctic Cat Crossfire 600 Sno Pro EFI L/C
2007-2011 Arctic Cat Crossfire 800 EFI L/C
2007-2011 Arctic Cat Crossfire 800 Sno Pro EFI L/C
2009 Arctic Cat CrossFire R 1000 EFI L/C
2009 Arctic Cat CrossFire R 8 EFI L/C
2007-2008 Arctic Cat F1000 EFI L/C
2007-2008 Arctic Cat F1000 LXR EFI L/C
2007-2009 Arctic Cat F1000 Sno Pro EFI L/C
2008 Arctic Cat F1000 Sno Pro EFI LXR L/C
2008-2009 Arctic Cat F5 LXR EFI L/C
2012 Arctic Cat F5 LXR EFI L/C
2007-2014 Arctic Cat F5 Firecat 500 EFI L/C
2007-2008 Arctic Cat F6 LXR EFI L/C
2007-2011 Arctic Cat F6 Firecat 600 EFI L/C
2007-2011 Arctic Cat F6 Firecat 600 Sno Pro Carb L/C
2007-2011 Arctic Cat F8 EFI L/C
2013 Arctic Cat F8 EFI L/C
2011 Arctic Cat F8 EXT EFI L/C
2007-2013 Arctic Cat F8 LXR EFI L/C
2007-2008 Arctic Cat F8 Sno Pro EFI L/C
2010-2013 Arctic Cat F8 Sno Pro EFI L/C
2007-2008 Arctic Cat M1000 EFI 153in L/C
2007-2011 Arctic Cat M1000 Sno Pro EFI 153in L/C
2007-2011 Arctic Cat M6 EFI 141in L/C
2007-2013 Arctic Cat M8 EFI 141in
2007-2014 Arctic Cat M8 Sno Pro EFI 162in L/C
2014-2018 Arctic Cat M8000 153in
2014-2018 Arctic Cat M8000 Sno Pro 141in EFI L/C
2014-2017 Arctic Cat M8000 Sno Pro ES 141in
2007-2011 Arctic Cat Mountain Cat 600 EFI L/C
2013 Arctic Cat Procross F800 Sno Pro EFI L/C
2013 Arctic Cat Procross XF800 Crosstour
2012 Arctic Cat Procross XF800 LXR EFI L/C
2014 Arctic Cat Procross XF800 LXR EFI L/C
2012-2014 Arctic Cat Procross XF800 Sno Pro EFI L/C
2020 Arctic Cat Riot 6000 146in 1.6 ES
2010-2014 Arctic Cat Sno Pro 500 EFI L/C
2008-2009 Arctic Cat T500 EFI L/C
2018 Arctic Cat XF 8000 Cross Country
2014-2015 Arctic Cat XF 8000 Cross Country Sno Pro
2017 Arctic Cat XF 8000 Cross Country Sno Pro
2014-2015 Arctic Cat XF 8000 Crosstour EFI L/C
2017-2018 Arctic Cat XF 8000 Crosstrek
2018 Arctic Cat XF 8000 High Country
2014-2017 Arctic Cat XF 8000 High Country Limited
2012-2016 Arctic Cat XF 8000 High Country Sno Pro
2014 Arctic Cat XF 8000 Limited EFI L/C
2014-2015 Arctic Cat XF 8000 LXR EFI L/C
2014-2015 Arctic Cat XF 8000 Sno Pro EFI L/C
2015-2017 Arctic Cat ZR 4000 LXR
2018 Arctic Cat ZR 6000 137in
2020 Arctic Cat ZR 6000 137in
2017-2018 Arctic Cat ZR 6000 R SX
2014 Arctic Cat ZR 8000 137in
2018-2019 Arctic Cat ZR 8000 137in
2017-2018 Arctic Cat ZR 8000 El Tigre
2014-2017 Arctic Cat ZR 8000 Limited
2014-2017 Arctic Cat ZR 8000 LXR
2014-2018 Arctic Cat ZR 8000 RR
2014-2019 Arctic Cat ZR 8000 Sno Pro

Note: Image is for reference only, actual product may vary slightly.
