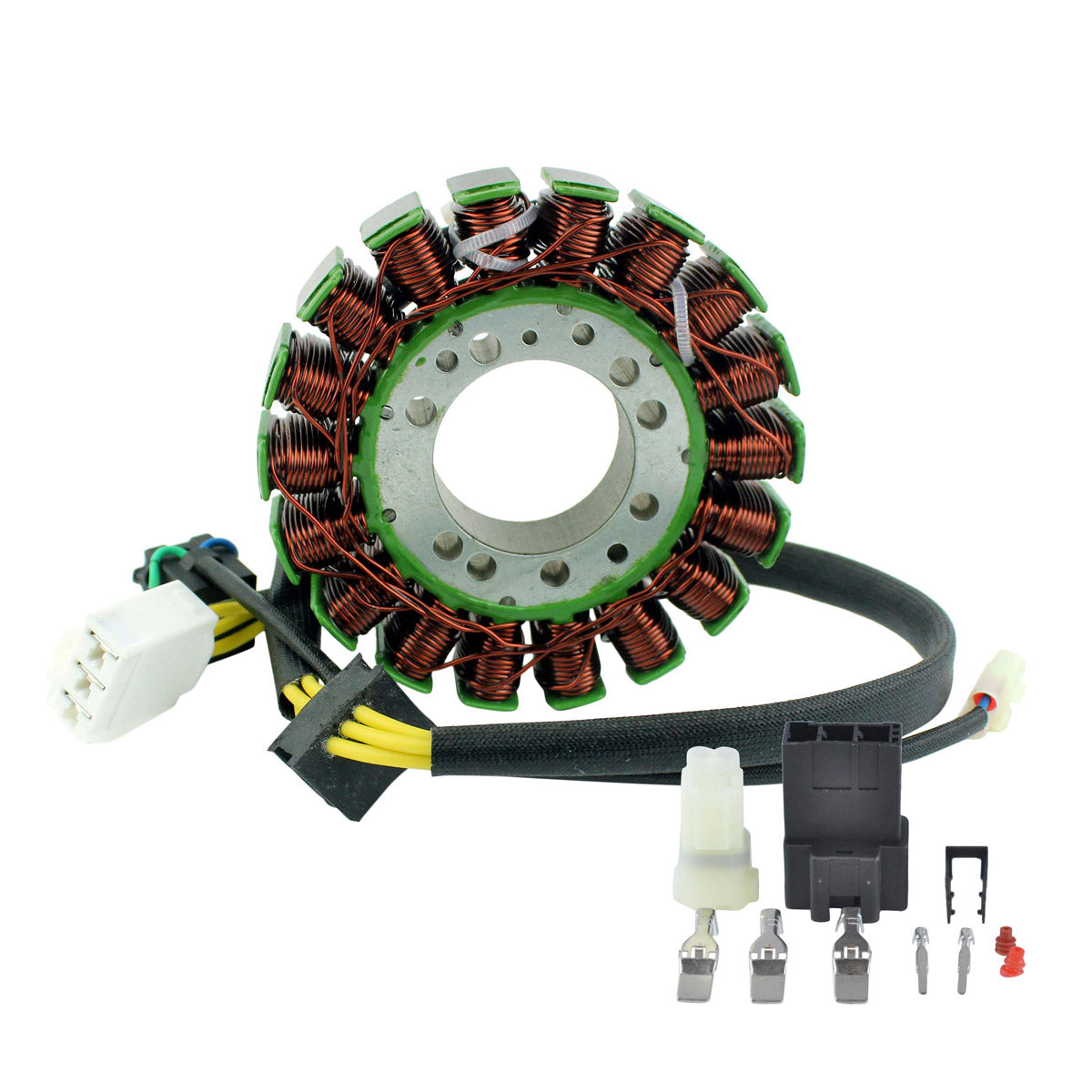

RMStator Stator RM01236
RMStator Stator RM01236
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- Pick-up coil included
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Alternator resistance (Yellow to Yellow) : 0.4 ohms +/- 20%
Pick-up 1 resistance (Blue to Green) : 215 ohms +/- 20%
Number of wires : 5
Number of plugs : 2
Number of terminals : 5
Harness length - Stator to grommet (mm) : 80
Harness length - Grommet to plug (mm) : 400
Pick-up coil wire length - Coil to grommet (mm) : 35
Inside diameter (mm) : 40
Outside diameter (mm) : 113
Thickness (mm) : 20
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01236
Fitment:
- 2009-2014 Arctic Cat Bearcat Z1 XT
- 2012-2014 Arctic Cat Bearcat Z1 XT GS
- 2007-2008 Arctic Cat Jaguar Z1 1100 EFI L/C
- 2014-2016 Arctic Cat M9000 Sno Pro 162in
- 2012-2013 Arctic Cat Proclimb M1100 153in
- 2012-2013 Arctic Cat Proclimb M1100 Turbo 153in
- 2013 Arctic Cat Proclimb XF1100 Turbo Sno Pro High Country
- 2013 Arctic Cat Proclimb XF1100 Turbo Sno Pro High Country Limited
- 2013 Arctic Cat Procross F1100 LXR
- 2012-2013 Arctic Cat Procross F1100 LXR EFI L/C
- 2013 Arctic Cat Procross F1100 Sno Pro
- 2013 Arctic Cat Procross F1100 Sno Pro Limited
- 2013 Arctic Cat Procross F1100 Sno Pro RR
- 2012 Arctic Cat Procross F1100 Turbo Sno Pro EFI L/C
- 2013 Arctic Cat Procross XF1100 Crosstour EFI L/C
- 2012-2013 Arctic Cat Procross XF1100 Sno Pro EFI L/C
- 2013 Arctic Cat Procross XF1100 Turbo Cross Tour EFI L/C
- 2013 Arctic Cat Procross XF1100 Turbo LXR EFI L/C
- 2012 Arctic Cat Procross XF1100 Turbo Sno Pro EFI L/C
- 2008-2014 Arctic Cat TZ1
- 2008-2014 Arctic Cat TZ1 LXR
- 2009-2013 Arctic Cat TZ1 Turbo LXR
- 2014-2016 Arctic Cat XF 9000 LXR EFI L/C
- 2009-2011 Arctic Cat Z1 EFI L/C
- 2009-2011 Arctic Cat Z1 LXR EFI L/C
- 2009-2011 Arctic Cat Z1 Turbo EFI L/C
- 2009-2011 Arctic Cat Z1 Turbo LXR EFI L/C
- 2014-2017 Arctic Cat ZR 5000 LXR EFI L/C
- 2015 Arctic Cat ZR 9000 El Tigre EFI L/C
- 2016 Arctic Cat ZR 9000 LXR EFI L/C
- 2015-2016 Arctic Cat ZR 9000 Sno Pro EFI L/C
Note: Image is for reference only, actual product may vary slightly.
