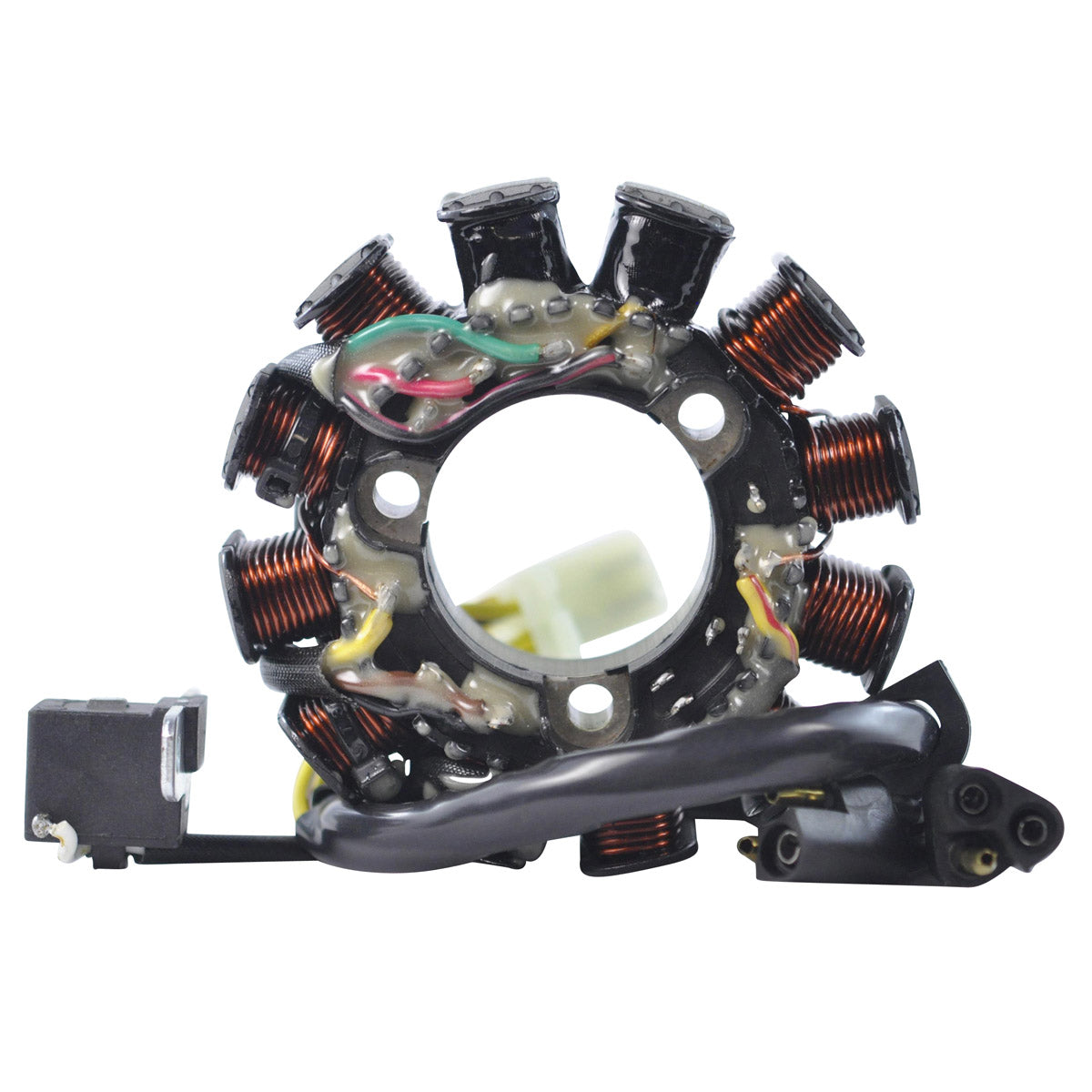

RMStator Stator RM01239

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 41mm
Exterior diameter : 104mm
Thickness : 14mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 160mm
Length of pickup coil's wire to grommet : 120mm

Other specifications :

Number of wires : 12
Number of plugs : 3
Number of pins : 11

Wire to wire resistance :

Alternator : Yellow to Yellow/Red = 0.4ohms +/-20%
Alternator : Yellow to Brown = 0.4ohms +/-20%
Pickup : White to White/Red = 190ohms +/-20%
Source : Green to Black/Red = 14ohms +/-20%
Source : Green to Red = 14ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01239

Fitment:

• 2007 Polaris 550 LX Edge Carb F/C
• 2007-2010 Polaris 550 Trail RMK Carb F/C
• 2007-2010 Polaris 550 Trail Touring Carb F/C
• 2004-2006 Polaris Classic 550 Carb F/C
• 2003 Polaris Classic 550 Edge Carb F/C
• 2011-2013 Polaris IQ 550 LXT Carb F/C
• 2009-2013 Polaris IQ Shift 550 Carb F/C
• 2008 Polaris LX550 Carb F/C
• 2002-2003 Polaris Pro X 440 Carb F/C
• 2002-2003 Polaris Pro X 440 Carb L/C
• 2004 Polaris PRO X 550 Fan Carb F/C
• 2011-2013 Polaris Shift 550 136in Carb F/C
• 2003-2004 Polaris Sportsman 550 Touring EPS
• 2011 Polaris Sportsman 550 Touring EPS Carb F/C
• 2004-2005 Polaris Super Sport 550
• 2005 Polaris Super Sport 550 Carb F/C
• 2008 Polaris Super Sport 550 Carb F/C
• 2007 Polaris Super Sport 550 Edge Carb F/C
• 2004-2005 Polaris Trail RMK 550
• 2003-2006 Polaris Trail Touring 550
• 2009 Polaris Transport 550 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
