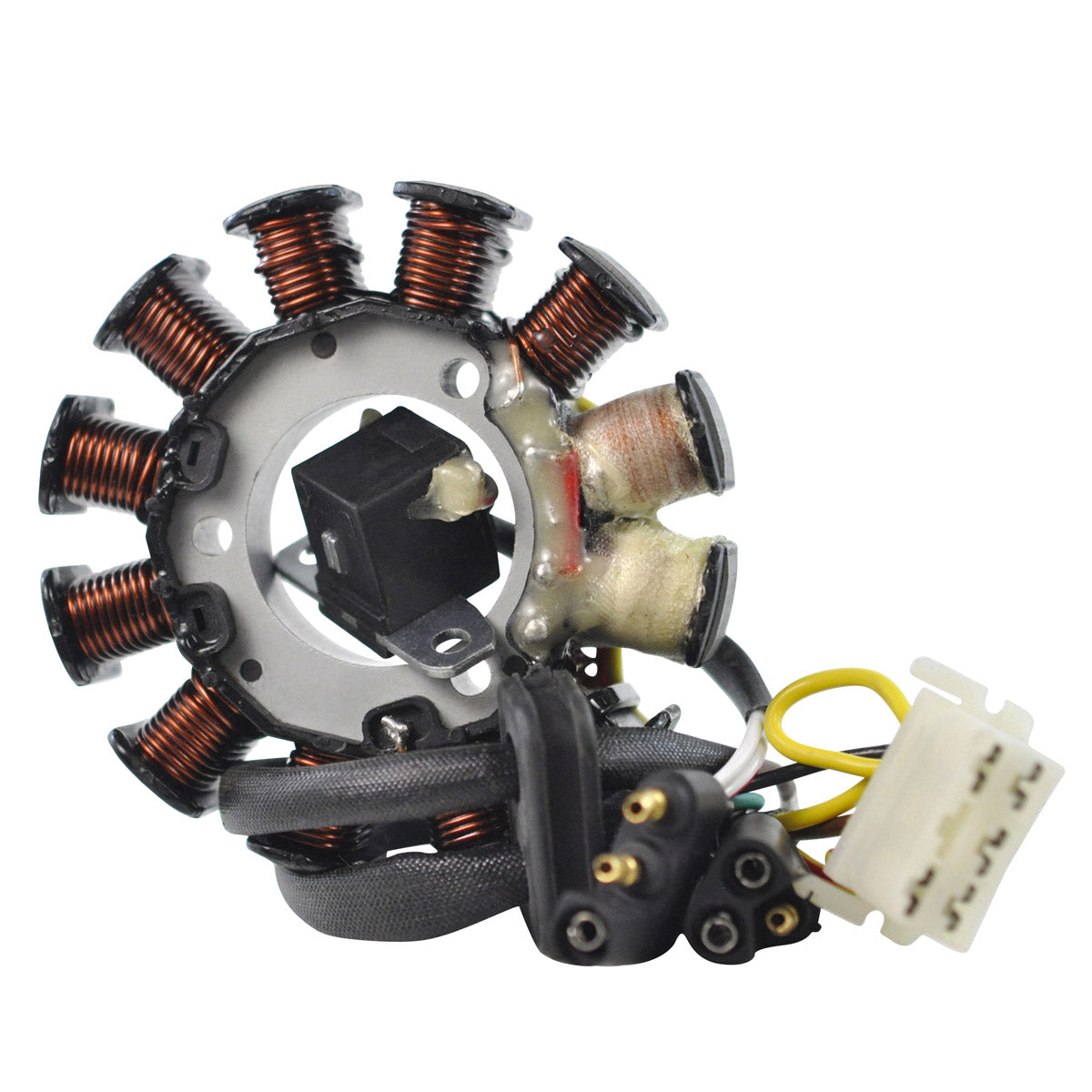

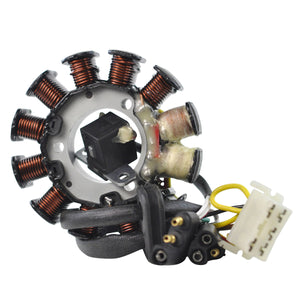

RMStator Stator RM01249

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 37 mm
Exterior diameter : 99 mm
Thickness : 15 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 169 mm
Length of pickup coil's wire to grommet : 158 mm

Other specifications :

Number of wires : 9
Number of plugs : 3
Number of pins : 11

Wire to wire resistance :

Alternator : Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup : White to White/Red = 196 ohms +/-20%
Source 1 : Black/Red to Red = 30 ohms +/-20%
Source 2 : Black/Red to Green = 17 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01249

Fitment:

• 2000 Polaris Triumph 600 Carb L/C
• 1998 Polaris Ultra 680 Carb L/C
• 1998 Polaris Ultra Touring 680 Carb L/C
• 1998 Polaris XCR 600 Carb L/C
• 1998-1999 Polaris XCR 700 Carb L/C
• 1999-2003 Polaris XCR 800 Carb L/C
• 1998-1999 Polaris XLT Classic 600 Carb
• 1998 Polaris XLT LTD 600 Carb
• 1998-1999 Polaris XLT SP 600 Carb
• 1998-1999 Polaris XLT Touring 600 Carb

Note: Image is for reference only, actual product may vary slightly.
