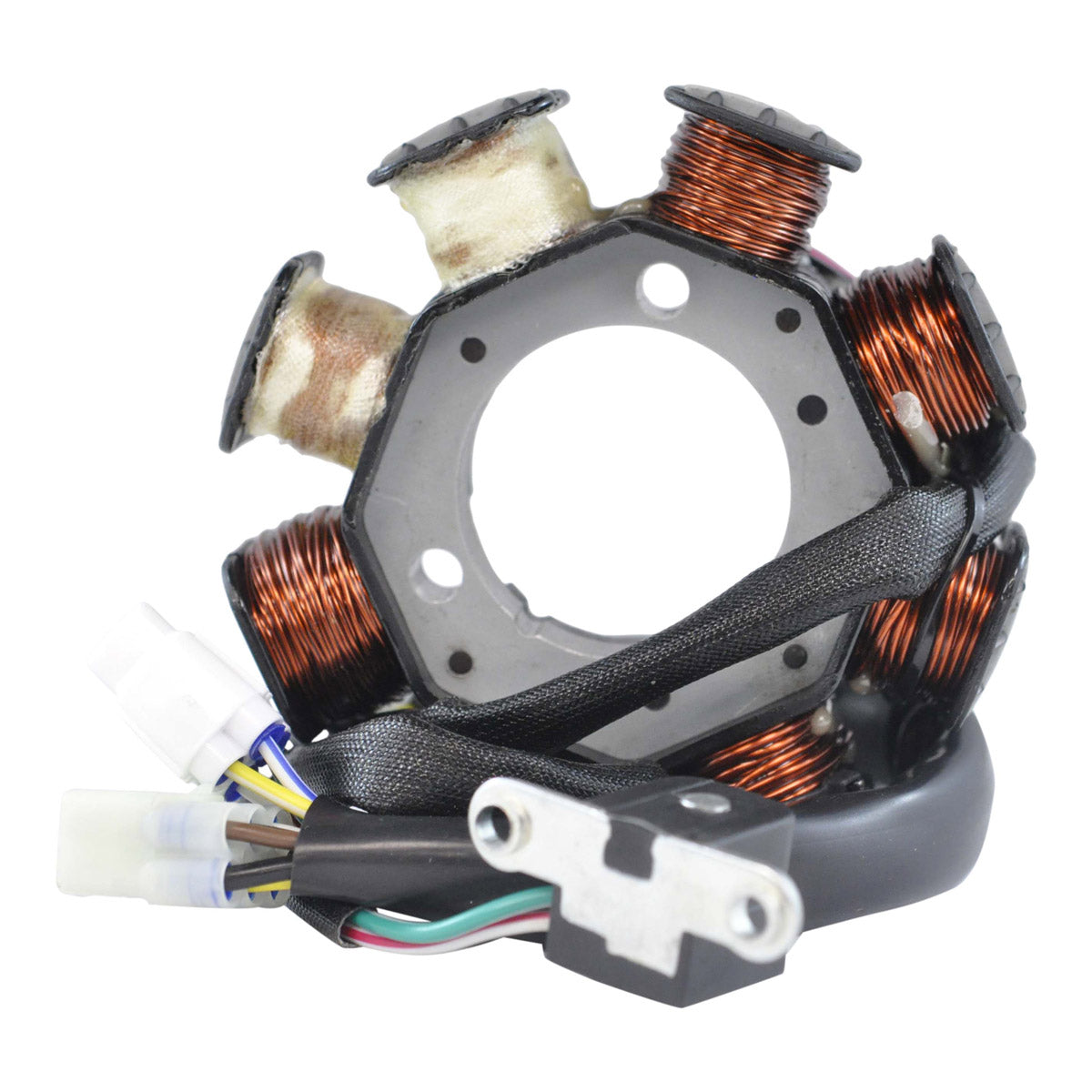

RMStator Stator RM01257

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42mm
Exterior diameter : 103mm
Thickness : 14mm
Length of wires stator to grommet : 75mm
Length of wires grommet to plug : 200mm
Length of pickup coil's wire to grommet : 70mm

Other specifications :

Number of wires : 10
Number of plugs : 2
Number of pins : 10

Wire to wire resistance :

Alternator : Yellow to Yellow/Black = 0.4ohms +/-20%
Pick up : White/Red to White/Green = 210ohms +/- 20%
Source : Blue/Red to Brown = 250ohms +/-20%
Other : White to White/Black = 0.2ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01257

Fitment:

• 1997-1999 Yamaha Mountain Max 600 MM600
• 1997-1998 Yamaha Venture 600 VT600

Note: Image is for reference only, actual product may vary slightly.
