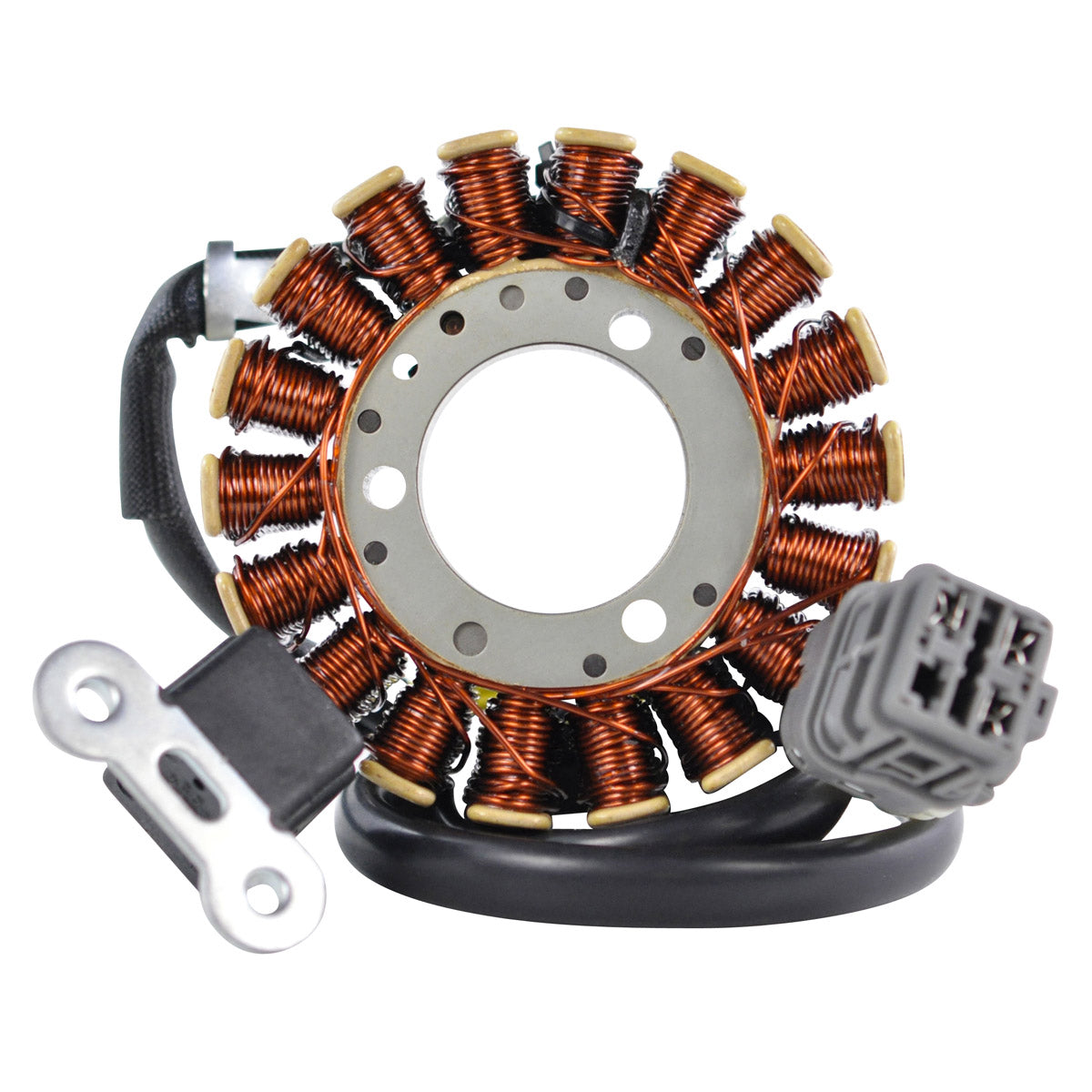

RMStator Generator Stator RM01259

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 34mm
Exterior diameter : 92mm
Thickness : 18mm
Length of wires stator to grommet : 80mm
Length of wires grommet to plug : 420mm
Length of pickup coil's wire to grommet : 55mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Green/White to Blue/Yellow = 105ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01259

Fitment:

• 2006-2009 Arctic Cat 250 2x4 Utility
• 2006-2008 Arctic Cat 250 DVX

Note: Image is for reference only, actual product may vary slightly.
