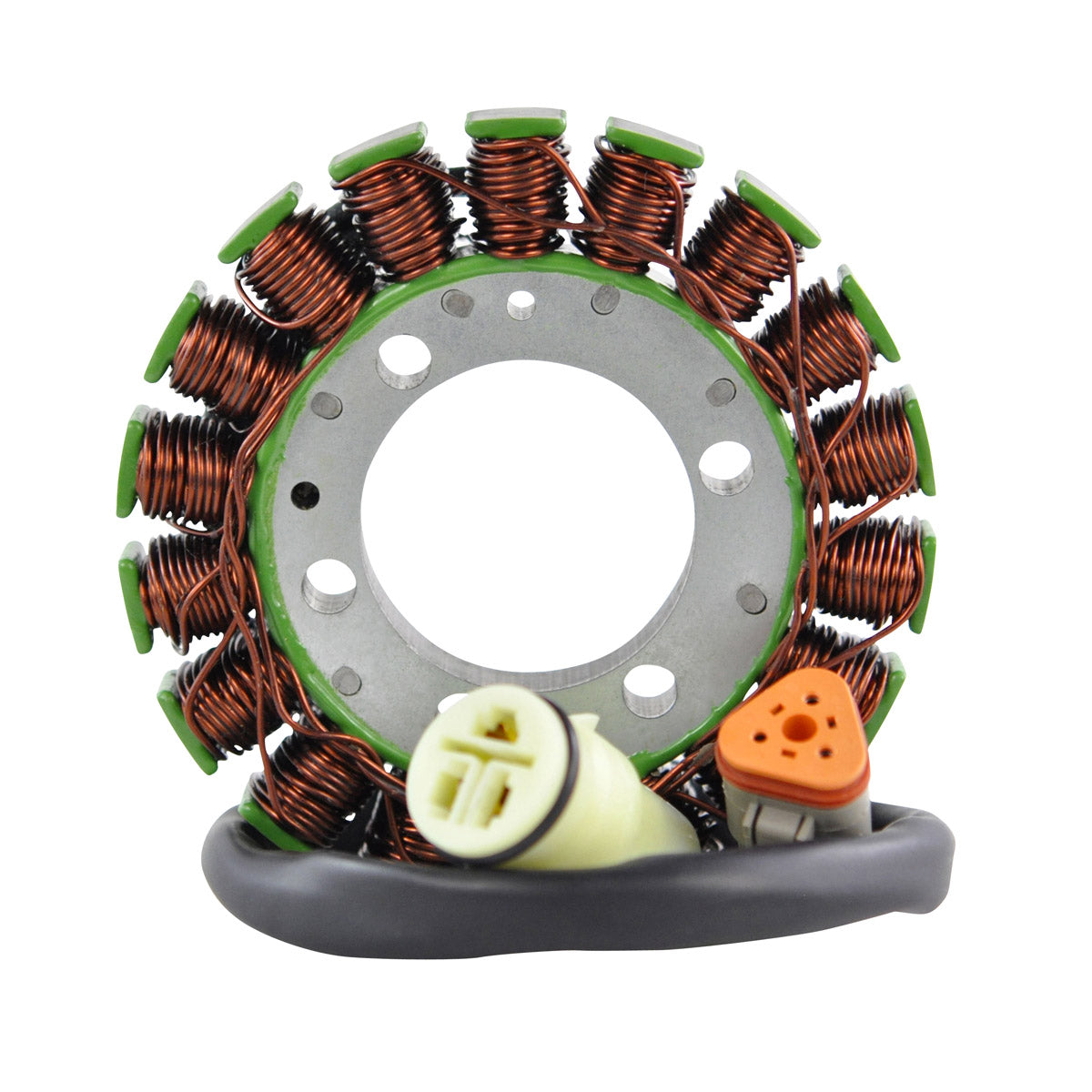

RMStator Stator RM01268

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 13 mm
Length of wires stator to plug : 425 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : Yellow Between each Yellow = 0.5 ohms+/-20%
Alternator : Yellow to Ground = O.L. ON DISPLAY
Alternator : Green to each Yellow = 0.5 ohms+/-20%
Alternator : Black to Ground = 0.1 ohms+/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01268

Fitment:

• 2002 Ski-doo Grand Touring 500 Sport Carb L/C
• 2002 Ski-doo Grand Touring 600 Carb L/C
• 1997 Ski-doo Grand Touring 700 Carb L/C
• 1999-2000 Ski-doo Grand Touring 700 Carb L/C
• 2002 Ski-doo Grand Touring 700 Carb L/C
• 2002 Ski-doo Grand Touring 700 Sport Carb L/C
• 1999-2002 Ski-doo Grand Touring 800 SE Carb L/C

Note: Image is for reference only, actual product may vary slightly.
