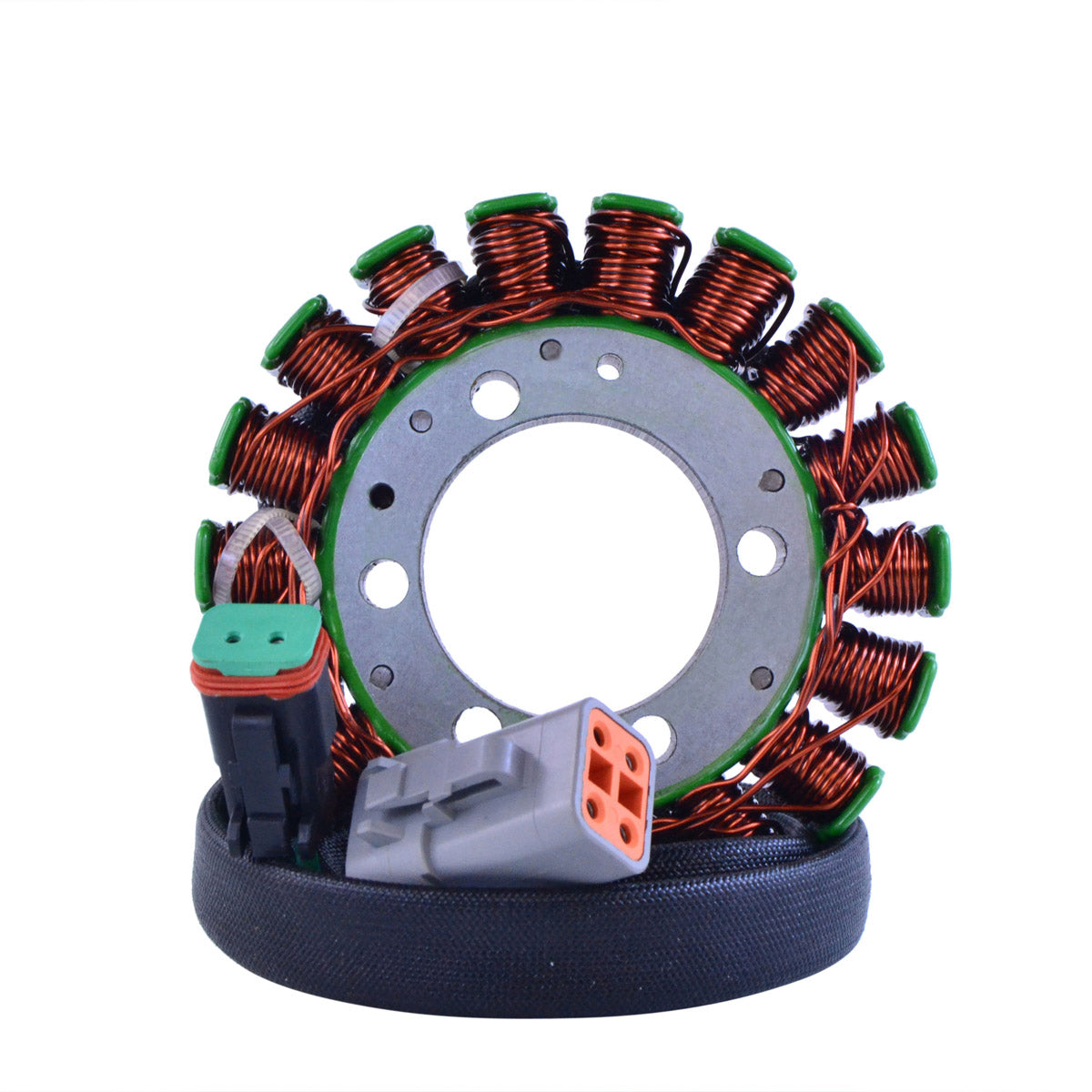

RMStator Generator Stator RM01270

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 40 mm
Exterior diameter: 103 mm
Thickness: 14 mm
Length of wires stator to connector: 500 mm

Other specifications:

Number of wires:5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:

Alternator : Yellow to ground = O.L
Alternator : Between each Yellow = 0.4 ohms+/-20%
Alternator : Yellow to Green = 0.8 ohms+/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01270

Fitment:

• 2006 Lynx Adventure 600
• 2004 Lynx Enduro 500
• 2004 Lynx Enduro 500 RC
• 2004 Lynx Enduro 600 HO
• 2004 Lynx Enduro 600 HO RC
• 2005 Lynx Enduro Sport
• 2004 Lynx Mountain 800 HO
• 2005 Lynx Rave 800
• 2008 Lynx Rave 800 Power Tek
• 2008 Lynx Rave RE 600
• 2008 Lynx Rave X-Trim 800 Power Tek
• 2004 Lynx Sport Touring 600
• 2008 Lynx YETI 600
• 2003 Ski-doo Grand Touring 500 Sport Carb L/C
• 2003 Ski-doo Grand Touring 600 Carb L/C
• 2003 Ski-doo Grand Touring 700 Carb L/C
• 2003 Ski-doo Grand Touring 700 Sport Carb L/C
• 2004-2007 Ski-doo GSX 500SS Sport Carb L/C
• 2004-2005 Ski-doo GSX 600 LE HO E-TEC Carb L/C
• 2004-2007 Ski-doo GSX 800 Limited HO Power TEK Carb L/C
• 2005-2008 Ski-doo GTX 500SS Sport Carb L/C
• 2005 Ski-doo GTX 600 LE HO E-TEC Carb L/C
• 2005 Ski-doo GTX 600 Limited HO SDI
• 2005 Ski-doo GTX 800 Limited HO Carb L/C
• 2006-2007 Ski-doo GTX 800 Limited HO Power TEK Carb L/C
• 2003 Ski-doo Legend 500 Sport Carb L/C
• 2004 Ski-doo Legend 500SS Sport Carb L/C
• 2003 Ski-doo Legend 600 GS RER Carb L/C
• 2003 Ski-doo Legend 600 Sport Carb L/C
• 2003-2004 Ski-doo Legend 700 GS RER Carb L/C
• 2003 Ski-doo Legend 700 Sport Carb L/C
• 2003 Ski-doo MXZ 500 Adrenaline Carb L/C
• 2003 Ski-doo MXZ 500 Adrenaline RER Carb L/C
• 2003 Ski-doo MXZ 500 Trail Carb L/C
• 2006 Ski-doo MXZ 500 Trail Carb L/C
• 2003 Ski-doo MXZ 500 Trail RER Carb L/C
• 2004-2007 Ski-doo MXZ 500SS Adrenaline Carb L/C
• 2004 Ski-doo MXZ 500SS Renegade Carb L/C
• 2004-2007 Ski-doo MXZ 500SS Trail Carb L/C
• 2004 Ski-doo MXZ 500SS Trail R Carb L/C
• 2003 Ski-doo MXZ 600 Carb L/C
• 2003-2007 Ski-doo MXZ 600 Adrenaline HO Carb L/C
• 2003-2004 Ski-doo MXZ 600 Adrenaline RER HO Carb L/C
• 2003 Ski-doo MXZ 600 Renegade HO Carb L/C
• 2003-2005 Ski-doo MXZ 600 Renegade HO RER Carb L/C
• 2004 Ski-doo MXZ 600 Renegade X HO SDI EFI L/C
• 2003 Ski-doo MXZ 600 Sport HO Carb L/C
• 2003 Ski-doo MXZ 600 Sport HO RER Carb L/C
• 2003 Ski-doo MXZ 600 Trail Carb L/C
• 2003-2004 Ski-doo MXZ 600 Trail HO Carb L/C
• 2003-2005 Ski-doo MXZ 600 Trail HO RER Carb L/C
• 2003 Ski-doo MXZ 600 Trail RER
• 2003 Ski-doo MXZ 600 Trail RER Carb L/C
• 2003 Ski-doo MXZ 700 Carb L/C
• 2003 Ski-doo MXZ 700 RER Carb L/C
• 2003 Ski-doo MXZ 700 Adrenaline Carb L/C
• 2003 Ski-doo MXZ 700 Adrenaline RER Carb L/C
• 2003 Ski-doo MXZ 800 Adrenaline Carb L/C
• 2006 Ski-doo MXZ 800 Adrenaline Carb L/C
• 2003 Ski-doo MXZ 800 Adrenaline RER Carb L/C
• 2003-2007 Ski-doo MXZ 800 Adrenaline HO Power TEK Carb L/C
• 2007 Ski-doo MXZ 800 Blizzard HO Power TEK Carb L/C
• 2003 Ski-doo MXZ 800 Renegade Carb L/C
• 2006 Ski-doo MXZ 800 Renegade Carb L/C
• 2003 Ski-doo MXZ 800 Renegade RER Carb L/C
• 2003 Ski-doo MXZ 800 Renegade HO RER Carb L/C
• 2003-2007 Ski-doo MXZ 800 Renegade HO Power TEK Carb L/C
• 2006-2007 Ski-doo MXZ 800 Renegade X HO Carb L/C
• 2005 Ski-doo MXZ 800 Renegade X HO Power TEK Carb L/C
• 2007 Ski-doo MXZ 800 Renegade X HO Power TEK Carb L/C
• 2003 Ski-doo MXZ 800 Sport Carb L/C
• 2003 Ski-doo MXZ 800 Sport RER Carb L/C
• 2002 Ski-doo MXZ 800R Carb L/C
• 2007 Ski-doo MXZ X 440 Racing Carb L/C
• 2003-2005 Ski-doo MXZ X 600 HO Carb L/C
• 2007 Ski-doo MXZ X 600 HO Carb L/C
• 2003-2004 Ski-doo MXZ X 600 HO RER Carb L/C
• 2003 Ski-doo MXZ X 800 Carb L/C
• 2004-2005 Ski-doo MXZ X 800 HO Power TEK
• 2005 Ski-doo MXZ X 800 HO Power TEK Carb L/C
• 2003 Ski-doo MXZ X 800 RER Carb L/C
• 2007 Ski-doo MXZ XRS 800 HO Power TEK Carb L/C
• 2009 Ski-doo Skandic 600 SUV Carb L/C
• 2008 Ski-doo Skandic 600 SUV HO SDI EFI L/C
• 2008-2010 Ski-doo Skandic 600 WT Carb L/C
• 2004-2005 Ski-doo Summit 600 Adrenaline HO
• 2003 Ski-doo Summit 600 Adrenaline HO Carb L/C
• 2003 Ski-doo Summit 600 Adrenaline HO RER Carb L/C
• 2004 Ski-doo Summit 600 Adrenaline HO SDI EFI L/C
• 2003 Ski-doo Summit 700
• 2003 Ski-doo Summit 700 RER Carb L/C
• 2003 Ski-doo Summit 700 Adrenaline Carb L/C
• 2003 Ski-doo Summit 700 Adrenaline RER Carb L/C
• 2003 Ski-doo Summit 700 Highmark Carb L/C
• 2003 Ski-doo Summit 700 Highmark RER Carb L/C
• 2004 Ski-doo Summit 800 Carb L/C
• 2003-2006 Ski-doo Summit 800 Adrenaline HO Carb L/C
• 2003 Ski-doo Summit 800 Adrenaline HO RER Carb L/C
• 2003 Ski-doo Summit 800 Highmark HO Carb L/C
• 2003 Ski-doo Summit 800 Highmark RER Carb L/C
• 2003-2004 Ski-doo Summit 800 Highmark Xtreme RER HO Carb L/C
• 2007 Ski-doo Summit 800R Adrenaline Power TEK 151in
• 2003 Ski-doo Summit X 700 Carb L/C
• 2003 Ski-doo Summit X 700 RER Carb L/C
• 2003 Ski-doo Summit X 800 Highmark HO Carb L/C
• 2003 Ski-doo Summit X 800 HO Carb L/C
• 2007 Ski-doo Summit X 800R Carb L/C
• 2006-2007 Ski-doo Summit X 800R HO Carb L/C
• 2007 Ski-doo Summit XRS 800R Power TEK 159in

Note: Image is for reference only, actual product may vary slightly.
