RMStator Stator RM01272
Customer Ratings

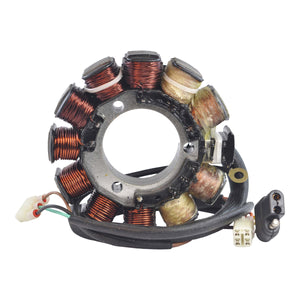

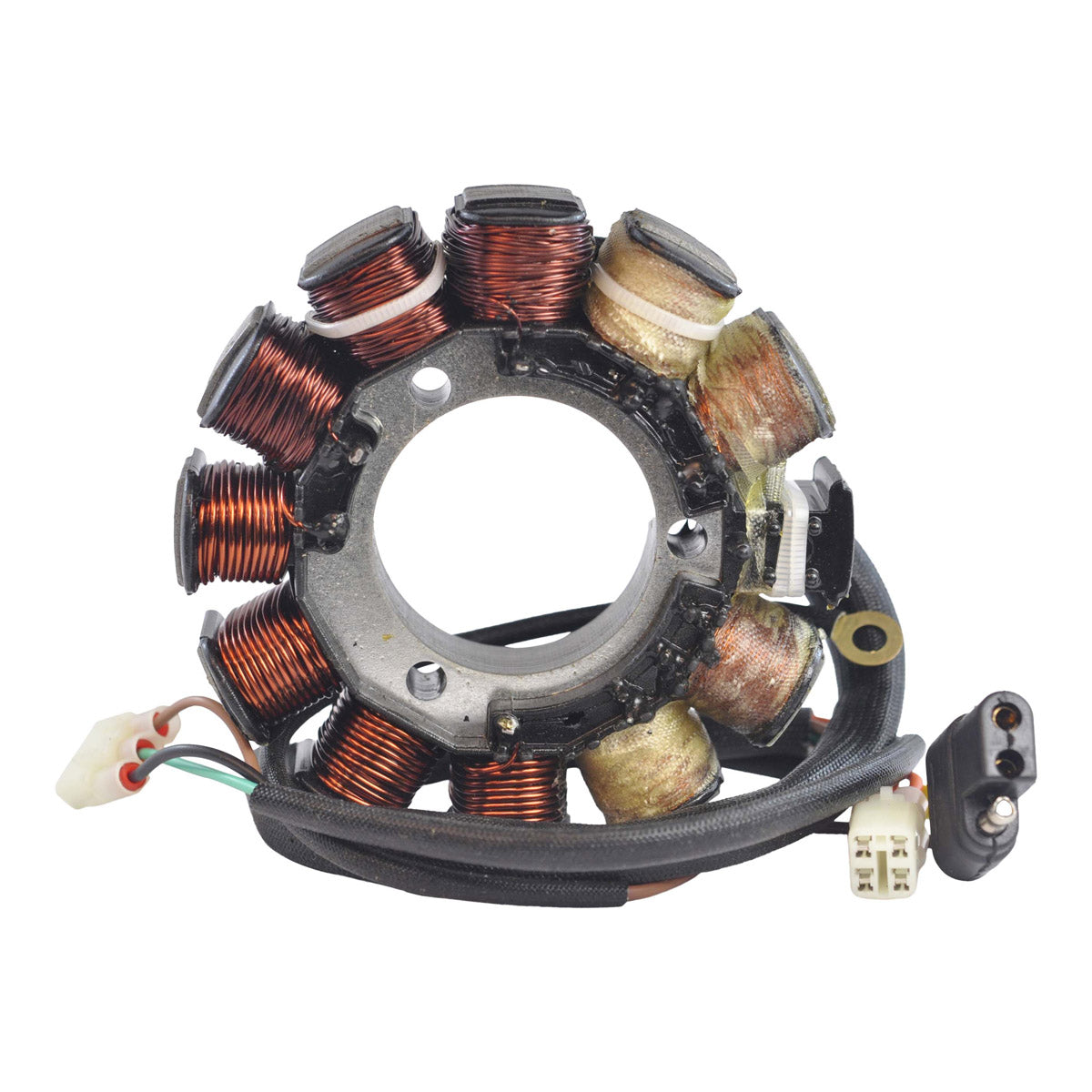

RMStator Stator RM01272
RMStator Stator RM01272
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 47mm
Exterior diameter : 114mm
Thickness : 19mm
Other specifications :
Number of wires : 10
Number of plugs : 3
Number of pins : 10
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.2ohms +/-20%
Fuel Pump : White/Blue Between each White/Blue = 17.2ohms +/-20%
Hand Warmer: Orange to Orange = 2ohms+/-20%
Source 1: Green to Brown = 10ohms +/-20%
Source 2: Green to Black = 10ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01272
Fitment:
- 2004 Arctic Cat F6 Firecat 600 EFI L/C
- 2003-2004 Arctic Cat F7 Firecat 700 EFI L/C
- 2003-2004 Arctic Cat F7 Firecat 700 Sno Pro EFI L/C
- 2005-2006 Arctic Cat King Cat 900 EFI L/C
- 2006 Arctic Cat M5 EFI 141in L/C
- 2002-2004 Arctic Cat Mountain Cat 800 EFI L/C
- 2004 Arctic Cat Mountain Cat 900 EFI 151in L/C
- 2002-2004 Arctic Cat Pantera 800 EFI L/C
- 2006 Arctic Cat Sabercat 500 EFI L/C
- 2006 Arctic Cat Sabercat 500 LX EFI L/C
- 2004 Arctic Cat Sabercat 600 EFI L/C
- 2004 Arctic Cat Sabercat 600 LX EFI L/C
- 2004 Arctic Cat Sabercat 700 EFI L/C
- 2004 Arctic Cat Sabercat 700 LX EFI L/C
- 2002-2003 Arctic Cat ZL 800 ESR EFI L/C
- 2002-2003 Arctic Cat ZL 800 SS EFI L/C
- 2002-2003 Arctic Cat ZR 800 EFI L/C
- 2003 Arctic Cat ZR 800 Sno Pro EFI L/C
- 2004-2006 Arctic Cat ZR 900 EFI L/C
- 2004-2006 Arctic Cat ZR 900 Sno Pro EFI L/C
Note: Image is for reference only, actual product may vary slightly.
