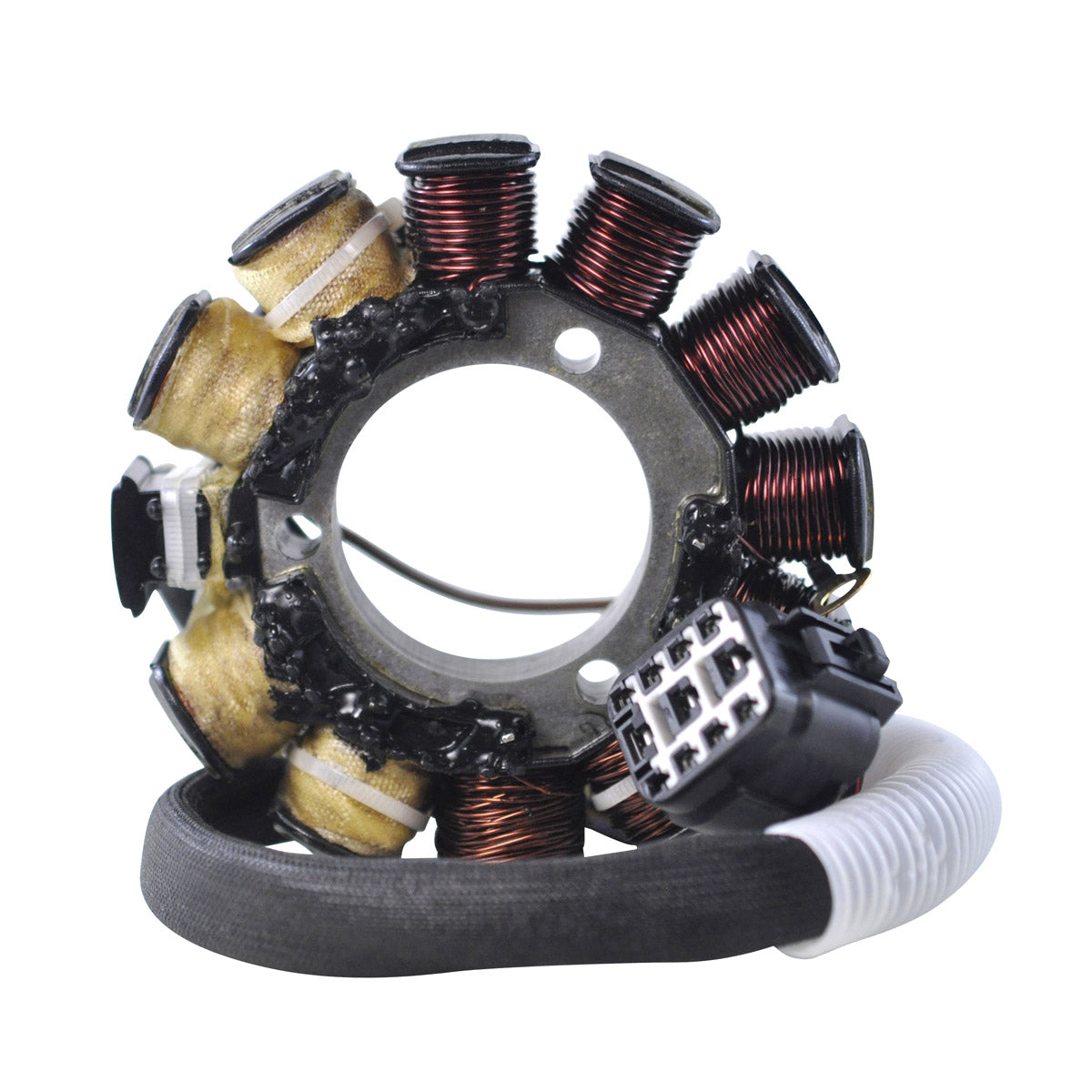

RMStator Stator RM01274

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Please note: Your model may not need the brown wire. Please remove it if this is the case for your machine

Technical Data

Dimensions :

Interior diameter : 47 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to plug : 500 mm

Other specifications :

Number of wires : 9
Number of plugs : 1
Number of pins : 9

Wire to wire resistance :

Alternator 1 : Yellow between each Yellow = 0.4 ohms +-20%
Alternator 2 : White/Blue between each White/Blue = 17.2 ohms +-20%
Pickup : Orange between each Orange= 2 ohms +-20%
Source 1 : Green to Brown = 10 ohms +-20%
Source 2 : Green to Black = 10 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01274

Fitment:

• 2006 Arctic Cat Crossfire 600 EFI L/C
• 2006 Arctic Cat Crossfire 700 EFI L/C
• 2006 Arctic Cat Crossfire 700 Sno Pro EFI L/C
• 2005-2006 Arctic Cat F6 Firecat 600 EFI L/C
• 2006 Arctic Cat F6 Firecat 600R EFI L/C
• 2005-2006 Arctic Cat F7 Firecat 700 EFI L/C
• 2005-2006 Arctic Cat F7 Firecat 700 Sno Pro EFI L/C
• 2006 Arctic Cat F7 Firecat 700R EFI L/C
• 2005-2006 Arctic Cat M6 EFI 141in L/C
• 2005-2006 Arctic Cat M7 EFI 153in L/C
• 2005-2006 Arctic Cat Mountain Cat 600 EFI L/C
• 2005 Arctic Cat Sabercat 600 EFI L/C
• 2005-2006 Arctic Cat Sabercat 600 LX EFI L/C
• 2005-2006 Arctic Cat Sabercat 700 EFI L/C
• 2005 Arctic Cat Sabercat 700 LX EFI L/C

Note: Image is for reference only, actual product may vary slightly.
