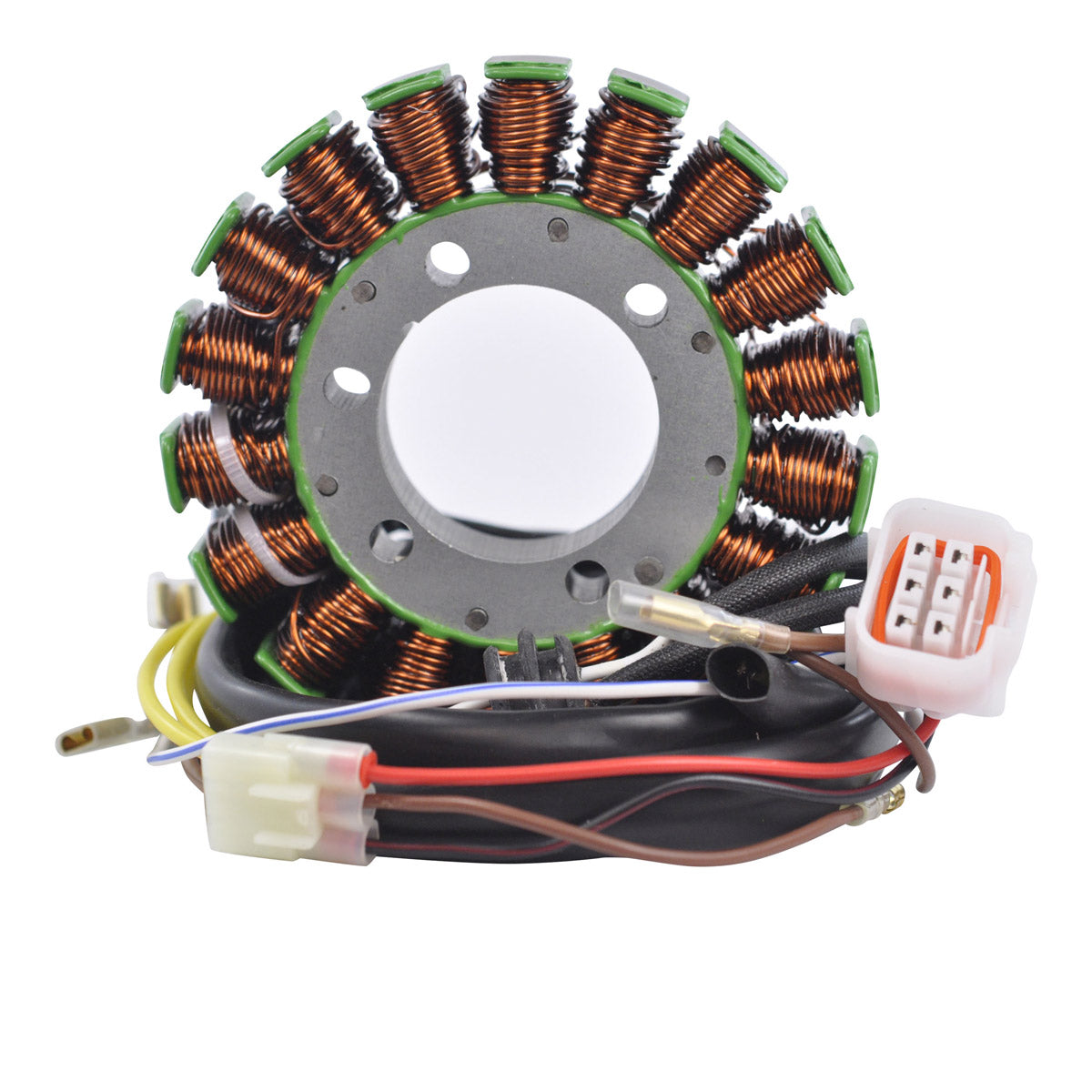

RMStator Generator Stator RM01283
RMStator Generator Stator RM01283
Brand new aftermarket stator
- You must re-install the stator to regulator connector
- Higher grade of electric components.
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 108 mm
Thickness: 19 mm
Other specifications:
Number of wires: 11
Number of plugs: 6
Number of pins: 9
Harness length Stator to grommet: 100 mm
Harness length grommet to plug: 1000 mm
Pickup coil`s wire length to grommet: 150 mm
Wire to wire resistance:
Alternator: Yellow between each yellow = 0.4 ohms +/-20%
Pickup: White to white/red = 100 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01283
Fitment:
- 2005 Polaris ATP 500 4x4 HO
- 2012-2014 Polaris Hawkeye 400 HO
- 2010-2014 Polaris Ranger 400 4X4 Carb
- 2004 Polaris Ranger 425 2x4
- 2005-2008 Polaris Ranger 500 Carb
- 2004 Polaris Ranger 500 4X4
- 2009 Polaris Ranger 500 4x4 EFI
- 2004 Polaris Ranger 500 6x6
- 2007-2008 Polaris Scrambler 500 2x4 Intl
- 2004-2012 Polaris Scrambler 500 4X4
- 2010-2012 Polaris Scrambler 500 4X4 Intl
- 2005 Polaris Sportsman 400 F/C Carb
- 2004 Polaris Sportsman 400 4X4 F/C Carb
- 2006-2007 Polaris Sportsman 450 4X4
- 2004-2005 Polaris Sportsman 500 4X4
- 2004-2005 Polaris Sportsman 500 4x4 HO
- 2012 Polaris Sportsman 500 4x4 HO
- 2006 Polaris Sportsman 500 4x4 HO Carb
- 2008-2009 Polaris Sportsman 500 4x4 HO Carb
- 2006 Polaris Sportsman 500 4x4 HO EFI
- 2007-2008 Polaris Sportsman 500 6x6
- 2012-2013 Polaris Sportsman 500 Forest HO
- 2013 Polaris Sportsman 500 Touring EFI
Note: Image is for reference only, actual product may vary slightly.
