RMStator Generator Stator RM01285
Customer Ratings
RMStator Generator Stator RM01285
RMStator Generator Stator RM01285

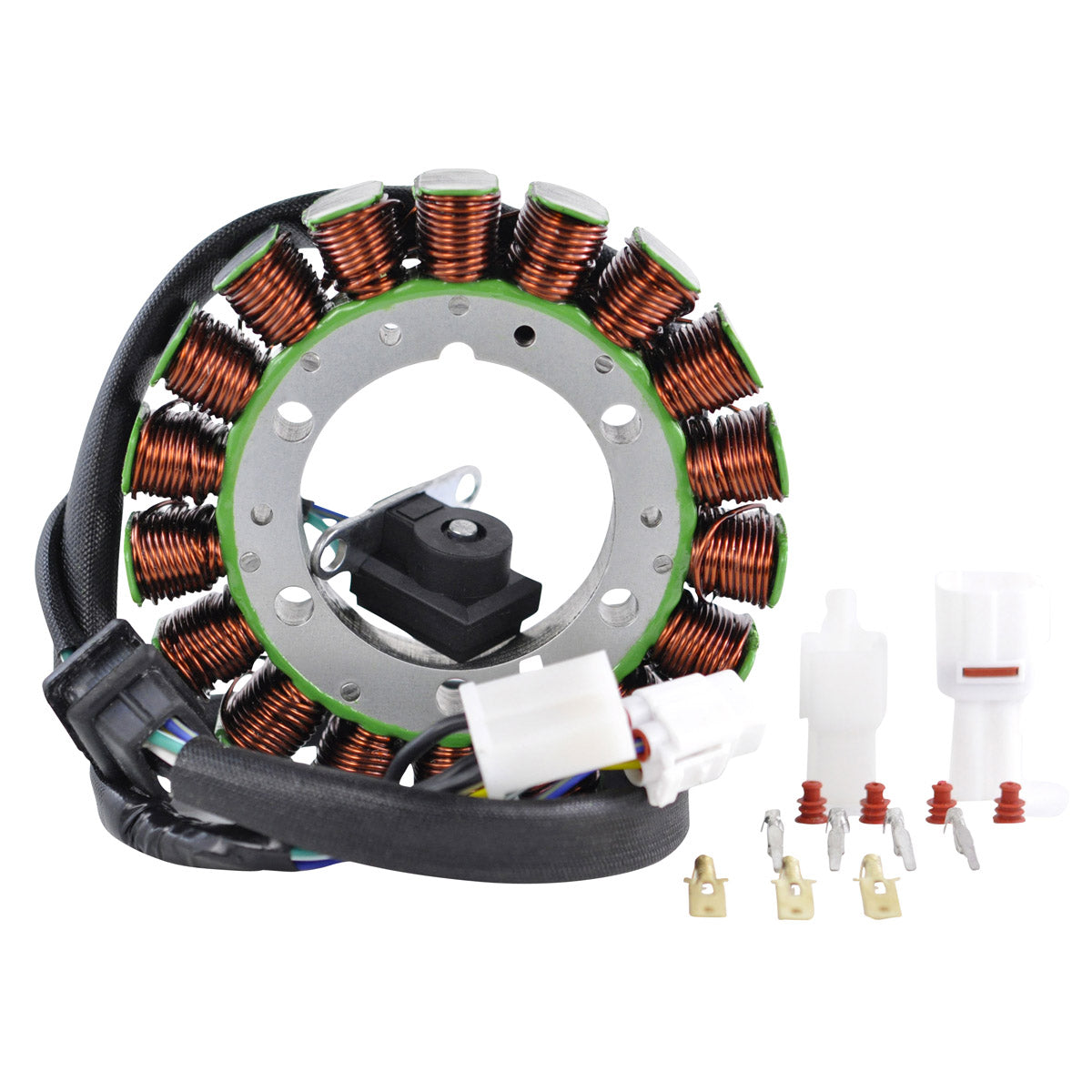

Brand new generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54mm
Exterior diameter : 114mm
Thickness : 18mm
Length of wires stator to grommet : 140mm
Length of wires grommet to plug : 320mm
Length of pickup coil's wire to grommet : 95mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Black between each Black = 0.4ohms +/-20%
Pickup : Blue to Green = 185 ohms +/-20%
Position Sensor : White to Yellow = 0.2ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01285
Fitment:
- 2011-2012 Arctic Cat 350 4x4 Automatic CR
- 2008-2011 Arctic Cat 366 4x4 Automatic
- 2013-2015 Arctic Cat 400 2x4 Automatic
- 2009-2011 Arctic Cat 400 TRV
- 2013-2014 Arctic Cat 400 TRV
- 2011-2012 Arctic Cat 425 4x4 CR EFI
- 2010-2012 Arctic Cat 450 4X4
- 2011-2012 Arctic Cat 450 4x4 TRV EFI
- 2013-2015 Arctic Cat 450 CR
- 2013-2017 Arctic Cat 500 4x4 Automatic
- 2013-2015 Arctic Cat 500 4x4 TRV
- 2016-2017 Arctic Cat Alterra 400 4X4
- 2016 Arctic Cat Alterra 450
- 2019 Arctic Cat Alterra 450
- 2016-2018 Arctic Cat Alterra 500 4X4
- 2017 Arctic Cat Alterra TRV 500 4X4
- 2011-2017 Arctic Cat XC450 4X4
- 2015 Arctic Cat XR 500 4X4
Note: Image is for reference only, actual product may vary slightly.
