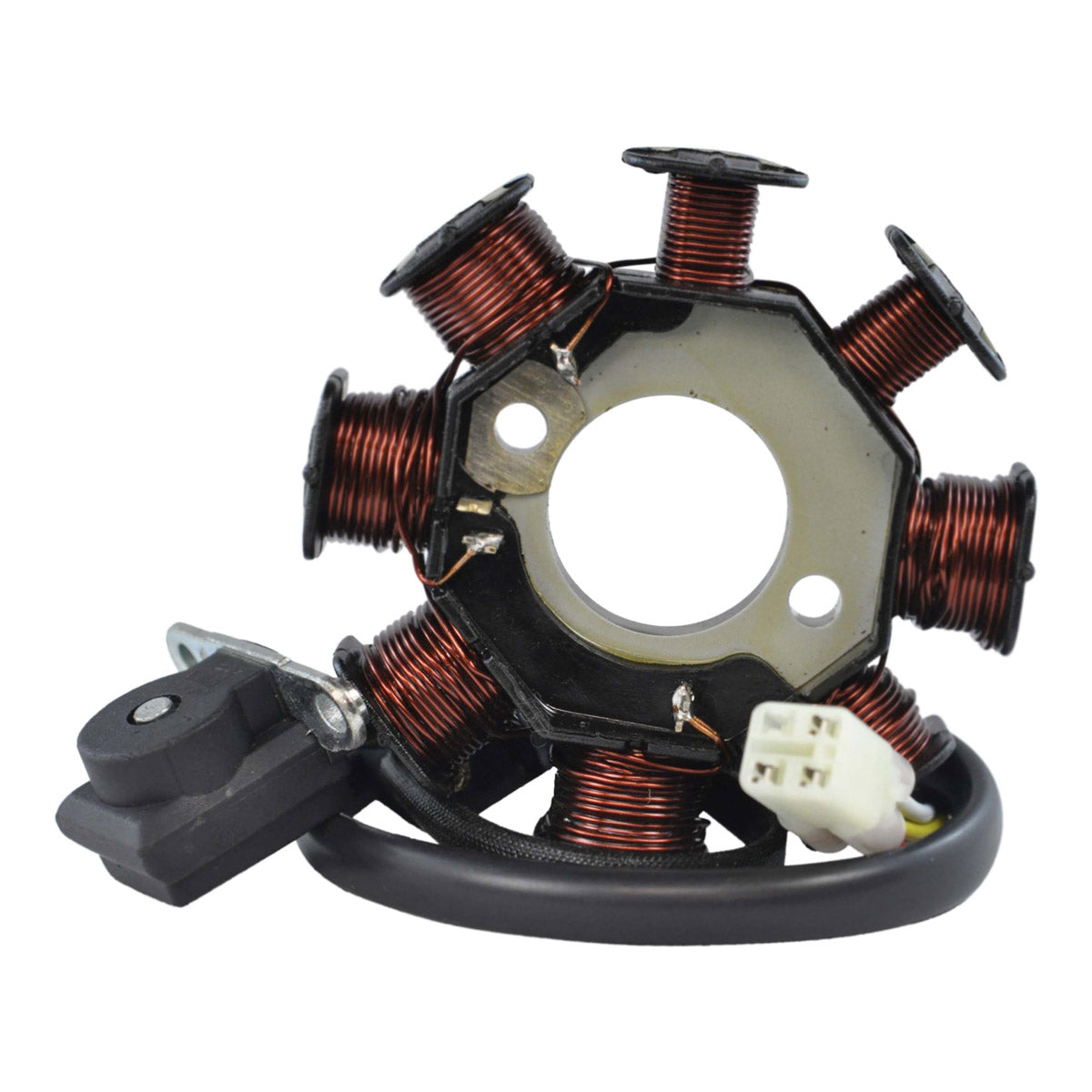

RMStator Stator RM01287

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 28mm
Exterior diameter: 87mm
Thickness: 8mm
Length of wires stator to grommet: 112mm
Length of wires grommet to plug: 325mm
Length of pickup coil's wire to grommet: 25mm

Other Specifications:
Number of wires: 3
Number of plugs: 1
Number of terminals: 3

Wire to wire resistance:

Alternator: Yellow to White = 0.4ohms +/-20%
Pickup: Blue/Yellow to Ground = 110ohms =+/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01287

Fitment:

• 2011-2017 Arctic Cat 90 2x4 4 Stroke
• 2006-2018 Arctic Cat 90 DVX
• 2006-2008 Arctic Cat 90 DVX Utility
• 2018-2019 Arctic Cat Alterra 90

Note: Image is for reference only, actual product may vary slightly.
