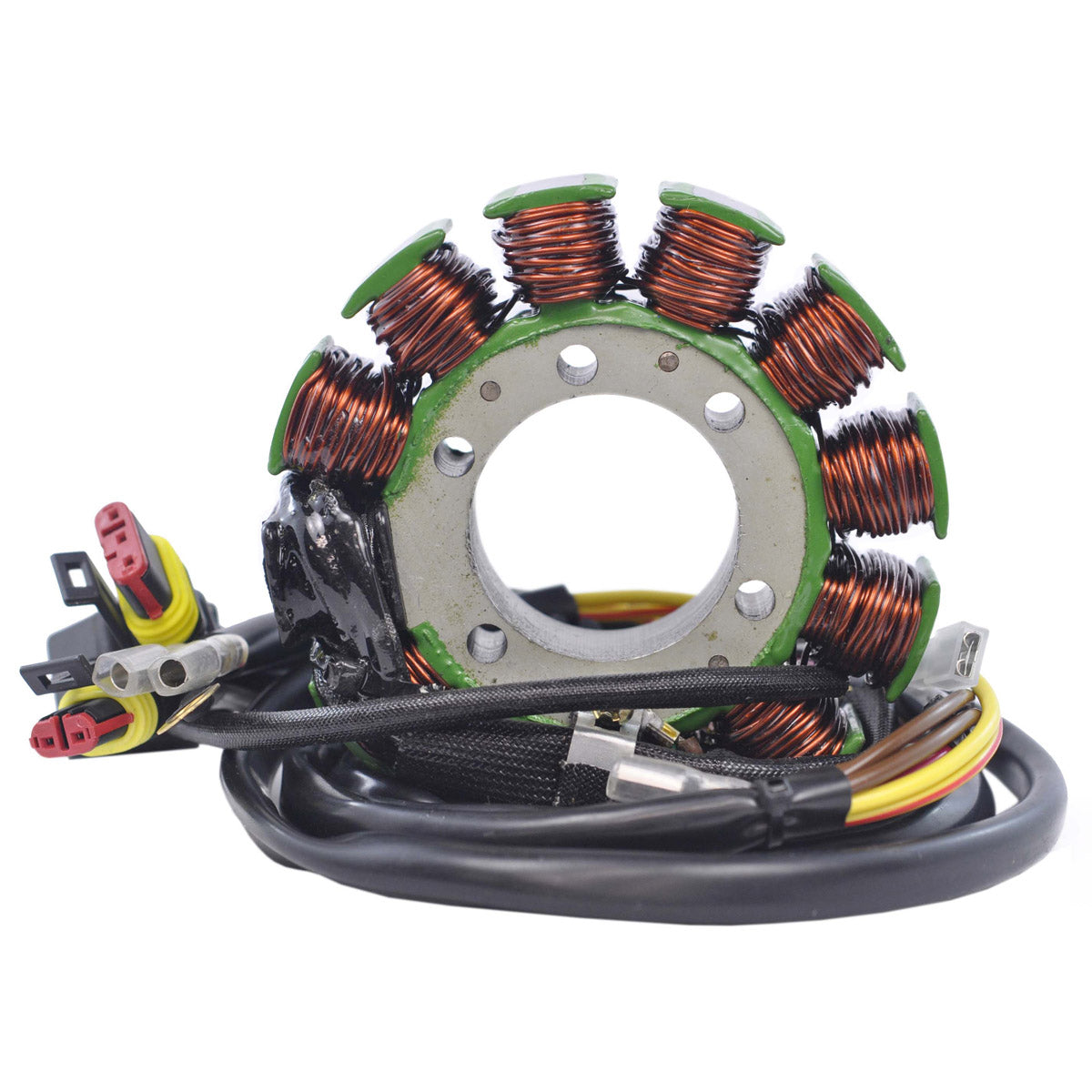

RMStator Stator RM01292

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 40 mm
Exterior diameter : 108 mm
Thickness : 25 mm
Length of wires stator to grommet : 85 mm
Length of wires grommet to plug : 930 mm & 960 mm & 1400 mm
Length of pickup coil's wire to grommet : 160 mm

Other specifications :

Number of wires : 10
Number of plugs : 7
Number of pins : 10

Wire to wire resistance :

Alternator : Yellow to Yellow/Red = 0.4 ohms +/-20%
Alternator : Yellow to Ground = 0.L on display
Pickup : Red to Black = 360 ohms +/-20%
Source : Brown to Yellow = 5.8 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01292

Fitment:

• 2003-2005 Polaris Sportsman 600 Twin
• 2002-2005 Polaris Sportsman 700 Twin Carb
• 2005 Polaris Sportsman MV7

Note: Image is for reference only, actual product may vary slightly.
