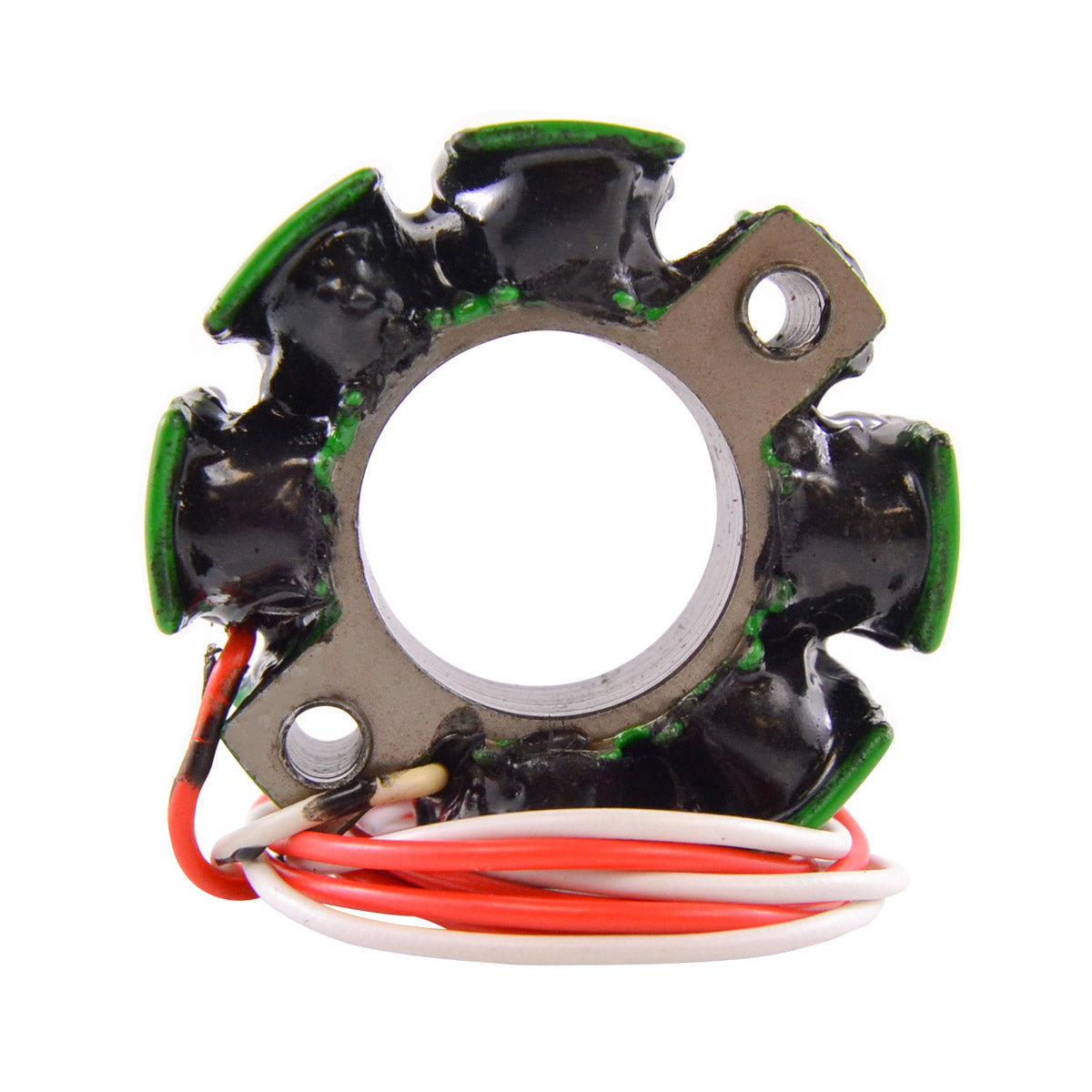

RMStator Stator RM01294
Customer Ratings
RMStator Stator RM01294
RMStator Stator RM01294
Brand new stator
- You must re-install your original grommet and the new connector (see picture).
- Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 16 mm
Length of wires stator to terminals : 75 mm
Other specifications :
Number of wires : 2
Wire to wire resistance :
Source : White to Red = 160 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01294
Fitment:
- 1984-1985 Honda CR125R
- 1984-1985 Honda CR250R
- 1984-1986 Honda CR500R
- 1985-1986 Yamaha YZ250
Note: Image is for reference only, actual product may vary slightly.
