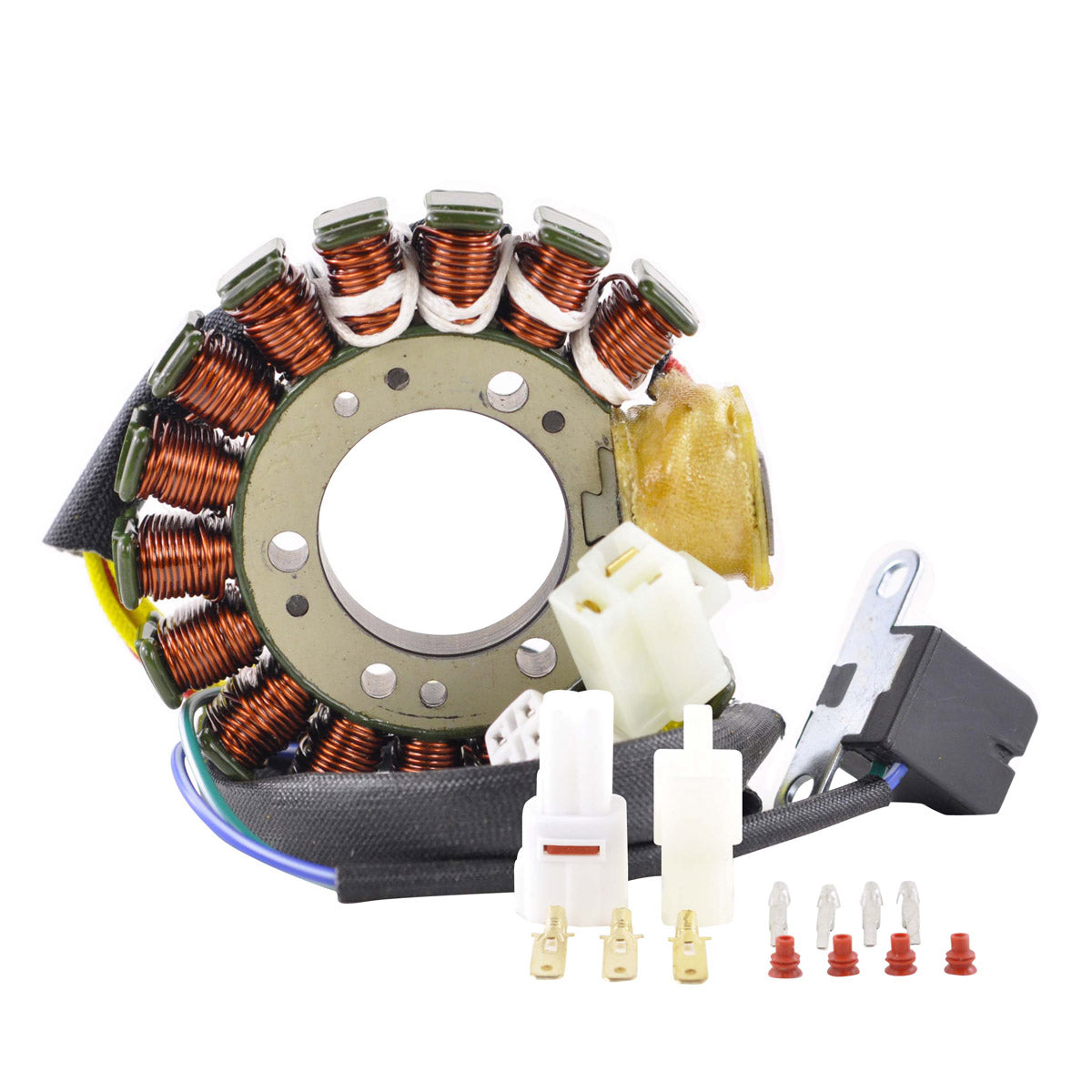

RMStator Stator RM01298
RMStator Stator RM01298
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 33 mm
Exterior diameter : 93 mm
Thickness : 15 mm
Length of wires stator to grommet : 95 mm
Length of wires grommet to plug : 325 mm
Length of pickup coil's wire to grommet : 130 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Alternator : YellowTo Ground = 0.L
Pickup : Green to Blue = 200 ohms +/-20%
Source : Red to White = 320 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01298
Fitment:
- 1999-2000 Yamaha Bear Tracker 250 YFM250B
- 1994-2000 Yamaha Timberwolf 250 YFB250
Note: Image is for reference only, actual product may vary slightly.
