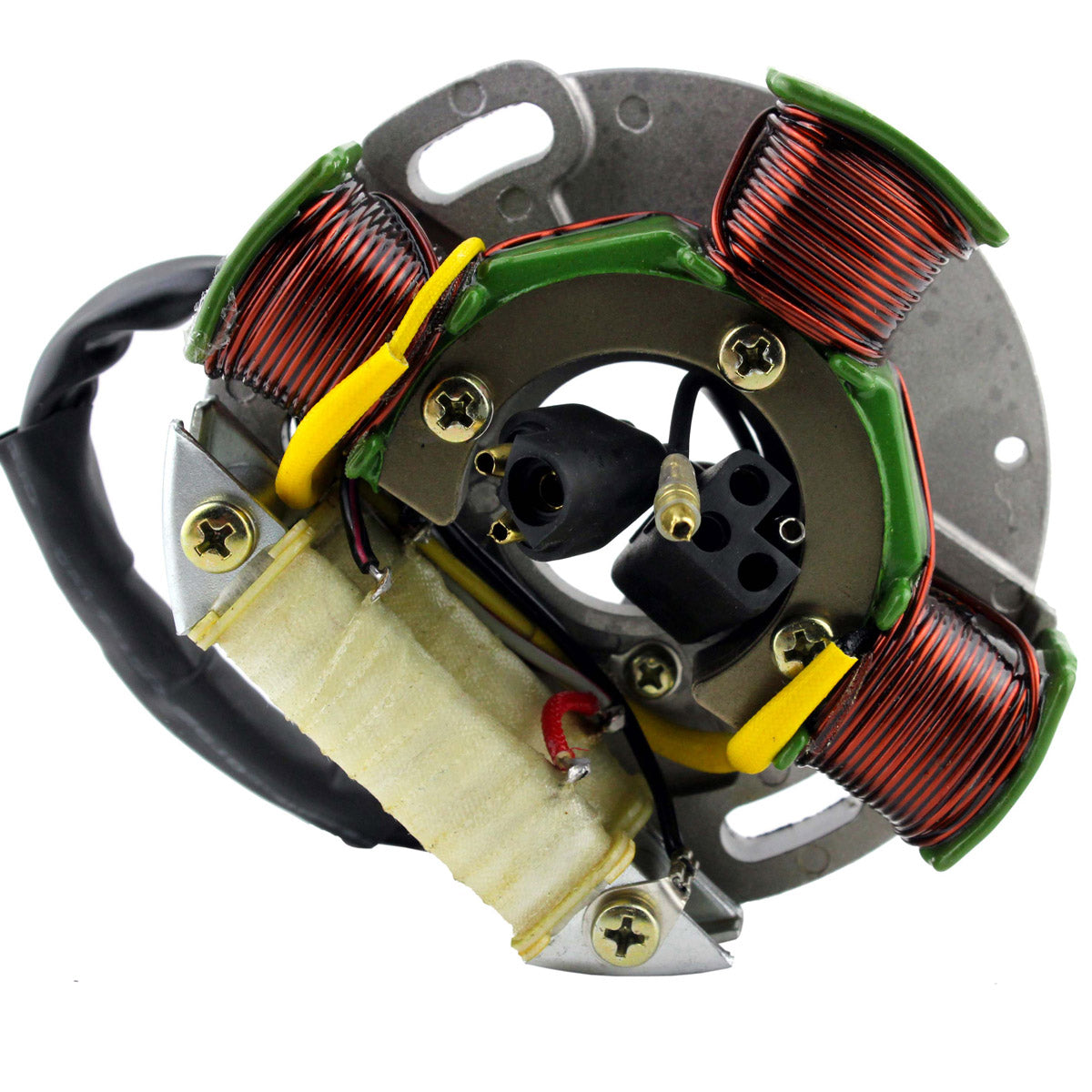

RMStator Stator RM01300

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connector included
• Back Plate included
• All product shipped are tested

Note : There are 2 possible stators for the OEM 3005-346, please compare your original part with our picture.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter: 40 mm
Exterior diameter: 113 mm
Thickness: 18 mm
Length of wires stator to plug: 240 mm

Other specifications :

Number of wires: 8
Number of plugs: 2
Number of pins: 8

Wire to wire resistance :

Alternator: Yellow to Yellow = 0.5 ohms +/-20%
Source: Black/Red to Black/White = 200 ohms +/-20%
Source 2: White/Red to Black/Red = 20 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01300

Fitment:

• 1995-1999 Arctic Cat Bearcat 340 Carb F/C
• 1995-1998 Arctic Cat Bearcat 440 Carb F/C
• 1995-2002 Arctic Cat Bearcat 550 Carb L/C
• 1994 Arctic Cat Cheetah 340 Carb F/C
• 1994 Arctic Cat Cheetah 440 Carb F/C
• 1986-1990 Arctic Cat Cheetah 500 FC Carb
• 1986-1988 Arctic Cat Cheetah 530 LC Carb
• 1994 Arctic Cat Cheetah 550 Carb L/C
• 1985-1990 Arctic Cat Cougar 500 Carb F/C
• 1995-1998 Arctic Cat Cougar 550 Carb L/C
• 1989-1990 Arctic Cat Cougar Mountain Cat 500 Carb F/C
• 1995-1998 Arctic Cat Cougar Mountain Cat 550 Carb L/C
• 1987-1988 Arctic Cat El Tigre 5000 Carb L/C
• 1984-1989 Arctic Cat El Tigre 6000 LC Carb
• 1989-1991 Arctic Cat El Tigre EXT 530 Carb L/C
• 1989-1991 Arctic Cat El Tigre EXT Mountain Cat 530 Carb L/C
• 1992-1993 Arctic Cat EXT 550 Carb L/C
• 1992-1993 Arctic Cat EXT 550 Mountain Cat Carb L/C
• 1991-1992 Arctic Cat EXT 550 Special Carb L/C
• 1993-1996 Arctic Cat EXT 580 Carb L/C
• 1993-1994 Arctic Cat EXT 580 Mountain Cat Carb L/C
• 1995-1997 Arctic Cat EXT 580 Powder Special Carb L/C
• 1989-1993 Arctic Cat Jag AFS 440 Carb F/C
• 1990-1991 Arctic Cat Jag Mountain Cat 340 Carb F/C
• 1993-1994 Arctic Cat Jag Z 440 Carb F/C
• 1987-1990 Arctic Cat Jag 340 Carb F/C
• 1997-1998 Arctic Cat Jag 340 Carb F/C
• 1998 Arctic Cat Jag 340 Deluxe Carb F/C
• 1985-1988 Arctic Cat Jag 440 Carb F/C
• 1992-1998 Arctic Cat Jag 440 Carb F/C
• 1990-1994 Arctic Cat Jag 440 Deluxe Carb F/C
• 1998 Arctic Cat Jag 440 Deluxe Carb F/C
• 1992-1993 Arctic Cat Lynx Mountain Cat 340 Carb F/C
• 1991-1993 Arctic Cat Lynx 340 Carb F/C
• 1985 Arctic Cat Pantera 440 Carb F/C
• 1998 Arctic Cat Pantera 440 Carb F/C
• 1986-1989 Arctic Cat Pantera 440 Carb L/C
• 2002-2005 Arctic Cat Pantera 550 Carb L/C
• 1998-1999 Arctic Cat Panther 340 Carb F/C
• 1985 Arctic Cat Panther 440 Carb F/C
• 1989-1998 Arctic Cat Panther 440 Carb F/C
• 1990-1991 Arctic Cat Panther 440 Mountain Cat Carb F/C
• 1986-1988 Arctic Cat Panther 500 Carb F/C
• 1999 Arctic Cat Panther 550 Carb F/C
• 1997-2001 Arctic Cat Panther 550 Carb L/C
• 1991-1992 Arctic Cat Prowler Special 440 Carb L/C
• 1995 Arctic Cat Prowler 550 4x4 Flatbed Carb L/C
• 1994-1997 Arctic Cat Puma 340 Carb F/C
• 1987-1992 Arctic Cat Super Jag 440 Carb F/C
• 1989-1990 Arctic Cat Wildcat 650 Carb L/C
• 1989-1990 Arctic Cat Wildcat 650 Mountain Cat Carb L/C
• 1991-1993 Arctic Cat Wildcat 700 Carb L/C
• 1991-1993 Arctic Cat Wildcat 700 Mountain Cat Carb L/C
• 1995-1998 Arctic Cat Z 440 Carb F/C
• 2000-2003 Arctic Cat ZL 550 Carb L/C
• 2000-2003 Arctic Cat ZL 550 ESR Carb L/C
• 1993-1997 Arctic Cat ZR 440 Carb L/C
• 1993-1996 Arctic Cat ZR 580 Carb L/C
• 1994-1995 Arctic Cat ZR 700 Carb L/C

Note: Image is for reference only, actual product may vary slightly.
