RMStator Generator Stator RM01323
Customer Ratings
RMStator Generator Stator RM01323
RMStator Generator Stator RM01323

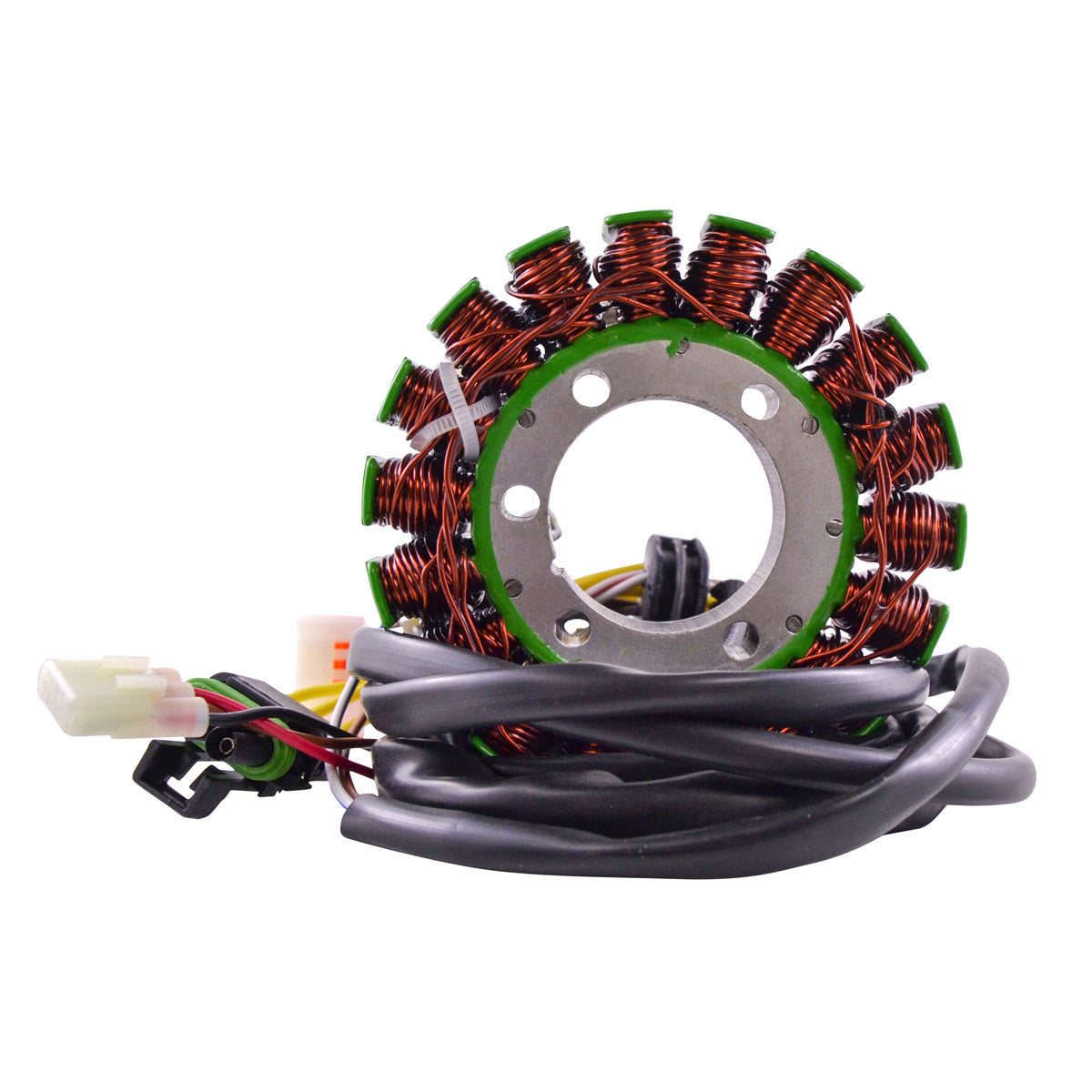

Brand new generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 108 mm
Thickness : 18 mm
Length of wires stator to grommet : 145 mm
Length of wires grommet to plug : 950 mm
Length of pickup coil's wire to grommet : 95 mm
Other specifications :
Number of wires : 7
Number of plugs : 5
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Pickup : White to White/Red = 195 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01323
Fitment:
- 2009 Polaris Ranger 500 Carb
- 2009 Polaris Scrambler 500 2x4 Intl
- 2009 Polaris Scrambler 500 4X4 Intl
- 2008-2014 Polaris Sportsman 400 HO F/C Carb
- 2011 Polaris Sportsman 500 4x4 HO
- 2010 Polaris Sportsman 500 4x4 HO EFI
- 2010-2012 Polaris Sportsman 500 Touring EFI
Note: Image is for reference only, actual product may vary slightly.
