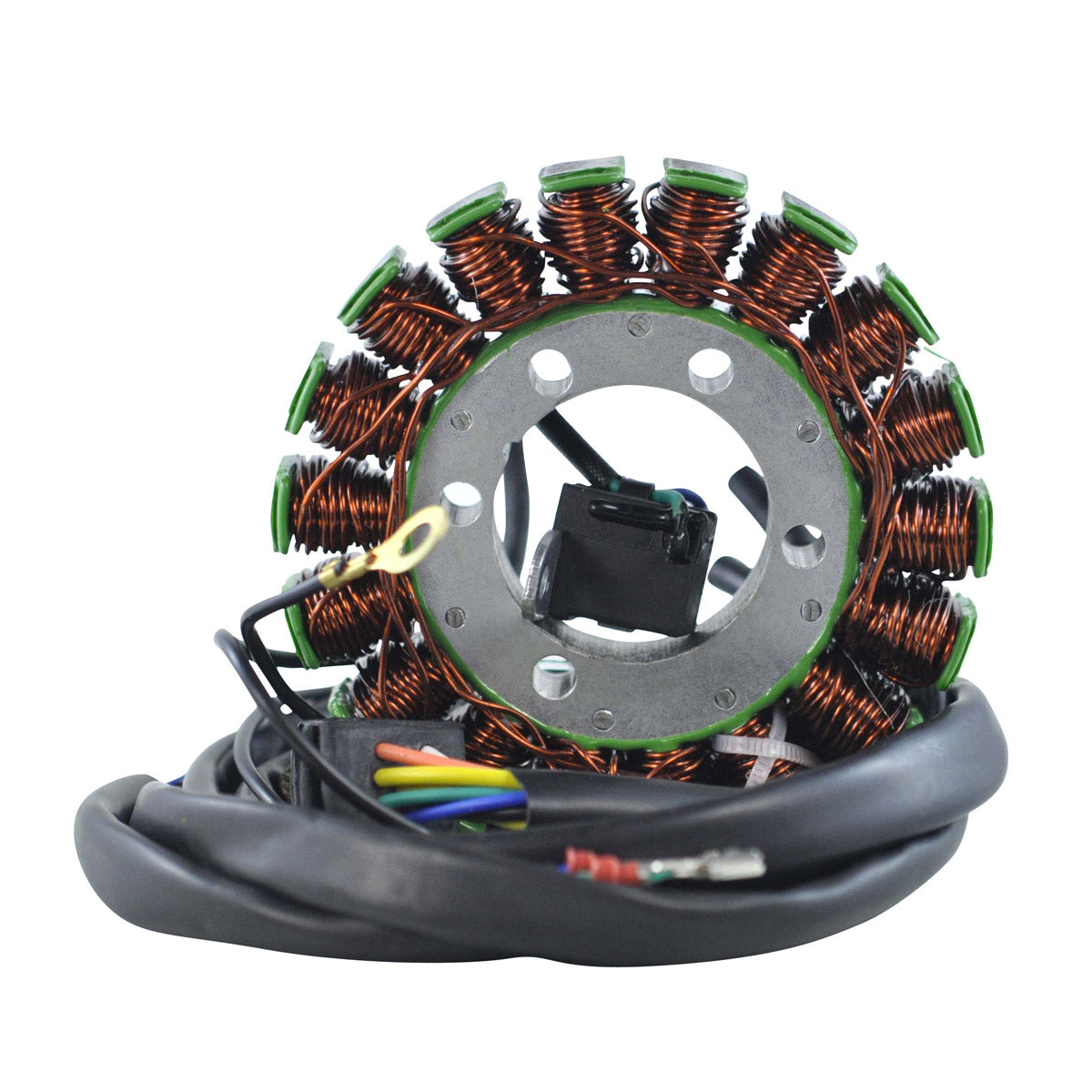

RMStator Generator Stator RM01330
Customer Ratings
RMStator Generator Stator RM01330
RMStator Generator Stator RM01330
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
*This Stator does not include the factory 16 pins connector.
The stator outer diameter is 107 mm, internal diameter is 40 mm, thickness is 18 mm.
Please call for further clarification.
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 40 mm
Exterior diameter : 107 mm
Thickness : 18 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 900 mm & 950 mm & 1200 mm
Length of pickup coil's wire to grommet : 200 mm
Other specifications :
Number of wires : 8
Number of plugs : 11
Number of pins : 11
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = 0.L on display
Pickup : Blue to Green = 200 ohms +/-20%
Source : Red to White = 0.3 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01330
Fitment:
- 2004-2005 Polaris Sportsman 600 Twin
- 2004-2006 Polaris Sportsman 700 Twin Carb
- 2005 Polaris Sportsman MV7
Note: Image is for reference only, actual product may vary slightly.
