RMStator High Output Stator RM01331
Customer Ratings

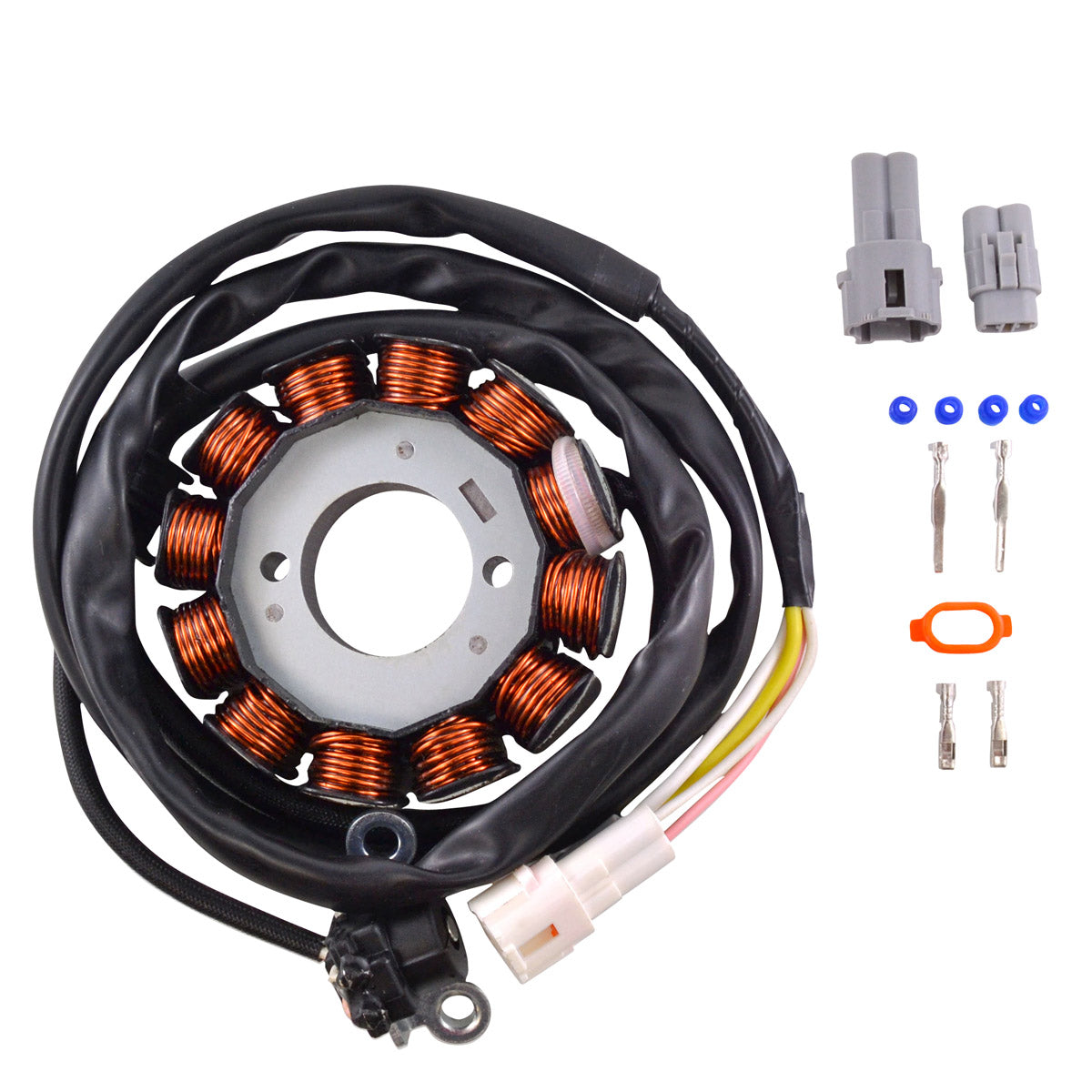

RMStator High Output Stator RM01331
RMStator High Output Stator RM01331
Brand new high output stator
- Direct replacement to your original unit
- Pick up pulsar coil included
- Connector included
- Opposite connector included
- Rubber grommet included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 30 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 180 mm
Length of wires grommet to plug: 980 mm
Length of pickup coil's wire to grommet: 95 mm
Other specifications:
Number of wires: 4
Number of plugs: 2
Number of pins: 4
Wire to wire resistance:
Alternator: White to Yellow = 0.3ohms +/-20%
Pickup: White to Red = 264ohms =+/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01331
Fitment:
- 2004-2009 Yamaha YFZ50
- 2012-2013 Yamaha YFZ50
Note: Image is for reference only, actual product may vary slightly.
