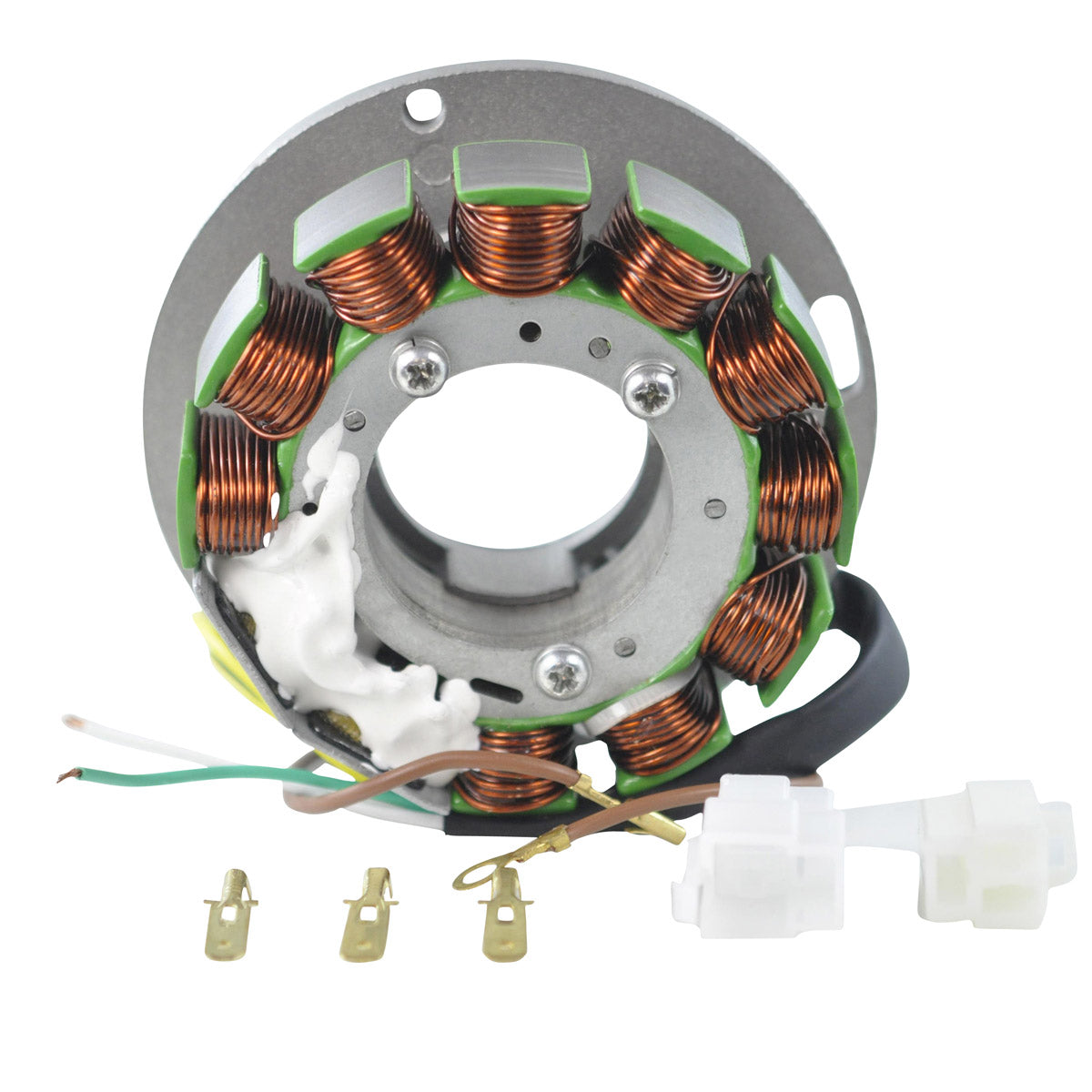

RMStator Stator RM01335
RMStator Stator RM01335
Brand new aftermarket stator
- You must re-install your original connector and grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
- Higher grade of electric components.
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Back Plate included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 44mm
Exterior diameter : 108mm
Thickness : 32mm
Length of wires stator to connector : 250mm
Length of wires stator to terminals : 155mm
Other specifications :
Number of wires : 5
Number of plugs : 1
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Yellow/Black = 0.4ohms +/-20%
Source : White to Green = 275ohms +/-20%
Ground : Ring Terminal on Brown Wire
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01335
Fitment:
- 1991 Ski-doo Alpine II 503 Carb F/C
- 1991 Ski-doo Cheyenne 503 Carb F/C
- 1991 Ski-doo Safari Cheyenne 503 Carb F/C
- 1991-1994 Ski-doo Safari L 377 Carb F/C
- 1991 Ski-doo Safari LX 477 Carb F/C
- 1991 Ski-doo Safari LXE 477 Carb F/C
- 1993-1994 Ski-doo Safari Rally E 503 Carb F/C
- 1991 Ski-doo Safari Scout 377 Carb F/C
- 1991-1994 Ski-doo Safari 377 Carb F/C
- 1991-1992 Ski-doo Scout 377 Carb F/C
- 1992-1994 Ski-doo Skandic II 377 Carb F/C
- 1992-1994 Ski-doo Skandic II 377R Carb F/C
- 1993-1994 Ski-doo Skandic II 503R SLT Carb F/C
Note: Image is for reference only, actual product may vary slightly.
