RMStator Generator Stator RM01338

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 24 mm
Length of Stator to plug : 183 mm
Length of pickup coil's wire to stator : 70 mm

Other specifications :

Number of wires : 6
Number of plugs : 1
Number of pins : 6

Alternator :Yellow between each Yellow = 0.4 ohms +-20%
Pickup :Blue to White = 245 ohms +-20%
Other : Black to Ground = O.L. ON DISPLAY

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01338

Fitment:

• 1999-2005 Bombardier Traxter 500 4x4 Automatic
• 2005 Bombardier Traxter 650 4x4 Auto CVT
• 2003-2005 Bombardier Traxter Max 500 4x4 Automatic
• 2005 Can-Am Traxter 650 4x4 Auto CVT

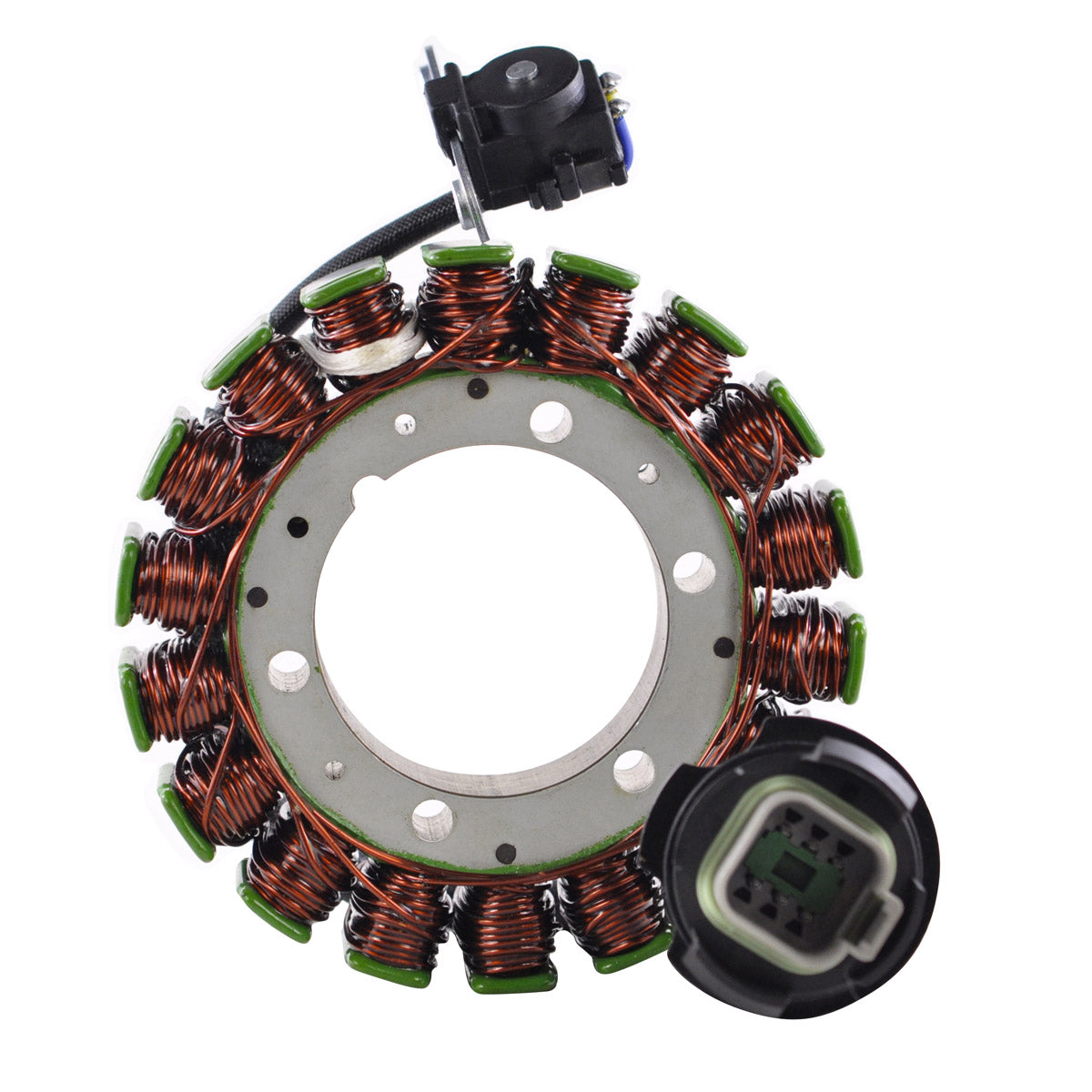

Note: Image is for reference only, actual product may vary slightly.
