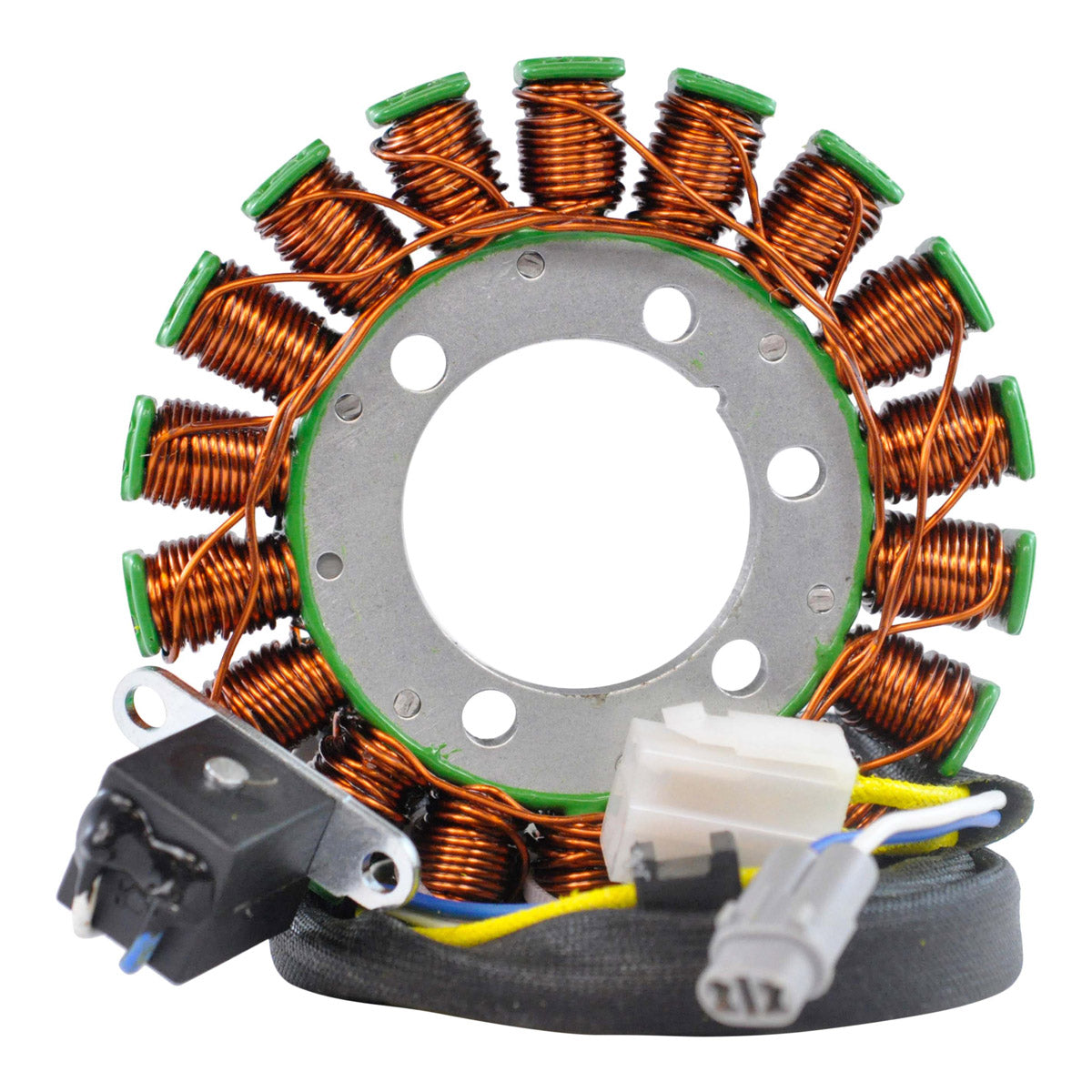

RMStator Stator RM01346

PLEASE NOTE : Our product is slightly different that the OEM part
OEM Part : 107.30mm
Our Part : 102.80mm

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 12 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 380 mm
Length of pickup coil's wire to grommet : 45 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.4 ohms +-20%
Pickup : Blue to Green = 200 ohms +-20%

PLEASE NOTE : Our product is slightly different that the OEM part
OEM Part : 107.30mm
Our Part : 102.80mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01346

Fitment:

• 2006-2009 Suzuki Quadracer 450 LTR450 2x4
• 2006-2009 Suzuki Quadracer 450 LTR450Z 2x4 Special Edition

Note: Image is for reference only, actual product may vary slightly.
