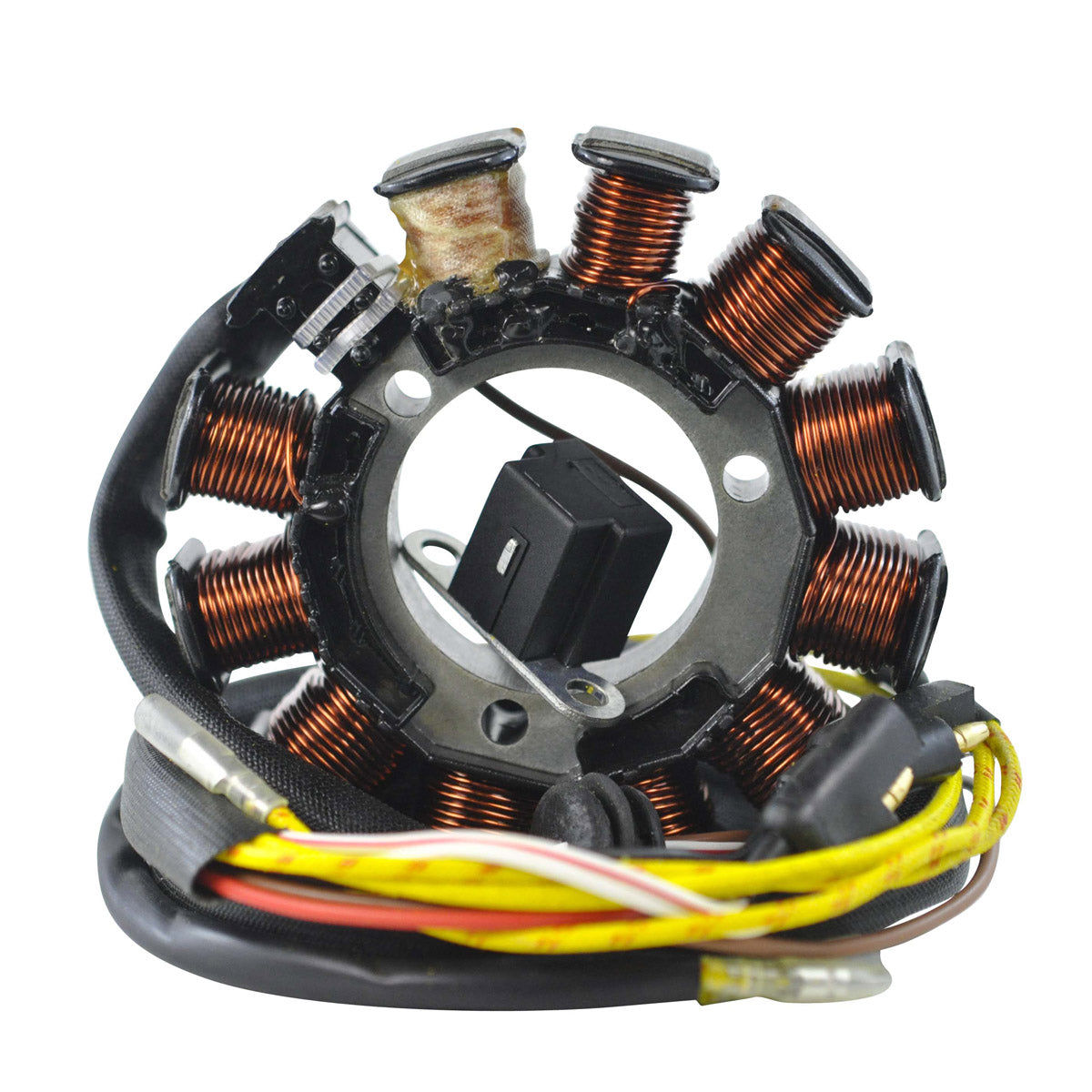

RMStator Stator RM01347

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 48 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to grommet : 135 mm
Length of wires grommet to plug : 1200 mm
Length of pickup coil's wire to grommet : 120 mm

Other specifications :

Number of wires : 9
Number of plugs : 7
Number of pins : 9

Wire to wire resistance :

Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to White = 130 ohms +/-20%
Source : Red to Black = 20 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01347

Fitment:

• 2000 Polaris Big Boss 500 6x6
• 2002 Polaris Big Boss 500 6x6
• 2002 Polaris Magnum 500 2x4
• 2002 Polaris Magnum 500 2x4 HDS
• 2000-2001 Polaris Magnum 500 4X4
• 2000 Polaris Magnum 500 4X4 EB
• 2000-2003 Polaris Magnum 500 4X4 HDS
• 2003 Polaris Ranger 500 6x6 Series 10
• 2001-2002 Polaris Scrambler 500 2x4
• 2000-2002 Polaris Scrambler 500 4X4
• 2000-2002 Polaris Sportsman 500 4X4
• 2001-2002 Polaris Sportsman 500 4x4 HO
• 2002 Polaris Sportsman 500 6x6
• 2001-2002 Polaris Worker 500

Note: Image is for reference only, actual product may vary slightly.
