RMStator Stator RM01349
Customer Ratings
RMStator Stator RM01349
RMStator Stator RM01349
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- All products shipped are tested
THIS STATOR DOES NOT FIT THE 1999 MODEL.
Please compare your original part to the picture, all our pictures are accurate. If in doubt, please email us
*Please compare the connectors of your stator with those of our product before buying because there are two possible stators for the Ski-Doo Grand Touring 700 1998.
*All item pictures are accurate; please compare our item to your original part, what you see in the picture is what will be shipped.
Technical Data
THIS STATOR DOES NOT FIT THE 1999 MODEL.
Dimensions :Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 18mm
Length of wires stator to plug: 350mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4ohms +/-20%
Source : Red to White = 28ohms +/-20%
Source 2: Black/Red to White = 4ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01349
Fitment:
- 1998 Ski-doo Formula III 600 Carb L/C
- 1998 Ski-doo Formula III 700 Carb L/C
- 1998 Ski-doo Formula III 700R Carb L/C
- 2000 Ski-doo Formula III 700R Carb L/C
- 2000 Ski-doo Formula III 800 Carb L/C
- 1998 Ski-doo Grand Touring 700 Carb L/C
- 1998 Ski-doo Mach 1 700 Carb L/C
- 2000 Ski-doo Mach 1 700 Carb L/C
- 1998 Ski-doo Mach Z 800 Carb L/C
- 2000-2003 Ski-doo Mach Z 800 Carb L/C
- 2002 Ski-doo Mach Z 800 Sport Carb L/C

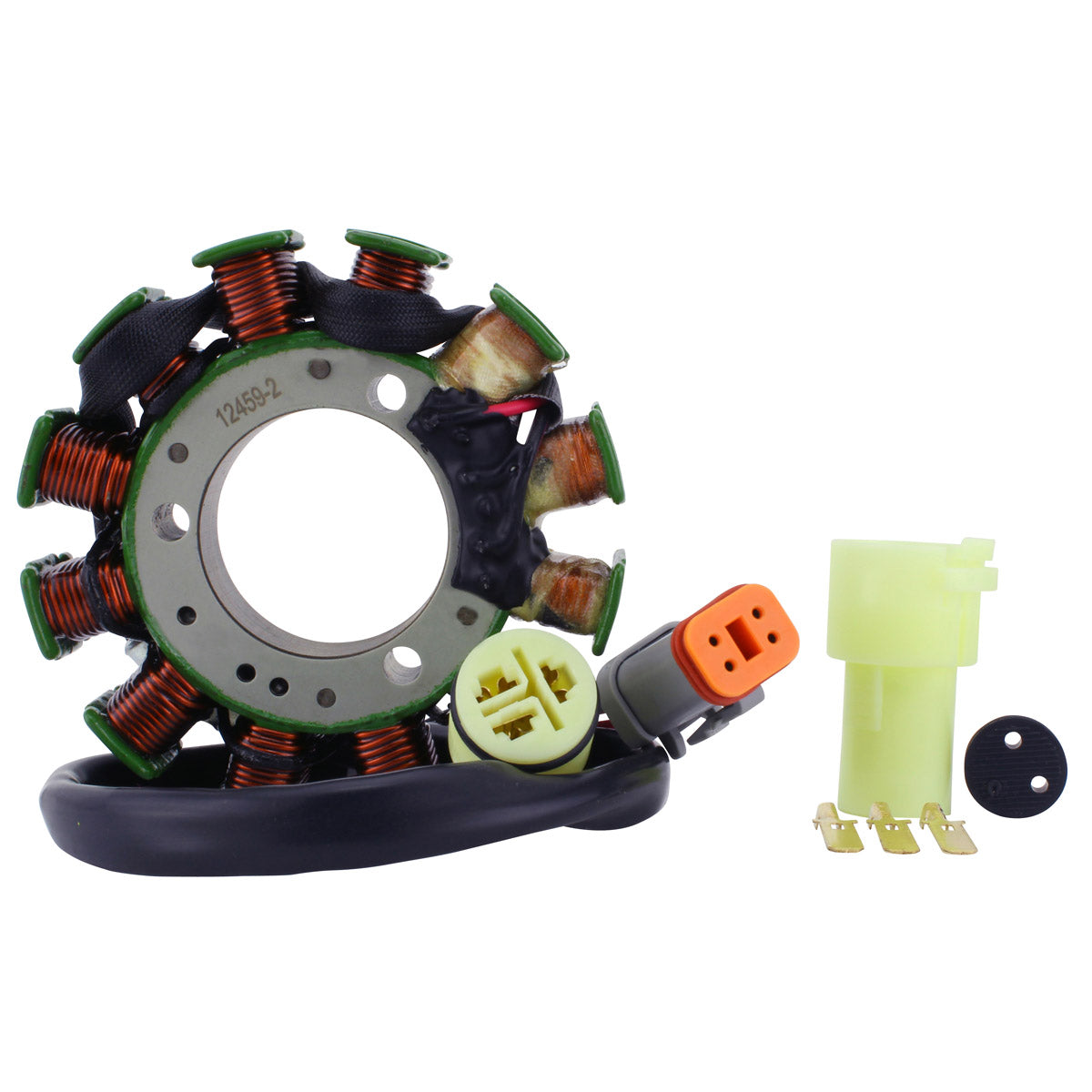

Note: Image is for reference only, actual product may vary slightly.
