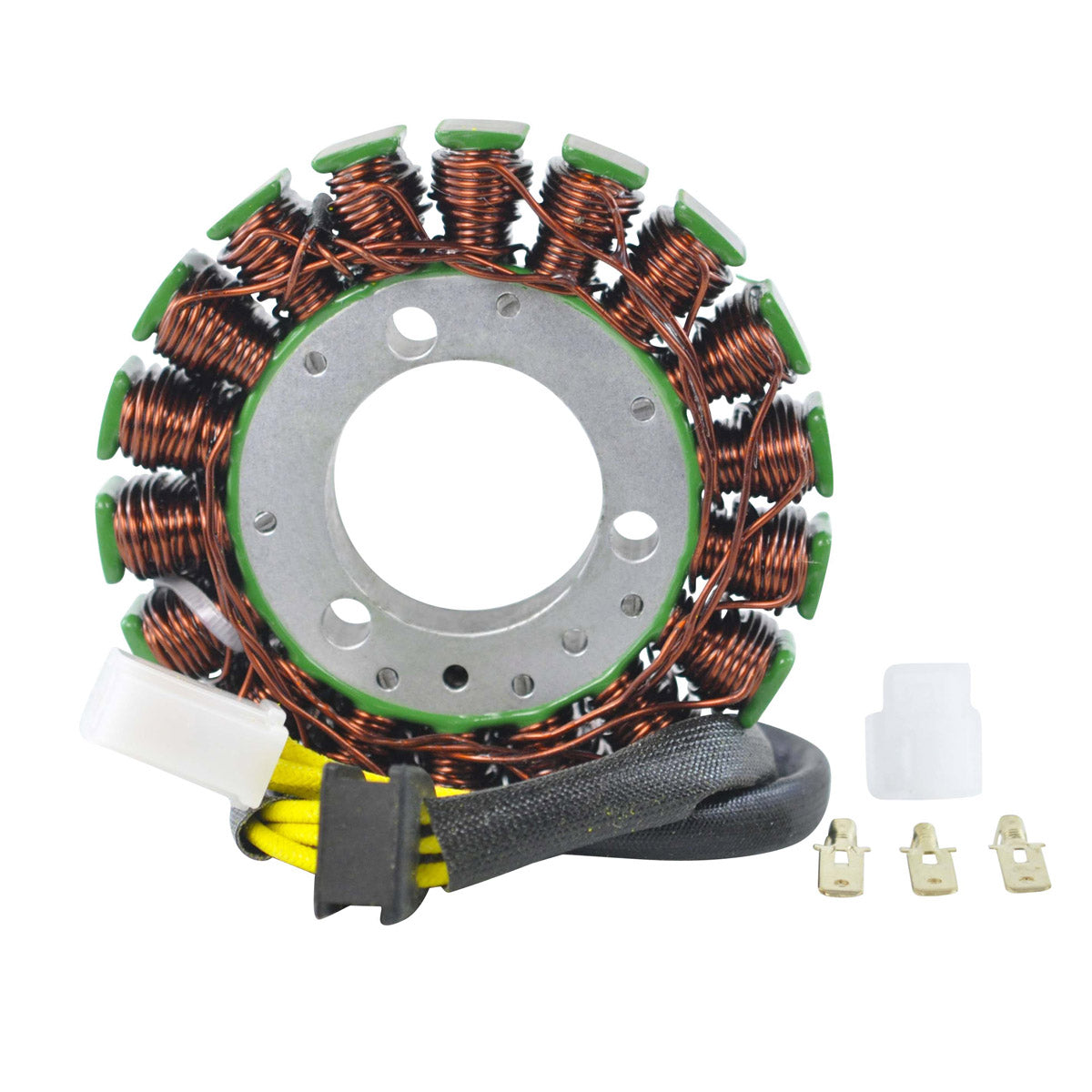

RMStator Generator Stator RM01351
Customer Ratings
RMStator Generator Stator RM01351
RMStator Generator Stator RM01351
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 102 mm
Thickness : 18 mm
Length of wires clamp to grommet : 130 mm
Length of wires grommet to connector : 170 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator 1 : Yellow to Yellow = 0.6 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01351
Fitment:
- 2000-2003 Suzuki GSXR600
- 2000-2003 Suzuki GSXR750
Note: Image is for reference only, actual product may vary slightly.
