RMStator Stator RM01355
Customer Ratings

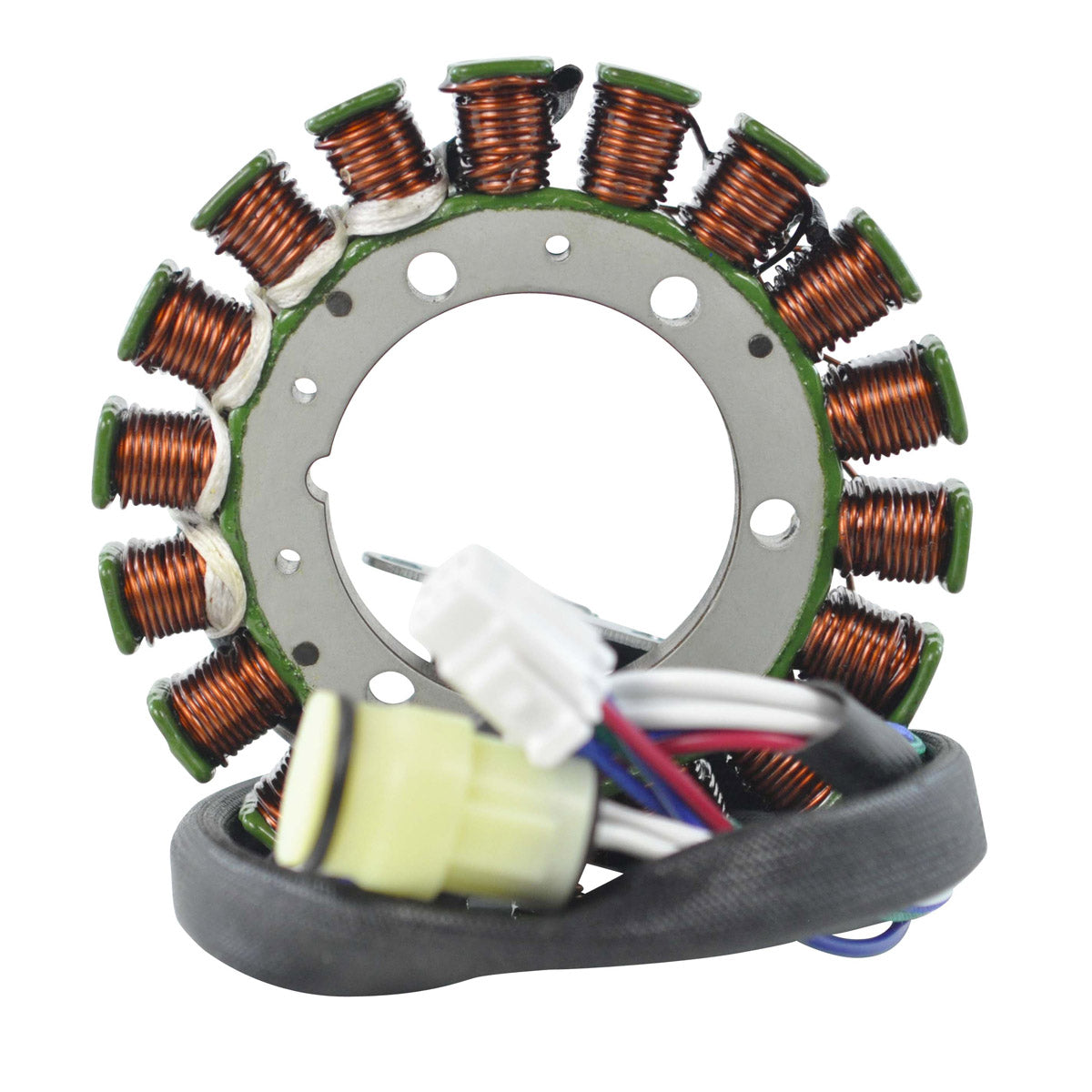

RMStator Stator RM01355
RMStator Stator RM01355
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 380 mm
Length of wires grommet to plug : 410 mm
Length of pickup coil's wire to grommet : 250 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : White between each white = 0.4 ohms +-20%
Pickup : Green to Blue = 450 ohms +-20%
Source : Red to Blue/White = 0.6 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01355
Fitment:
- 2006-2009 Yamaha Rhino 450 YXR450FA 4x4
Note: Image is for reference only, actual product may vary slightly.
