RMStator Stator RM01359
Customer Ratings

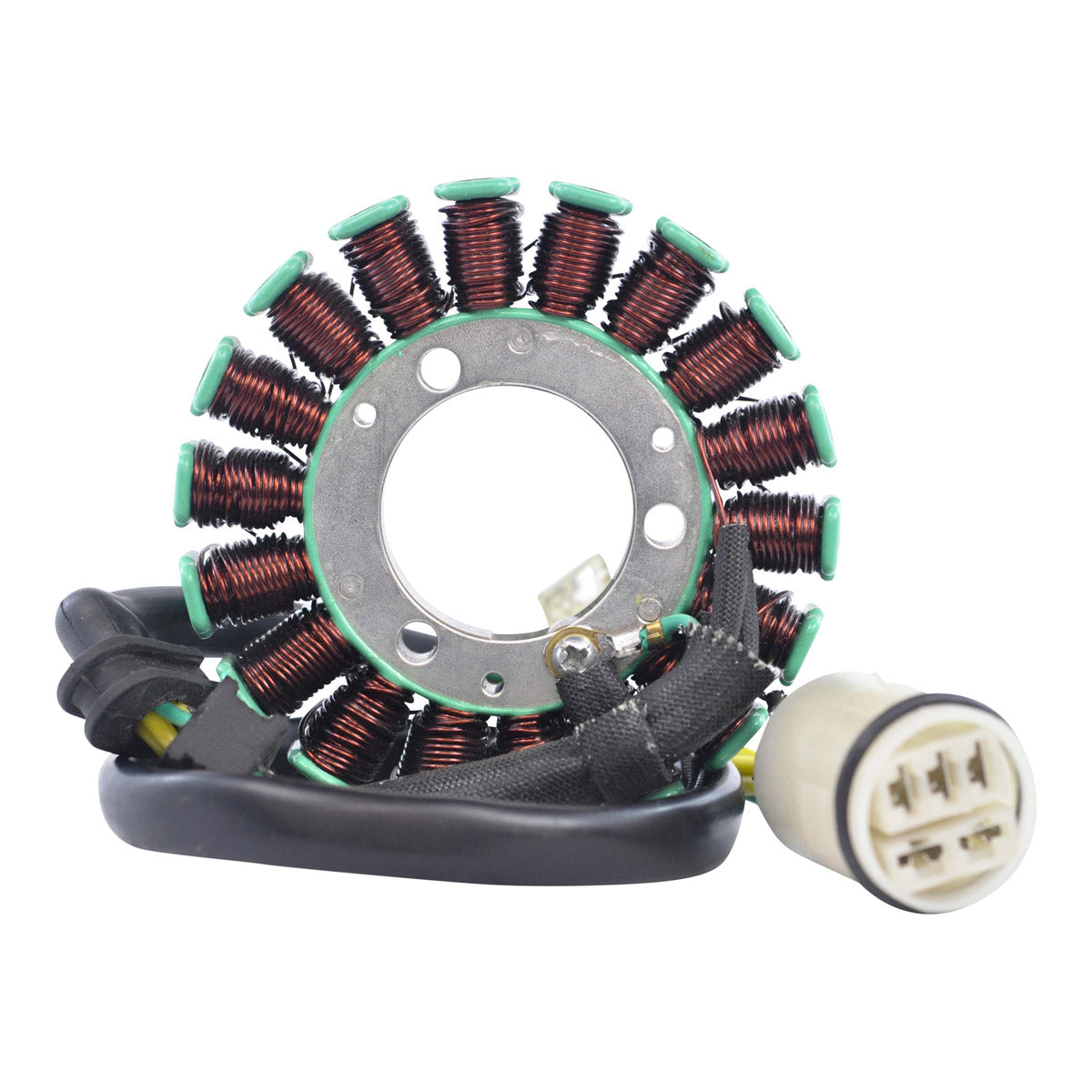

RMStator Stator RM01359
RMStator Stator RM01359
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 93 mm
Thickness: 13 mm
Length of wires stator to grommet: 75 mm
Length of wires grommet to plug: 390 mm
Other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 6
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.4 ohms +/-20%
Alternator: Yellow to ground = O.L
Source: Green to ground = 0.4 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01359
Fitment:
- 2000-2006 Honda Rancher 350 TRX350FE 4x4 ES
- 2000-2006 Honda Rancher 350 TRX350FM 4x4 S
- 2000-2006 Honda Rancher 350 TRX350TE 2x4 ES
- 2000-2006 Honda Rancher 350 TRX350TM 2x4
Note: Image is for reference only, actual product may vary slightly.
