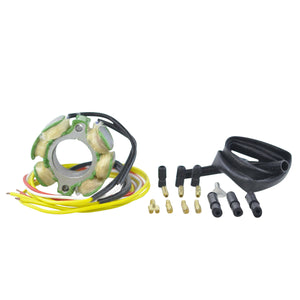

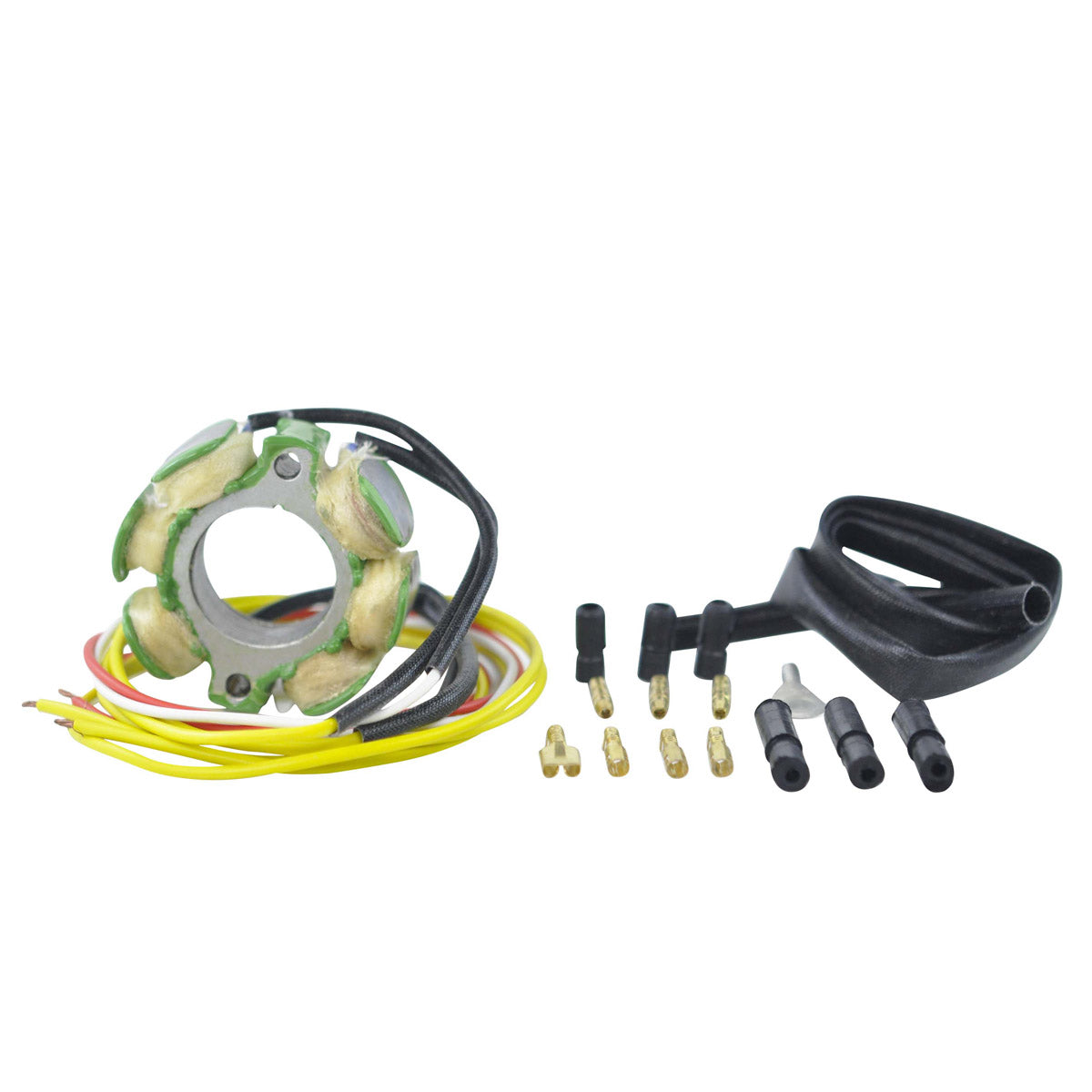

RMStator Kokusan Stator RM01374
Customer Ratings
RMStator Kokusan Stator RM01374
RMStator Kokusan Stator RM01374
*Please compare your original stator with our picture before buying, there are 2 possible stators for some KTM models.
Brand new aftermarket stator
- You must re-install your original connector and grommet (see picture)
- Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install
- Higher grade of electric components
- Highest grade of copper winding, resistant to 200 degrees Celsius
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 16 mm
Length of wires stator to terminals : 640 mm
Other specifications :
Number of wires : 4
Number of plugs : 0
Number of pins : 4
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +/-20%
Source : Red to White = 30 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01374
Fitment:
- 2013-2015 KTM 125 Duke
- 2000 KTM 125 EXC F
- 1998-1999 KTM 125 SX
- 2001-2009 KTM 125 SX
- 2011-2012 KTM 125 SX
- 2005 KTM 125 SXS
- 2008 KTM 125 SXS
- 2009-2015 KTM 150 SX
- 2010-2011 KTM 150 XC
- 2006-2007 KTM 200 Duke
- 1998 KTM 200 EXC
- 2000-2005 KTM 200 EXC
- 1999 KTM 200 MXC
- 2003 KTM 200 SX
- 2006-2007 KTM 200 XC
- 2013-2016 KTM 250 Duke
- 2000 KTM 250 EXC F
- 2002 KTM 250 EXC F
- 2005 KTM 250 EXC F
- 1998 KTM 250 MXC
- 1998-2012 KTM 250 SX
- 2005 KTM 250 SXS
- 1997-2000 KTM 300 EXC
- 2003 KTM 300 EXC
- 2005 KTM 300 EXC
- 2000-2001 KTM 300 EXC F
- 1999-2003 KTM 300 MXC
- 1997 KTM 360 MXC
- 1999 KTM 380 EXC
- 1998-1999 KTM 380 MXC
- 1998-2000 KTM 380 SX
Note: Image is for reference only, actual product may vary slightly.
