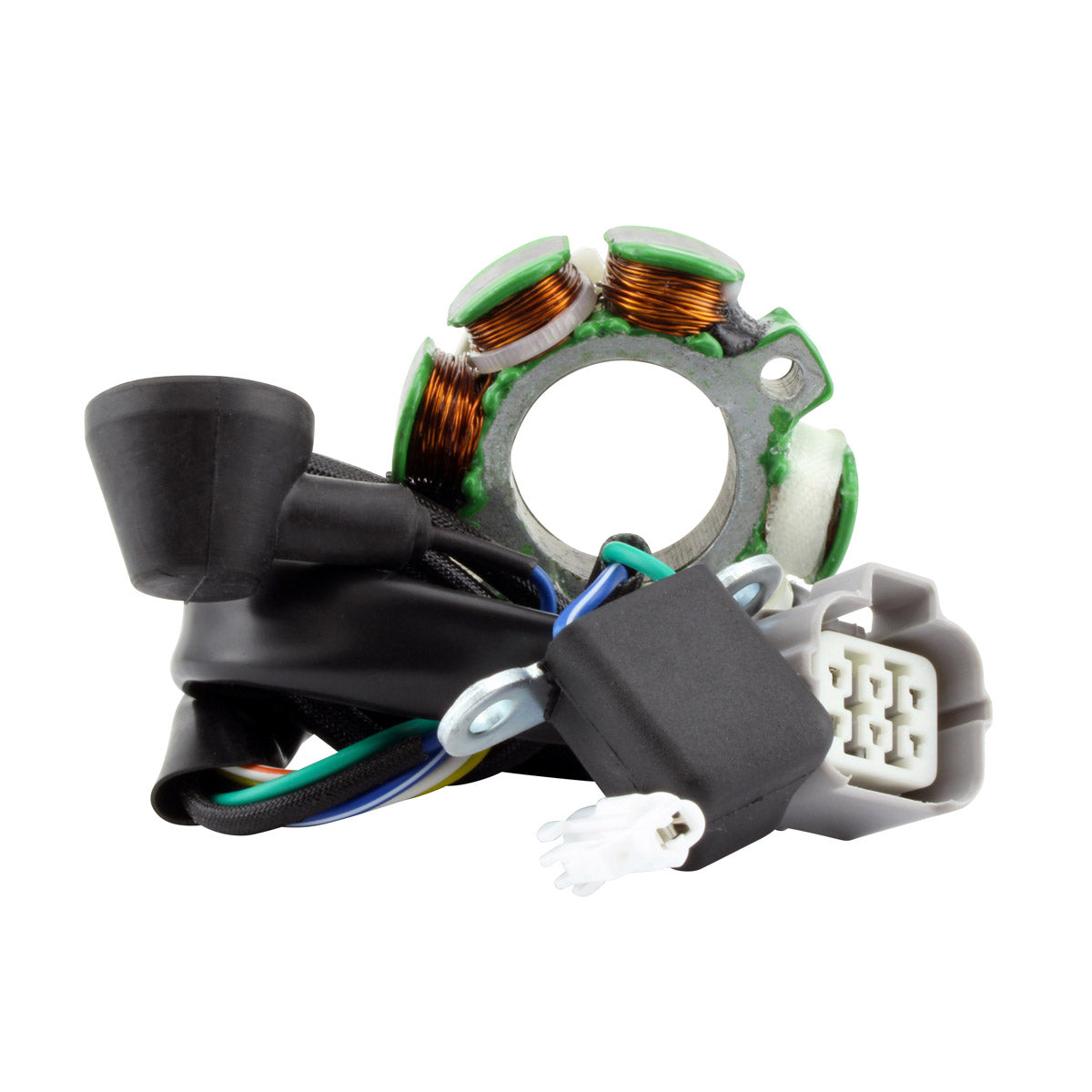

RMStator Stator RM01376
Customer Ratings
RMStator Stator RM01376
RMStator Stator RM01376
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 16 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 375 mm
Length of pickup coil's wire to grommet : 80 mm
Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 7
Wire to wire resistance :
Alternator : White to Yellow = 3.0 ohms +/-20%
Pickup : Green to Blue/White = 120 ohms +/-20%
Source : White/Red to Black/Red = 38 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01376
Fitment:
- 2004-2010 Kawasaki KX250F
- 2004-2006 Suzuki RMZ250
Note: Image is for reference only, actual product may vary slightly.
