RMStator Stator RM01377
Customer Ratings
RMStator Stator RM01377
RMStator Stator RM01377

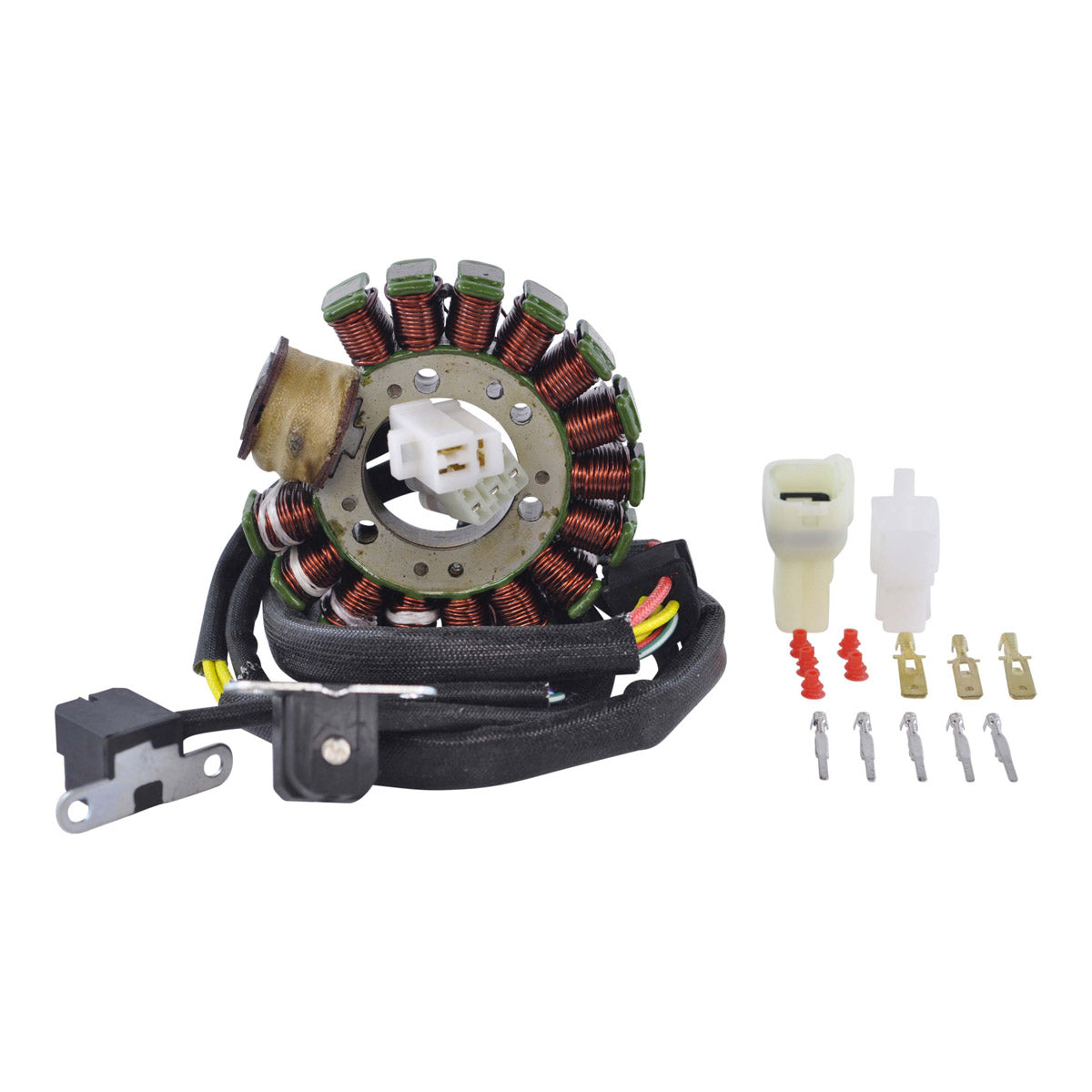

Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 93 mm
Thickness: 16 mm
Length of wires stator to grommet: 280 mm
Length of wires grommet to plug: 500 mm
Length of pickup coil's wire to grommet: 200 mm
Other specifications:
Number of wires: 8
Number of plugs: 2
Number of pins: 8
Wire to wire resistance:
Alternator: = 0.4 ohms +/-20%
Pickup: = 450 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01377
Fitment:
- 1995-1999 Yamaha Wolverine 350 YFM350X
- 1995-1997 Yamaha Wolverine 350 YFM350X Maine NH
Note: Image is for reference only, actual product may vary slightly.
