RMStator Stator RM01380
Customer Ratings
RMStator Stator RM01380
RMStator Stator RM01380

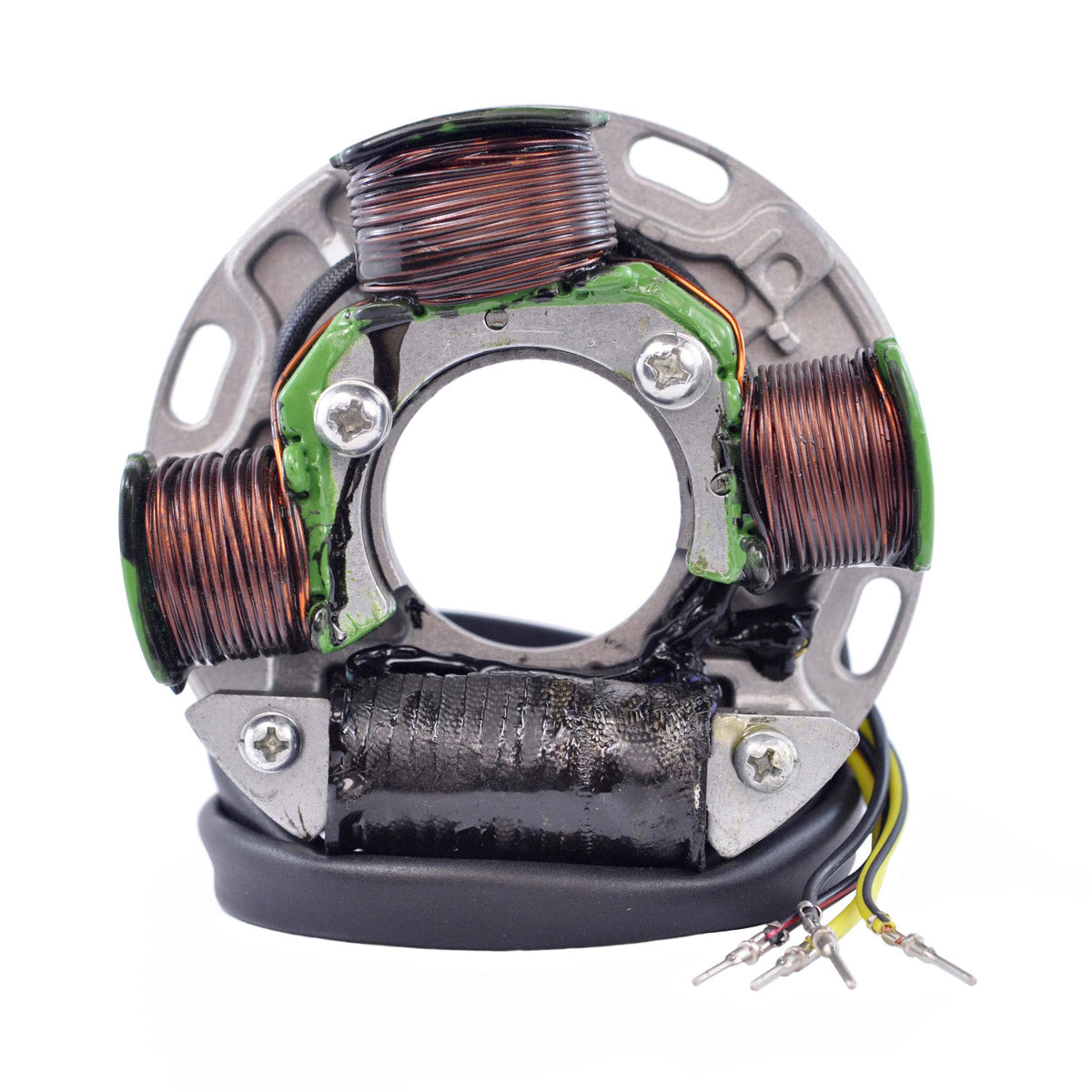

Brand new aftermarket stator
- You must re-install your original connector and grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
- Higher grade of electric components.
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Back Plate included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 40 mm
Exterior diameter : 110 mm
Thickness : 27 mm
Length of wires stator to terminals : 515 mm
Other specifications :
Number of wires : 4
Number of plugs : 0
Number of pins : 4
Wire to wire resistance :
Alternator : Yellow to Yellow/Black = 0.4 ohms +/-20%
Source : Black to Black/Red = 67 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01380
Fitment:
- 1995-1996 Sea-doo Explorer 650 cc 72 hp
- 1997 Sea-doo Explorer 718 cc 85 hp
- 1997-2001 Sea-Doo GS 720
- 1997 Sea-Doo GSI 720
- 1999-2005 Sea-Doo GTI 720
- 2002-2004 Sea-Doo GTI LE 720
- 1998-2000 Sea-Doo GTS 720
- 1995 Sea-Doo GTX 650
- 1995-1997 Sea-Doo HX 720
- 1995-1996 Sea-Doo SP 580
- 1997 Sea-Doo SP 720
- 1995 Sea-doo Speedster 1300 cc 160 hp
- 1996-1997 Sea-doo Speedster 1436 cc 170 hp
- 1995-1996 Sea-Doo SPI 580
- 1995 Sea-doo Sportster 650 cc 80 hp
- 1996-1997 Sea-doo Sportster 718 cc 85 hp
- 1995 Sea-Doo SPX 650
- 1996 Sea-Doo SPX 720
- 1997 Sea-Doo SPX 780
- 1995 Sea-Doo XP 720
Note: Image is for reference only, actual product may vary slightly.
