RMStator Generator Stator RM01389
Customer Ratings
RMStator Generator Stator RM01389
RMStator Generator Stator RM01389
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side), as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 115 mm
Exterior diameter : 42 mm
Thickness : 21 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 140 mm
Length of pickup coil's wire to grommet : 105 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Between each Black = 0.5 ohms +/-20%
Pickup : Green to Blue = 230 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01389
Fitment:
- 2006-2020 Triumph Daytona 675
- 2008-2017 Triumph Street Triple 675
- 2008-2020 Triumph Street Triple R 675
- 2019-2020 Triumph Street Triple S ABS 765

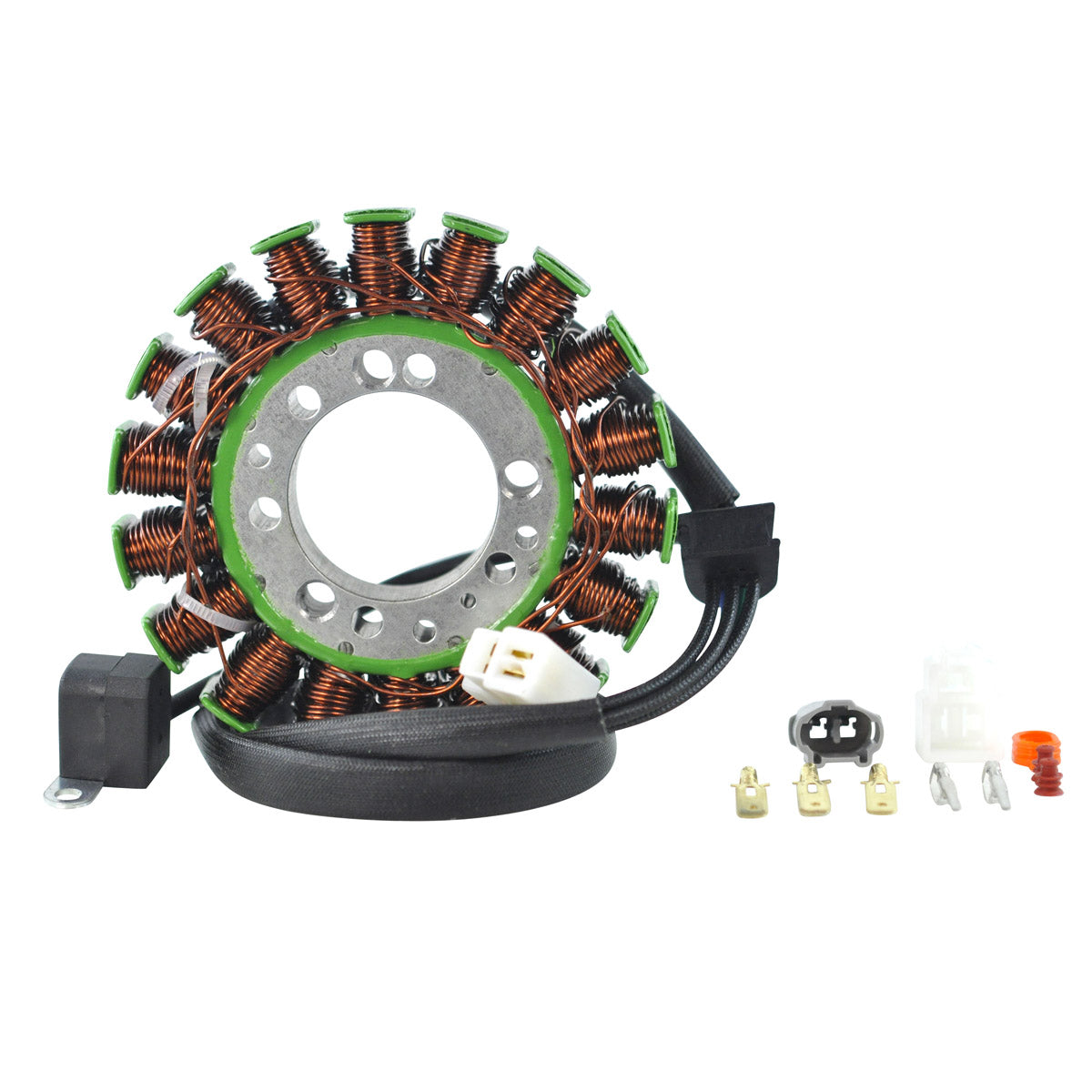

Note: Image is for reference only, actual product may vary slightly.
