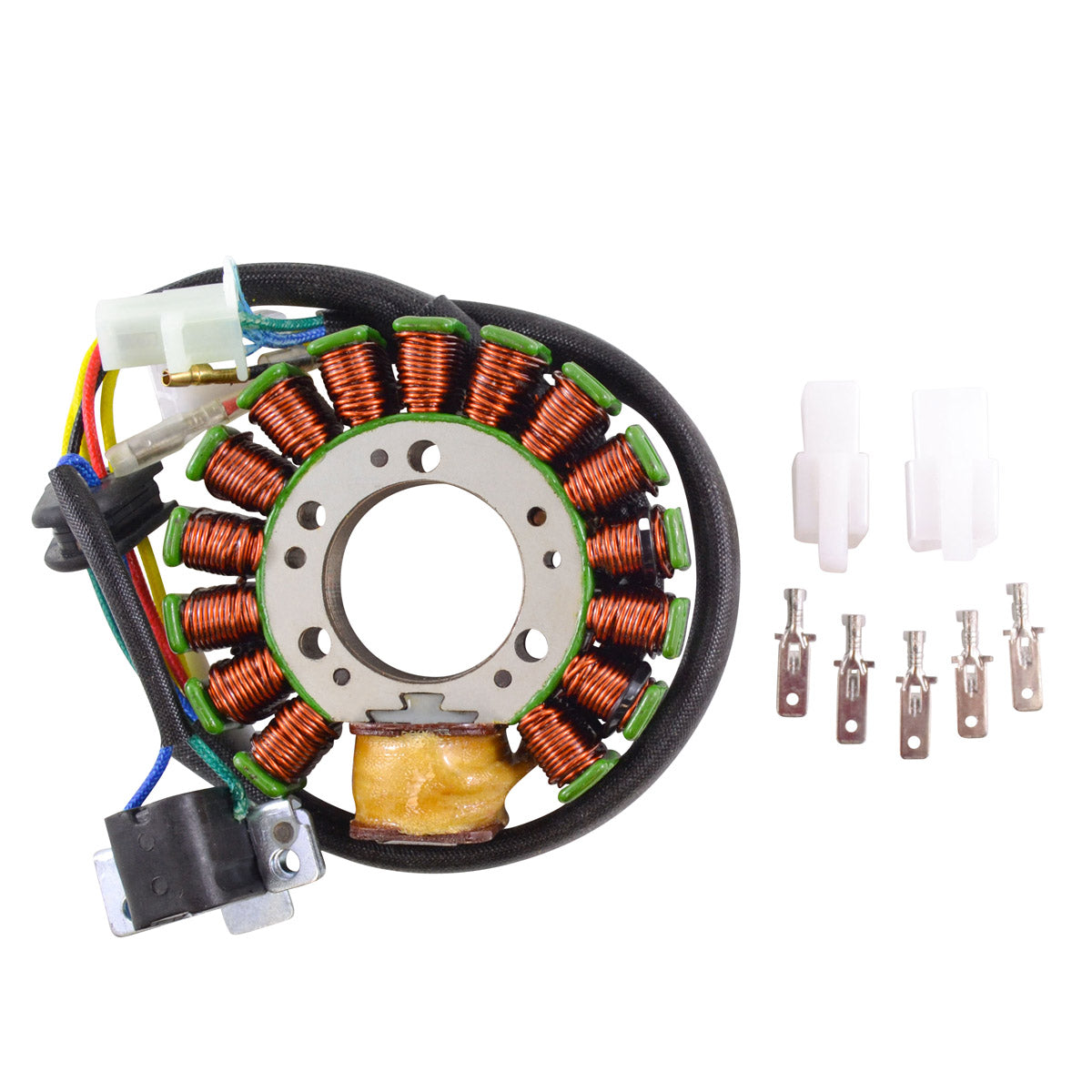

RMStator Stator RM01412
Customer Ratings
RMStator Stator RM01412
RMStator Stator RM01412
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Stator
Dimensions :
Interior diameter : 35mm
Exterior diameter : 93mm
Thickness : 12mm
Length of wires stator to plug : 400mm
Length of pickup coil's wire to plug : 380mm
Other specifications :
Number of wires : 7
Number of plugs : 4
Number of pins : 7
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.2 ohms +/-20%
Pickup : Green to Blue = 425 ohms +/-20%
Source : Brown to Black = 330 ohms +/-20%
Pick-Up Coil
Dimensions:
Bracket center to center: 30mm
Wires length : 380mm
Other specifications:
Wire to wire resistance:
Blue to Green = 425 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01412
Fitment:
- 1991-2001 Suzuki Quadrunner 160 LT160 2x4
- 1989-1993 Suzuki Quadrunner 160 LT160E 2x4
Note: Image is for reference only, actual product may vary slightly.
