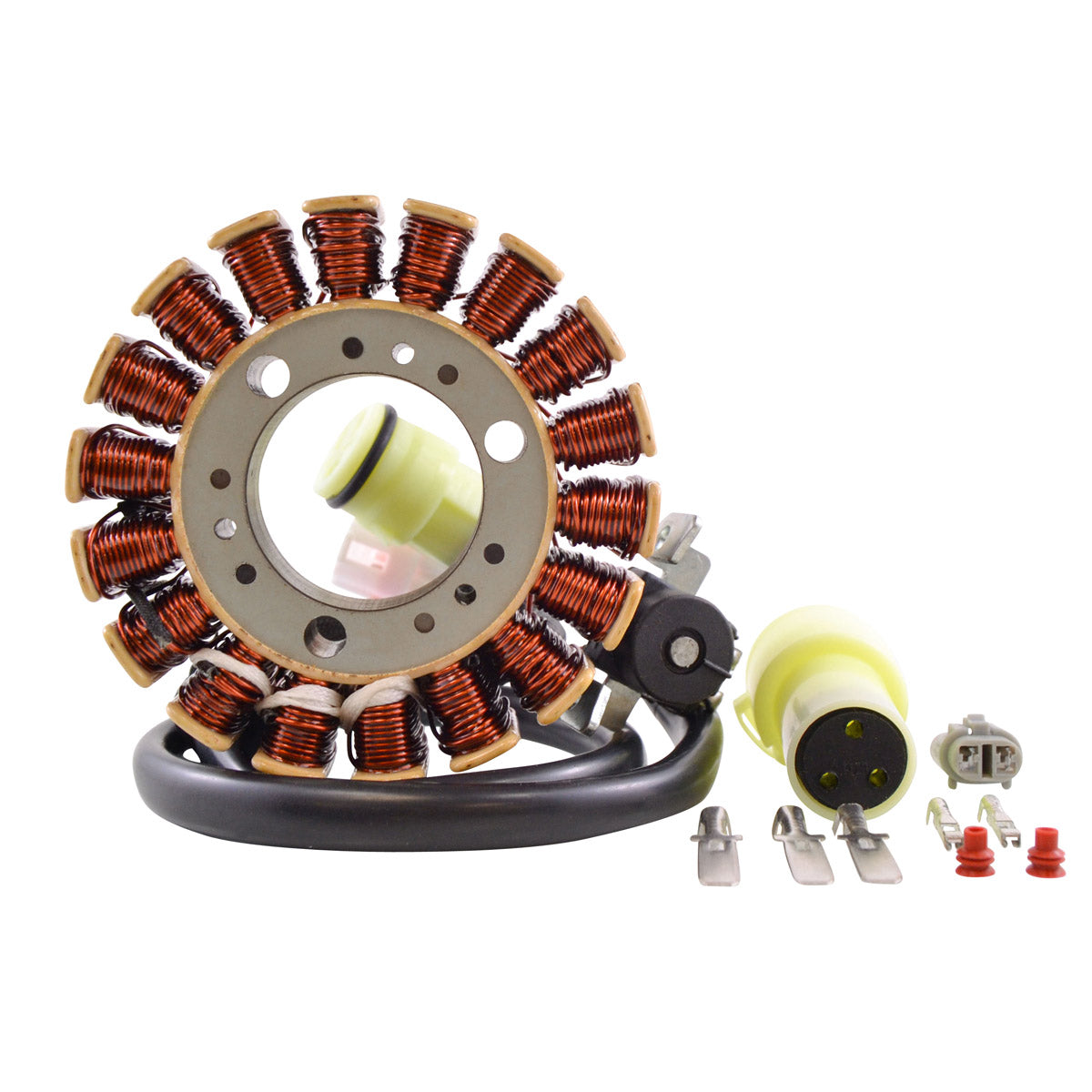

RMStator Generator Stator RM01419

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 36mm
Exterior diameter : 93mm
Thickness : 18mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 425mm
Length of pickup coil's wire to grommet : 40mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : White between each White = 0.4ohms +/-20%
Pickup : White to Pink = 290ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01419

Fitment:

• 2004-2013 Yamaha Grizzly 125 YFM125G

Note: Image is for reference only, actual product may vary slightly.
